Open Frame Monitor - 4K UHD (3840 x 2160) Resolution

The PMW70XX 4K open frame monitor series is designed to meet professional and environmental demands. With a display 4 times the resolution of FHD, this 4K monitor series achieves superior picture quality with exceptional image clarity and sharpness. The monitors feature an open frame enclosure that can be easily integrated into any environment and have many configurable and embedded module options such as HDMI Decoder & Extenders, 3G input, and touch screen technology. Available in sizes from 13.3" to 55", the PMW70XX has reduced energy and a fanless architecture that provides professional-use durability and around-the-clock operation.

Open Frame Monitor - 4K UHD (3840 x 2160) Resolution

4K UHD open frame monitors supporting 3840 x 2160 resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, rear VESA mounting holes, and an open frame metal enclosure designed industrial monitoring applications, kiosks, and surveillance systems.

- 13.3" 4K UHD open frame LCD monitor
- Supports 3840 x 2160 native resolution
- DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Option for 3G-SDI input or MCS multi-display control
- Option for Resistive or PCAP touch screen - USB
- Option for video decoding capability up to 1080P
- PIP sub-screen & PBP dual-screen viewing efficiency
- Universal & VESA (100 x 100mm) mount ready
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
PMW7013

$804.00
- 15.6" 4K UHD open frame LCD monitor
- Supports 3840 x 2160 native resolution
- DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Option for 3G-SDI input or MCS multi-display control
- Option for Resistive or PCAP touch screen - USB
- Option for video decoding capability up to 1080P
- PIP sub-screen & PBP dual-screen viewing efficiency
- Universal & VESA (100 x 100mm) mount ready
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
PMW7015

$978.00
- 17.3" 4K UHD open frame LCD monitor
- Supports 3840 x 2160 native resolution
- DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Option for 3G-SDI input or MCS multi-display control
- Option for Resistive or PCAP touch screen - USB
- Option for video decoding capability up to 1080P
- PIP sub-screen & PBP dual-screen viewing efficiency
- Universal & VESA (100 x 100mm) mount ready
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
PMW7017

$1,530.00

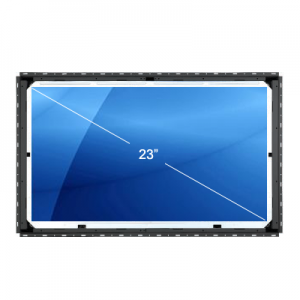

- 23" 4K UHD open frame LCD monitor
- Supports 3840 x 2160 native resolution
- DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Option for 3G-SDI input or MCS multi-display control
- Option for Resistive or PCAP touch screen - USB
- Option for video decoding capability up to 1080P
- PIP sub-screen & PBP dual-screen viewing efficiency
- Universal & VESA (100 x 100mm) mount ready
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
PMW7023

$1,718.00

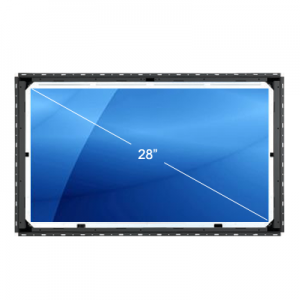

- 28" 4K UHD open frame LCD monitor
- Supports 3840 x 2160 native resolution
- DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Option for 3G-SDI input or MCS multi-display control
- Option for video decoding capability up to 1080P
- PIP sub-screen & PBP dual-screen viewing efficiency
- Universal & VESA (100 x 100mm) mount ready
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
PMW7028

$1,470.00
- 31.5" 4K UHD open frame LCD monitor
- Supports 3840 x 2160 native resolution
- DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Option for 3G-SDI input or MCS multi-display control
- Option for Projected Capacitive touch screen - USB
- Option for video decoding capability up to 1080P
- PIP sub-screen & PBP dual-screen viewing efficiency
- Universal & VESA (300 x 300mm) mount ready
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
PMW7032

$1,638.00

REFERENCES
Open Frame Monitors: Customized Mounting Solutions
An open frame monitor consists of an LCD monitor integrated into a supporting structure without an enclosure or bezel. Open frame monitors can be easily configured to satisfy specific requirements and offers options for various mounting solutions and touch screen displays. These monitors ideal for a wide range of applications including rugged outdoor environments, industrial applications, kiosks, cabinet displays, and custom-built machines.

Everything You Need to Know About 4K Display
What is 4K resolution? 4K resolution, also known as 4K Ultra HD or 4K UHD, has a resolution of 3,840 horizontal pixels and 2,160 vertical pixels, offering more pixels on the screen. The pixels of the 4K display create images that are crisper and capable of showing more details than compared to the standard HD displays. With HD 1080P screens, the images only offer a 1920 x 1080 resolution. To compare 4K with 1080p, with all other things being equal, 4K displays provide capable of producing much sharper and detailed images. Moreover, when editing photos in a 4K display, it will not cause the photos to scale. 4K displays offer unscaled images which benefit many creative professionals in the workplace and is excellent for industrial monitoring applications.
