SUN compatible rackmount drawer with a 20.1 inch 1152 x 900 (Direct) / 1600 x 1200 (Native) LCD monitor and VGA + DVI-D video input in a 1U 25.6" short-depth rackmount drawer. Option for HDMI / Audio / 3G-SDI input, Resistive type touch screen, and DC power input.

Skip to the beginning of the images gallery

RPS1190

RPS1200

1U high 25.6 inch short-depth rackmount drawer
20.1 inch 1600 x 1200 industrial LCD monitor
Supports 1152 x 900 SUN Micro resolution
VGA + DVI-D video input
Option for HDMI or 3G-SDI input
Option for Resistive type touch screen
External 100/240 auto-sensing AC power input
Option for 12V / 24V / 48V / 125V DC power input

Availability: In stock

SKU

RPS1200

20.1" 1152 x 900 (Direct) / 1600 x 1200 (Native) rackmount LCD monitor with VGA + DVI-D video input in a 1U high 25.6" short-depth rackmount drawer.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 20.1 inch
Resolution: 1152 x 900 (Direct) / 1600 x 1200 (Native)
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Viewing Angle (H/V): 178° x 178°
Display Area (mm): 408H x 306V
Colors: 16.7M
Backlight: CCFL
MTBF (hrs): 45,000

Touch Screen (Option): Option for Resistive type touch screen

Video Input: VGA + DVI-D video input
Option for HDMI / Audio / 3G-SDI input

Front Panel Control: Power on/off switch
OSD (on-screen control)

On Screen Control: Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness

Drawer: 2-position lock for system security
25.6" short depth rackmount drawer
Mounting Distance: 26 ~ 35 inch (660 ~890 mm)

Color: Black (RAL 9005)

Power supply: Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 45W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input

Weight: 29.7 lb / 13.5 kg

Dimension: 17.3"(W) x 25.6"(D) x 1.73"(H)

Environmental: Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Safety: CE, FCC

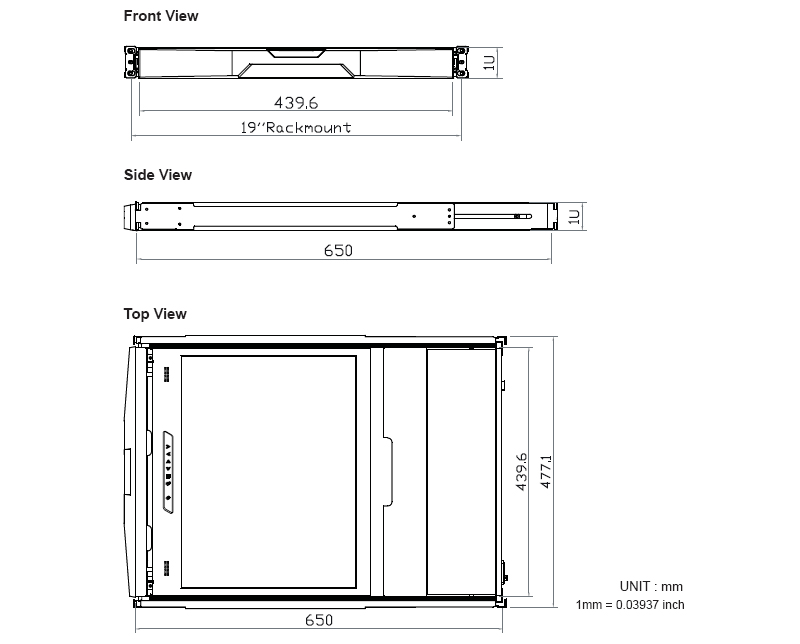

Dimensions

Order Info

RPS1200:
20.1 inch 1152 x 900 (Direct) / 1600 x 1200 (Native) industrial LCD monitor, VGA + DVI-D video input, 100/240VAC power input, 1U high 25.6 inch short-depth rackmount monitor drawer, Black color. Option for HDMI / Audio / 3G-SDI input, Resistive type touch screen, and DC power input.

Downloads

Document

Description

Download Link

RPS1200-SP(V1-2).pdf

Spec Sheet

RPS1200-UM(V1-2).pdf

User Manual

Configure Now

PRODUCT DESCRIPTION
The 20.1-inch industrial monitor supported both 1600 x 1200 and 1152 x 900 (Sun Micro native resolution) display resolution. The flicker-free monitor comes with standard VGA and DVI-D connector on the back of the rack mount drawer for your rackmount server connection. The OSD (on-screen display) function lets you adjust the rack mount monitor for the best view, All the OSD membrane buttons are located on the front of the monitor for easy access. The monitor can be tilted to a 90-degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is back to its resting position. This allows it to extend the LCD monitor's life. The low profile 1U high rack mount drawer saves rack cabinet space. The ball-bearing slide rail is mounted on each side of the drawer allows you to pull out the drawer from the 19" rack cabinet. The key-locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The industrial monitor comes with a standard 6 foot VGA and DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. The industrial monitor comes with a 110/220VAC auto-switching power input. The monitor drawer is ready to mount into a standard 19-inch cabinet and the rear mounting bracket can be extended up to 600mm depth rack cabinet.
