SUN compatible rackmount drawer with a 17 inch 1152 x 900 (Direct) / 1280 x 1024 (Native) and VGA + DVI-D video input in a 1U 19.7" short-depth rackmount drawer. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.

Skip to the beginning of the images gallery

RPS1190

RPS1170

1U 19.7 inch short-depth rackmount drawer
17 inch 1280 x 1024 industrial LCD monitor
Supports 1152 x 900 SUN Micro resolution
VGA + DVI-D video input
Option for HDMI / BNC / Audio / 3G-SDI input
Option for Resistive or Projected Capacitive type touch screen
External 100/240 auto-sensing AC power input
Option for 12V / 24V / 48V / 125V DC power input

Availability: In stock

SKU

RPS1170

17" 1152 x 900 (Direct) / 1280 x 1024 (Native) rackmount LCD monitor with VGA + DVI-D video input in a 1U high 19.7" short-depth rackmount drawer.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 17 inch
Resolution: 1152 x 900 (Direct) / 1280 x 1024 (Native)
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Display Area (mm): 337.92H x 270.33V
Colors: 16.7M
Backlight: LED
MTBF (hrs): 30,000

Touch Screen (Option): Option for Resistive or Projected Capacitive type touch screen

Video Input: VGA + DVI-D video input
Option for HDMI / BNC / Audio / 3G-SDI input

Front panel control: Power on/off switch
OSD (on screen control)

On screen control: Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness

Drawer: 2-position lock for system security
19.7" Short depth rackmount drawer
Mounting Distance: 20.1 ~ 29.1 inch (510 ~ 740mm)

Power Supply: Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 22 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input

Color: Black (RAL 9005)

Weight: 23.1 lb / 10.5 kg

Dimension: 17.4"(W) x 19.7"(D) x 1.73"(H)
*Casing depth will increase if DC power option is selected

Environmental: Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Safety: CE, FCC

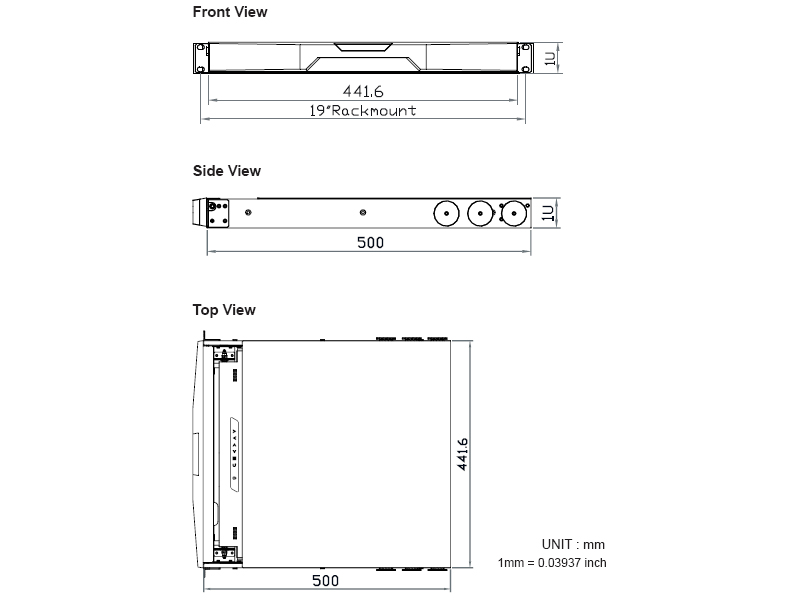

Dimensions

Order Info

RPS1170:
17 inch 1152 x 900 (Direct) / 1280 x 1024 (Native) industrial LCD monitor, VGA + DVI-D video input, 100/240VAC power input, 1U high 19.7 inch short-depth rackmount monitor drawer, Black color. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.

Downloads

Document

Description

Download Link

RPS1170-SP(V1-2).pdf

Spec Sheet

RPS1170-INST.pdf

Installation Guide

RPS1170-UM(V1-2).pdf

User Manual

Configure Now

PRODUCT DESCRIPTION
The 17-inch industrial monitor supported both 1280 x 1024 (Active Resolution) and 1152 x 900 (Sun Micro Native Resolution) display resolution under the auto-switch model. The flicker-free LCD monitor comes with standard VGA and DVI-D connector on the back of the rackmount drawer for your rackmount server connection. Option for HDMI / BNC / Audio / 3G-SDI input. The OSD (on-screen display) function lets you adjust the rackmount monitor for the best viewing. All the OSD membrane buttons are located on the front of the monitor for easy access. The monitor can be tilted to a 90-degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is back to its resting position. This allows it to extend the LCD monitor's life. The low profile 1U high rackmount drawer saves rack cabinet space. The ball-bearing slide rail is mounted on each side of the drawer allows you to pull out the drawer from the 19-inch cabinet. The Key-locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The monitor comes with a standard 6 foot VGA / DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. The power supply includes a 110/220VAC auto-switching power input. Option for 12V / 24V / 48V / 125V DC power input. The monitor drawer is ready to mount into a standard 19-inch cabinet and the rear mounting bracket can be extended up to 600mm depth rack cabinet.
