High brightness sunlight-readable rackmount monitor drawer comes with a 17.3 inch 1920 x 1080 Full HD industrial LCD monitor, 1000-nit high brightness display, VGA + DVI-D video input, and a 1U high 18.9 inch short-depth rackmount drawer. Option for HDMI + Audio or 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.
RPH1173
- 1U high 18.9 inch depth rackmount drawer
- 17.3 inch 1920 x 1080 Full HD industrial LCD monitor
- 1000-nit high brightness display
- VGA + DVI-D video input
- Option for HDMI + Audio or 3G-SDI input
- Option for Resistive or Projected Capacitive type touch screen
- External 100/240 auto-sensing AC power input
- Option for 12V / 24V / 48V / 125V DC power input
Availability:
In stock
SKU
RPH1173
17.3" 1920 x 1080 Full HD LCD monitor drawer with a 1000-nit high brightness display and VGA + DVI-D video input in a 1U high 18.9 inch depth rackmount drawer.
- Material
- Heavy-duty steel
- LCD Panel
- Size: 17.3 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.) : 600:1
Viewing Angle (H/V): 160° x 140°
Display Area (mm): 381.888H x 214.812V
Colors: 16.7M
Backlight: LED
MTBF (hrs): 50,000
- Video Input
- VGA + DVI-D video input
Option for HDMI + Audio or 3G-SDI input
- Touch Screen (Option)
- Option for Resistive or Projected Capacitive type touch screen
- Front Panel Controls
- Power on/off switch
OSD (on-screen display)
- Drawer Design
- Solid bearing slide rails
2-position lock for security system
Mounting Distance: 19.3 ~ 28.3 inch (490 ~ 720 mm)
- Power Supply
- Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 39 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
- Weight
- 24.2 lb / 11 kg
- Dimension

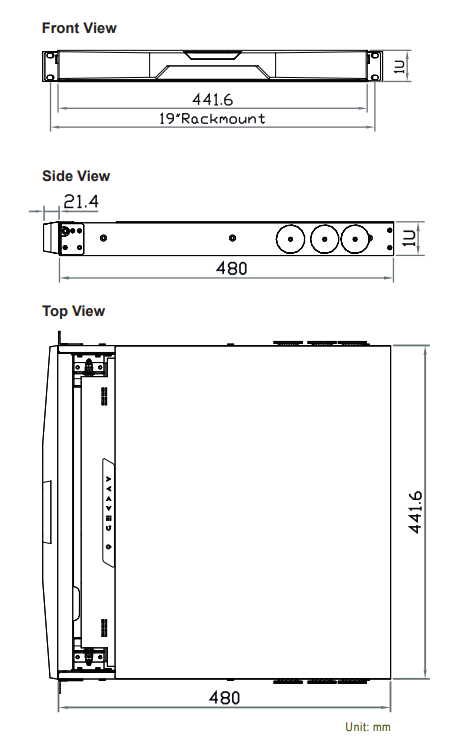

- 17.4"(W) x 18.9"(D) x 1.73"(H)
*Casing depth will increase if video input, touch screen, or DC power option is selected
- Environmental
- Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
- Safety
- CE, FCC
RPH1173:
17.3 inch 1920 x 1080 Full HD industrial LCD monitor, 1000-nit high brightness display, VGA + DVI-D video input, 100/240VAC power input, 1U high 18.9 inch short-depth rackmount monitor drawer, Black color. Option for HDMI + Audio or 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.
Document
Description
Download Link
RPH1173-SP.pdfSpec Sheet
RPH1173-UM.pdfUser Manual
