The RP2117 is a 16.2" WUXGA rackmount LCD monitor drawer supporting 1920 x 1200 native resolution, VGA + HDMI + DVI-D video input, and a 100/240VAC power input in a 1U high 18.1" (460mm) short-depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings. Option for Resistive touch screen, 3G-SDI / Speaker input, and DC power input.
Loading...
RP3117 1U 17.3

RP3117

RP4117 1U 17.3

RP4117

RP2117

  • 1U 16.2" WUXGA rackmount LCD monitor drawer
  • Supports 1920 x 1200 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI +  DVI-D video input
  • Option for Speaker or 3G-SDI input
  • Option for Resistive 1-pt touch screen
  • 18.1" (460mm) short-depth drawer design
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,827.00
Availability: In stock
SKU
RP2117
Email
16.2" WUXGA 1920 x 1200 WUXGA industrial LCD monitor VGA + HDMI + DVI-D video input in a 1U high 18.9" depth rackmount monitor drawer.
Material
Heavy-duty steel
LCD Panel
Size: 16.2 inch
Max. Resolution: 1920 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° X 178°
Response Time (ms): 30
Dot Pitch (mm): 0.191
Display Area (mm): 343.8H x 214.9V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 20,000
Video input
Standard: VGA + HDMI + DVI-D video input
Option: Speaker or 3G-SDI input
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Front panel control
Power on/off switch
OSD (on screen control)
On screen control
Auto-adjustment for contrast, balance, H-position, V-position, phase, brightness
Mounting Distance
Display Drawer: 19.3 ~ 28.3 inch (490 ~ 720 mm)
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 34W, Standby 4W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
24.2 lb / 11 kg

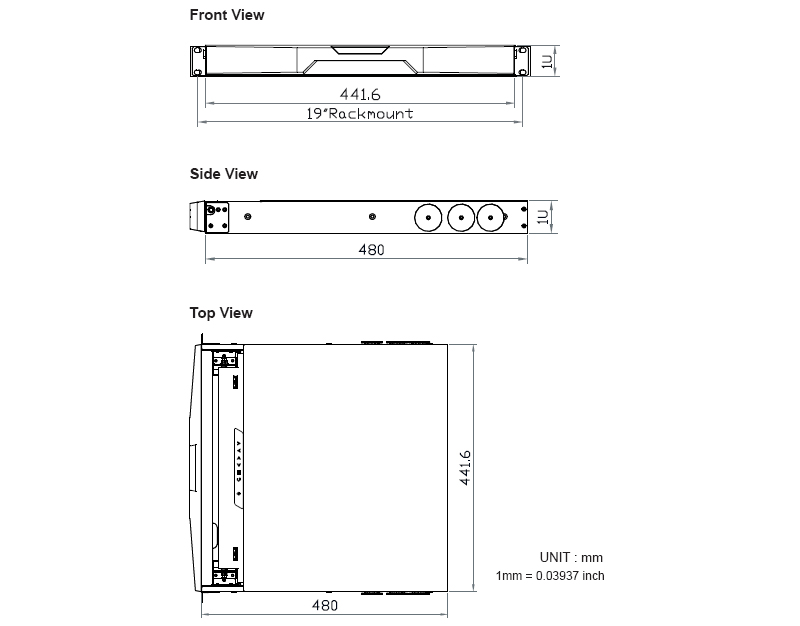

Dimension
Product: 17.4"(W) x 18.9"(D) x 1.73"(H)
Packing: 23.1"(W) x 29.8"(D) x 4.7"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model part codes
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5-90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RP2117:
16.2 inch 1920 x 1200 WUXGA industrial LCD monitor, VGA + HDMI + DVI-D video input, front OSD functions, 100/240VAC power input, 1U high 18.9 inch depth rackmount drawer, Black color.

Document
Description
Download Link
file iconRP2117-SP(V1-2).pdf
Spec Sheet
file iconRP2117-UM(V1-2).pdf
User Manual
  • RP2117
    1U 16.2" WUXGA rackmount LCD monitor drawer
    Supports 1920 x 1200 native resolution
    Front OSD (on-screen display) function
    VGA + HDMI + DVI-D video input
    Option for 3G/HD/SD-SDI input
    Option for Resistive 1-pt touch screen
    18.1" (460mm) short-depth drawer design
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,827.00
RP2117
$1,827.00

PRODUCT DESCRIPTION
RP2117 is a 16.2" industrial monitor featuring a 1920 x 1200 widescreen display resolution and LED blacklight low power consumption technology. This flicker-free LCD monitor comes with a standard VGA + HDMI + DVI-D connector on the back of the rack mount drawer for your rackmount server connection. The OSD (on-screen display control) function lets you adjust the rack mount monitor for the best view, All the OSD buttons are located on the front of the monitor for easy access and adjustment. The monitor can be tilted to a 90-degree horizontal angle for better viewing. The auto-shutoff function enables whenever the monitor drawer is back to its resting position. This allows it to extend the LCD monitor's life. Option for Speaker or 3G-SDI input. The low-profile 1U high rack mount drawer saves the rack cabinet space. The onboard ball-bearing slide rail is mounted on each side of the drawer allowing you to pull out the drawer from the 19-inch cabinet. The 2-position lock is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The industrial monitor comes with a standard 6-foot VGA / DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. The monitor drawer also comes with a 100/240VAC auto-switching power input. Option for 12V / 24V / 48V / 125V DC power input. RP2117 is ready to mount into a standard 19-inch cabinet and the rear mounting bracket can be extended up to 600mm depth rack cabinet.
