The RP1205 is a 20.1" rackmount LCD monitor drawer supporting 1600 x 1200 native resolution, VGA + HDMI video input, and a 100/240VAC power input in a 1U high 25.6" (650mm) depth rack drawer. The monitor drawer features an LED touch on-screen display (OSD), providing users with a convenient way to the device settings.
Loading...
RP1195 1U 19

RP1195

RP3117 1U 17.3

RP3117

RP1205

  • 1U 20.1" rackmount LCD monitor drawer
  • Supports 1600 x 1200 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
  • Option for Resistive 1-pt touch screen
  • 25.6" (650mm) depth drawer design
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,576.00
Availability: In stock
SKU
RP1205
Email
20.1" 1600 x 1200 rackmount LCD monitor drawer with VGA + HDMI video input and 100/240VAC power input in a 1U high 25.6" depth monitor drawer.
Material
Heavy-duty steel
LCD Panel
Size: 20.1 inch
Resolution: 1600 x 1200
Brightness (cd/m²): 300
Contrast Ratio: 800:1
Colors: 16.7 M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.255
Display Area (mm): 408H x 306V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: CCFL
MTBF (hrs): 45,000
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Video Input
Standard: VGA + HDMI video input
Option: DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
Front Panel Controls
Power on/off switch
OSD (on-screen control)
On Screen Control
Auto-Adjustment for contrast, balance, H-position, V-position, phase, brightness
Mounting Distance
Display Drawer: 26 ~ 35 inch (660 ~ 890 mm)
Color
Black (RAL 9005)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 45W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
29.7 lb / 13.5 kg

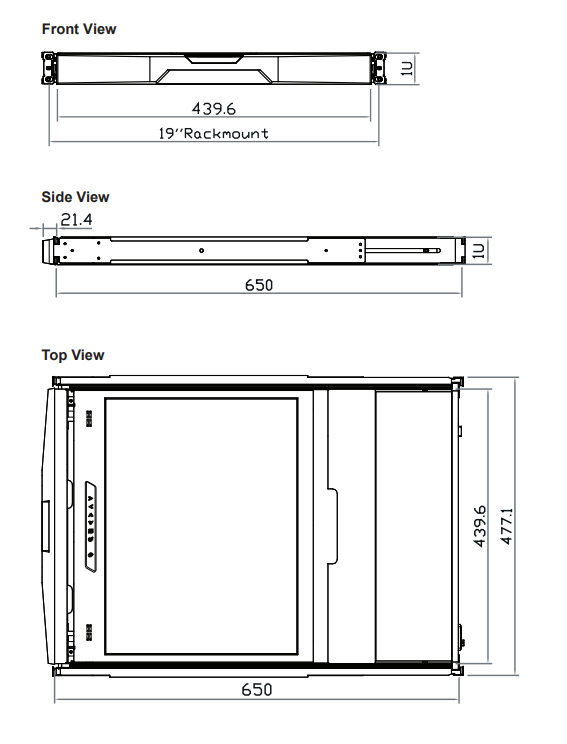

Dimension
Product: 17.3"(W) x 25.6"(D) x 1.73"(H)
Packing: 23.4"(W) x 32.1"(D) x 5.5"(H)
Environmental
Operation Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5-90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RP1205:
20.1 inch 1600 x 1200 industrial LCD monitor, VGA + HDMI video input, 100/240VAC power input, 1U high 25.6 inch depth rackmount monitor drawer, Black color.

Document
Description
Download Link
file iconRP1205-SP(V1-2).pdf
Spec Sheet
file iconRP1205-UM(V1-2).pdf
User Manual
  • RP1205
    1U 20.1" rackmount LCD monitor drawer
    Supports 1600 x 1200 native resolution
    Front OSD (on-screen display) function
    VGA + HDMI video input
    Option for DVI-D, Audio, BNC, Speaker, or 3G-SDI input
    Option for Resistive 1-pt touch screen
    25.6" (650mm) depth drawer design
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,576.00
RP1205
$1,576.00

PRODUCT DESCRIPTION
The 20.1-inch industrial monitor offered 1600 x 1200 display resolution and VGA with HDMI connector on the back of the rack mount drawer for your rackmount server connection. The OSD (on-screen display control) function lets you adjust the rack mount monitor for the best viewing, All the OSD membrane buttons are located on the front of the monitor for easy access and adjustment. The monitor can be tilted to a 90-degree horizontal angle for better viewing. The auto-shutoff function enables the monitor drawer to go back to its resting position that lows to extend the LCD monitor's life. Option for DVI-D / BNC / Audio / Speaker / SDI input. The low profile 1U high rackmount drawer saves rack cabinet space. The onboard ball-bearing slide rail is mounted on each side of the drawer allows you to pull out the drawer from the 19-inch rack cabinet. The key-locker or thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor is not in use. The industrial monitor comes with a standard 6 foot VGA / DVI cable. Option for 10 feet, 15 feet, and 25 feet cable is available. The monitor drawer offers a 100/240VAC auto-switching power input. The monitor drawer is ready to mount into a standard 19-inch cabinet and the rear mounting bracket can be extended up to 650mm depth rack cabinet.
