The RMW9240 is a 24" WUXGA rackmount LCD monitor supporting 1920 x 1200 native resolution, VGA + DVI-D + HDMI video input, and 100/240VAC power input in a 9U high rack enclosure designed for a standard 19" rack cabinet. The rack display features PIP sub-screen and PBP dual-screen viewing efficiency and is built to last with an MTBF (Mean-Time-Between-Failure) of 30,000 hours. Options are available for BNC, MCS, Audio, Speaker, or 3G-SDI input, Resistive 1-pt touch screen with USB port, and DC power input.
Loading...
9U 23.8

RM9230

RMW9240

  • 9U 24" WUXGA rackmount LCD monitor
  • Supports 1920 x 1200 native resolution
  • Front OSD (on-screen display) function
  • VGA + DVI-D + HDMI video input
  • Option for BNC, MCS, Audio, Speaker, or 3G-SDI input
  • Option for Resistive 1-pt touch screen - USB
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,547.00
Availability: In stock
SKU
RMW9240
Email
24" WUXGA rackmount LCD monitor supporting 1920 x 1200 native resolution, VGA + DVI-D + HDMI input, and a 100/240VAC power input in a 9U high rack enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 24.1 inch
Max Resolution: 1920 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.) : 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 14
Dot Pitch (mm): 0.27
Display Area (mm): 518.4H x 324V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Video input
Standard: VGA + DVI-D + HDMI video input
Option: BNC, MCS, Audio, Speaker, or 3G-SD
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 x DVI-D + 1 x HDMI
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 33 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
9U high rackmount enclosure
VESA (100 x 100mm) mount ready
Color
Black front panel (RAL 9005)
Weight
25.1 lb / 11.4 kg

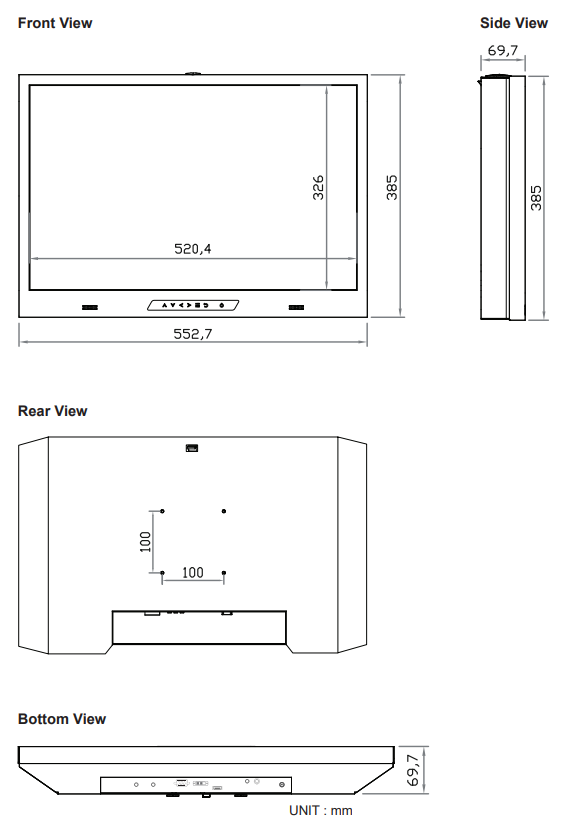

Dimension
Product: 21.8"(W) x 2.8"(D) x 15.2"(H)
Packing: 20.9"(W) x 25.4"(D) x 6.1"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RMW9240:
9U 24" rackmount LCD monitor, 1920 X 1200 WUXGA native resolution, VGA + DVI-D + HDMI video input, 100/240VAC power input, Black color.

Document
Description
Download Link
file iconRMW9240-SP.pdf
Spec Sheet
file iconRMW9240-UM.pdf
User Manual
  • RMW9240
    9U 24" WUXGA rackmount LCD monitor
    Supports 1920 x 1200 native resolution
    Front OSD (on-screen display) function
    VGA + DVI-D + HDMI video input
    Option for BNC, MCS, Audio, Speaker, or 3G-SD input
    Option for Resistive 1-pt touch screen - USB
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,547.00
RMW9240
$1,547.00
