The RMW7215 is a 21.5" Full HD rugged military display supporting 1920 x 1080 display resolution and VGA + DVI input in a 9U high rackmount enclosure. Designed for harsh environments and military applications, it features an IP65-rated front bezel, a wide operating temperature range from -10°C to 60°C, and MIL-STD-810G compliance for vibration, shock, and humidity. The RMW7215 features a modularized design that provides flexible configurations including touch screen technology, ITO glass protection, 1000-nits high brightness display, light sensor, additional video inputs, and D38999 connector.
Loading...
RMW7176 8U 17.3

RMW7176

RMW7215

  • 9U 21.5" rugged military rackmount LCD monitor
  • Supports 1920 x 1080 (FHD) pixel resolution
  • Designed for a standard 22" wide rack cabinet
  • VGA + DVI input, option for DP, HDMI, BNC, or Speaker-Audio
  • AR glass, option for ITO or Resistive / Capacitive touch screen
  • Front IP65-rated bezel for protection against dust and water
  • MIL-STD-810G compliance for vibration, shock, humidity
  • Extended working temperature from -10°C to 60°C
  • DC power input with external AC power adapter
$2,485.00
Availability: In stock
SKU
RMW7215
Email

21.5" FHD military-grade rackmount monitor with VGA + DVI input, -10°C to 60°C wide operating temperature, and MIL-STD-810G compliance in a 9U high rackmount enclosure.

Material
Heavy-duty steel
LCD Panel
Size: 21.5 inch
Resolution: 1920 x 1080 @ 60Hz
Brightness (cd/m²): 250-nits, option for 1000-nits high brightness
Contrast Ratio (typ.): 1000:1
Active Area: 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.248(H) x 0.248(V)
Viewing Angle: -85 ~ 85 (H); -80 ~ 80 (V)
Max Colors: 16.7M (8 bits + FRC)
LCD Protection /
Touch Screen (Option)
AR protective glass (standard)
Option for ITO glass with no touch
Option for Resistive or Capacitive touch screen with no AR or ITO glass
Light Sensor (Option)
Dimmer light sensor
Optical Bonding (Option)
Optical bonding
Video Input
VGA + DVI video input
Option for DP, HDMI, BNC, or Speaker-Audio input
Front Panel Controls
Power on/off button
7-key OSD buttons
OSD Menu Control
OSD control for contrast, color, position, auto-adjustment, factory settings, PIP between signal inputs
Mounting
9U high rackmount monitor for a standard 22 inch wide rack cabinet
Connectors
1 x VGA (D-sub 15-pin), Sync on green (SOG) supported
1 x DVI input
1 x DP input (optional)
1 x HDMI input (optional)
1 x BNC input (optional)
1 x Speaker-Audio input (optional)
1 x 3-pin D38999 power connector w/ power adapter
Power Supply
DC power with external AC power adapter
Power Consumption: 40W typical, normal operation
Option for D38999 9 to 36V DC power input or D38999 AC power input
Option for MIL-STD-461E power EMI filter
Weight
31-33 lb / 14-15 kg

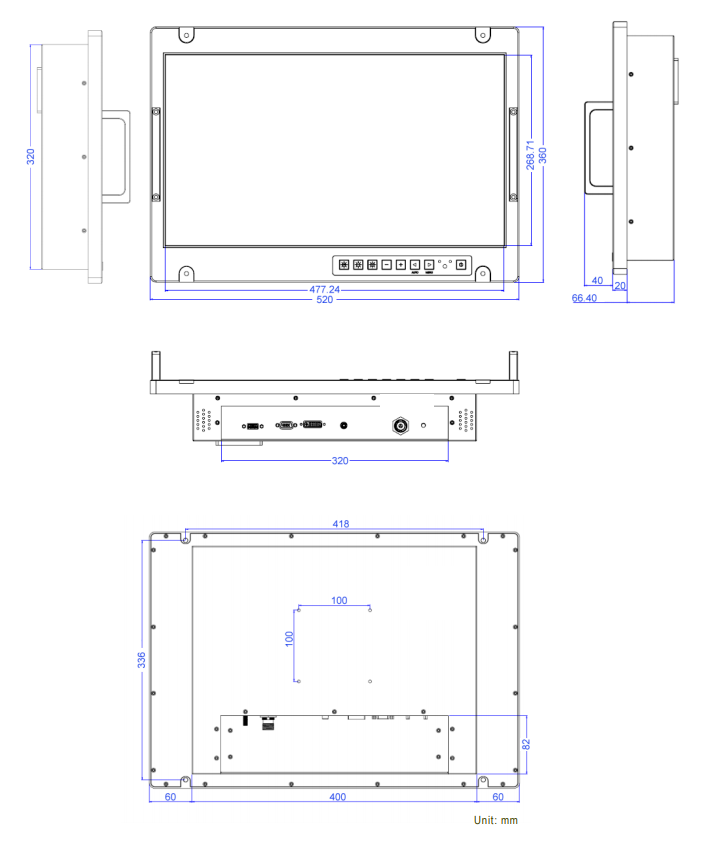

Dimension
20.47"(W) x 2.38"(D) x 14.17"(H)
Environmental
Operating Temperature: -10°C to 60°C
Option for -20°C to 70°C wide operating temperature
Storage Temperature: -30°C to 70°C
Operating Humidity: 5% to 95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3 compliant
Shock: MIL-STD-810G Method 516.6 compliant
Humidity: MIL-STD-810G Method 507.5-7 compliant
IP Level: Front IP65 rated bezel
Compliance
FCC, CE, RoHS

RMW7215:
21.5" rugged military rackmount LCD monitor, 1920 x 1080 FHD resolution, VGA + DVI video input, AR glass, IP65 rated front bezel, -10°C to 60°C wide operating temperature, MIL-STD-810G compliance,

Lead Time: 12~14 weeks

Document
Description
Download Link
file iconRMW7215-SP.pdf
Spec Sheet
  • RMW7215
    9U 21.5" rugged military rackmount LCD monitor
    Supports 1920 x 1080 (FHD) pixel resolution
    Designed for a standard 22" wide rack cabinet
    VGA + DVI input, option for DP, HDMI, BNC, or Speaker-Audio
    AR glass, option for ITO or Resistive / Capacitive touch screen
    Front IP65-rated bezel for protection against dust and water
    MIL-STD-810G compliance for vibration, shock, humidity
    Extended working temperature from -10°C to 60°C
    DC power input with external AC power adapter
    Starting at:
    $2,485.00
RMW7215
$2,485.00

PRODUCT DESCRIPTION
RMW7215 is a  21.5" 1920 x 1080 Full HD military-grade rackmount monitor designed for military applications and harsh environments. The 21.5" rackmount monitor is built to be in compliance with military standards MIL-STD-810G and supports a wide operating temperature of -10°C to 60°C.To make operation easier, RMW7215 is equipped with front OSD functions for operational convenience. The OSD menu control allows users to adjust the contrast, color, position, auto-adjustment, factory settings, and PIP between signal inputs. In addition, RMW7215 also offers VGA and DVI-D video input signals and the option for 1 x HDMI or 5 x RGBHV BNC input. RMW7215 features an IP65-rated front bezel and optional resistive type touchscreen to meet the industry's environment and requirements. The IP65-rated front bezel is dust-tight and provides protection against jets of water, allowing the monitor to perform well under harsh environments. The rackmount monitor comes in a rugged 9U high rackmount enclosure designed for a standard 22-inch wide rack cabinet. Engineered to be in compliance with military standards, RMW7215 is designed to satisfy MIL-STD810G environmental testing compliance for industrial and military applications.
