The RMW7180 is an 8U high 17.3" rugged military rackmount LCD display supporting Full HD (1920 X 1080), AR protective glass, VGA + DVI video input. Built for rugged harsh environments, the RMW7180 features -15°C to 55°C extended working temperature range and MIL-STD-810G compliance for vibration, shock, and humidity.
Loading...
7U 18.5

RMW7196

RMW7176 8U 17.3

RMW7176

RMW7180

  • 8U 17.3" rugged military rackmount LCD monitor
  • Supports 1920 x 1080 (Full HD) pixel resolution
  • 400-nit brightness, option for 1000-nit high brightness
  • VGA + DVI video input, option for DP, HDMI, or BNC input
  • AR glass, option for ITO or Resistive / Capacitive touch screen
  • Option for dimming light sensor and optical bond
  • MIL-STD-810G compliance for vibration, shock, humidity
  • Extended working temperature range from -15°C to 55°C
  • DC power input with external AC power adapter
$1,350.00
Availability: In stock
SKU
RMW7180
Email
17.3 inch 1920 x 1080 FHD military-grade LCD monitor with VGA + DVI video input in an 8U high rackmount enclosure with MIL-STD-810G wide working temperature.
Material
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 400, option for 1000-nit high brightness
Contrast Ratio (typ.) : 600:1
Viewing Angle (H/V): 160° x 140°
Active Area (mm): 381.89H x 214.81V
Pixel Pitch (mm): 0.1989H x 0.1989V
Colors: 16.7M, 8-bit
Backlight: LED
LCD Protection /
Touch Screen (Option)
AR protective glass (standard)
Option for ITO glass with no touch
Option for Resistive type touch screen with no AR or ITO glass
Option for Capacitive type touch screen with no AR or ITO glass
Video Input
VGA + DVI video input
Option for DP, HDMI, BNC, or Speaker-Audio input
Front OSD Buttons
OSD Control: 1 x Power, 1 x Enter (Menu), 1 x Space, 1 x Up, 1 x Down for OSD control
Keyboard FN Keys: ESC, F1, F2, 1~5 mapping to keyboard (programmable to other keys)
Light Sensor (Option)
Dimmer light sensor
Optical Bonding (Option)
Optical bonding
Connectors
1 x VGA + 1 x DVI
1 x DP (option)
1 x HDMI (option)
1 x BNC (option)
1 x 3-pin D38999 power connector w/ power adapter
Plug & Play
VESA DDC 1/2B
Power Supply
DC power with external AC power adapter
Power Consumption: 35W (typical)
Power Management: VEDA DPMS Compliant
Option for D38999 9 to 36V DC power input or D38999 AC power input
Option for MIL-STD-461E power EMI filter
Gross Weight
19.84 lb / 9 kg

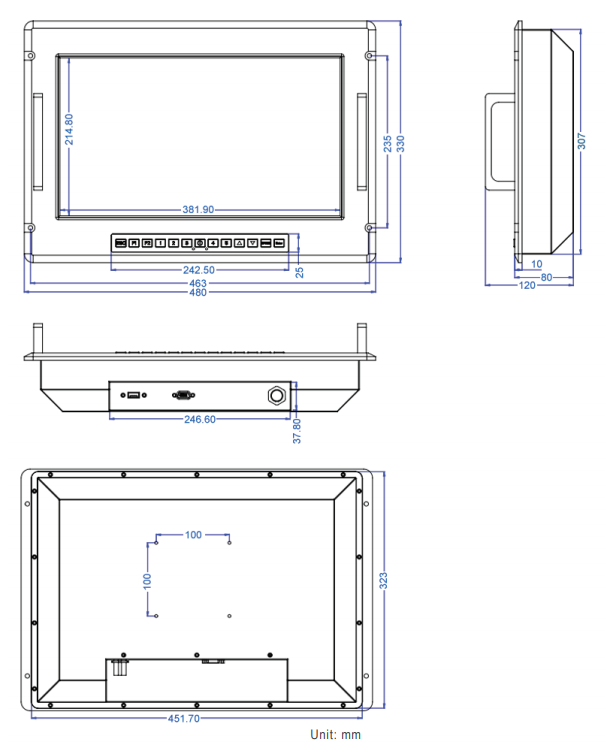

Dimension
18.89"(W) x 4.72"(D) x 10.25"(H)
Environmental
Operating Temperature: -15°C to 55°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 5% to 95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3 compliant
Shock: MIL-STD-810G Method 516.6 compliant
Humidity: MIL-STD-810G Method 507.5-7 compliant
Low Temperature: MIL-STD-810G Method 502.5 Procedure II, C1 zone compliant
High Temperature: MIL-STD-810G Method 501.5-II Procedure II, Hot Dry (A1) compliant
Option for -20°C to 70°C wide range working temperature
IP Level
IP65 in front, IP54 in rear

RMW7180:
17.3" rugged military rackmount LCD monitor, 1920 x 1080 Full HD resolution, VGA + DVI video input, IP65 rated front bezel, AR protective glass, MIL-STD-810G compliant wide range working temperature of -15°C to 55°C, DC power with external AC power adapter.

Lead Time: 12~14 weeks

Document
Description
Download Link
file iconRMW7180-SP(V1-2).pdf
Spec Sheet
file iconRMW7180-UM(V1-2).pdf
User Manual for OSD Functions
file iconRMW71XX-PIN ASSIGNMENT.pdf
PIN Assignment for D38999 Power Input
  • RMW7180
    8U 17.3" rugged military rackmount LCD monitor
    Supports 1920 x 1080 (Full HD) pixel resolution
    400-nit brightness, option for 1000-nit high brightness
    VGA + DVI video input, option for DP, HDMI, or BNC input
    AR glass, option for ITO or Resistive / Capacitive touch screen
    Option for dimming light sensor and optical bond
    MIL-STD-810G compliance for vibration, shock, humidity
    Extended working temperature range from -15°C to 55°C
    DC power input with external AC power adapter
    Starting at:
    $1,350.00
RMW7180
$1,350.00

PRODUCT DESCRIPTION
The RMW7180 is a 17.3-inch widescreen 1920 x 1080 full HD industrial monitor is a TFT active type digital to digital which connects to the onboard conversion board. This rackmount monitor provides excellent display quality with 400-nit brightness (option for 1000-nit high brightness), 600:1 contrast ratio, 1920 x 1080 pixel resolution, and 160° x 140° viewing angle for unparalleled viewing ability. The aspect ratio is a widescreen 16:9 with a display area of 381.89 x 214.81mm. The standard video input includes VGA + DVI and additional video inputs for DP, HDMI, BNC, or Speaker-Audio (optional). The RMW7180 features anodized aluminum construction with an IP65 front bezel. The monitor also comes with a metal rugged housing to fit into a standard 17" rack cabinet. The tempered glass is mounted in front of the LCD panel to protect against the impact on the LCD panel. The rackmount monitor is ready to mount into the standard 17" rack cabinet. It occupies an 8U high rackmount unit.
