The RMW6173 is a 17.3" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1920 x 1080 Full HD resolution, 1000-nits high brightness, 600:1 contrast ratio, and 16.7 million colors. The monitor features VGA + HDMI video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
RMW7194 7U 19

RMW7194

RMW6173

  • 6U 17.3" high brightness rack LCD monitor
  • 1000-nits high brightness display
  • Supports 1920 x 1080 FHD native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, BNC, MCS, Audio, Speaker, or 3G-SDI input
  • Option for Resistive or Projected Capacitive touch screen
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,875.00
Availability: In stock
SKU
RMW6173
17.3" 1920 x 1080 FHD 1000-nits high brightness LCD monitor with VGA + HDMI video input and 100/240VAC power input in a 6U high rackmount enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 17.3 inch
Native Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ) : 600:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 160° x 140°
Response Time (ms): 5.5
Display Area (mm): 381.888H x 214.812V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video input
Standard: VGA + HDMI video input
Option: DVI-D, BNC, MCS, Audio, Speaker, or 3G-SDI input
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 x DVI-D
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 39 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
6U high rackmount for a standard 19" wide rackmount cabinet
Casing Color
Black (RAL 9005)
Weight
9.8 lb / 4.5 kg

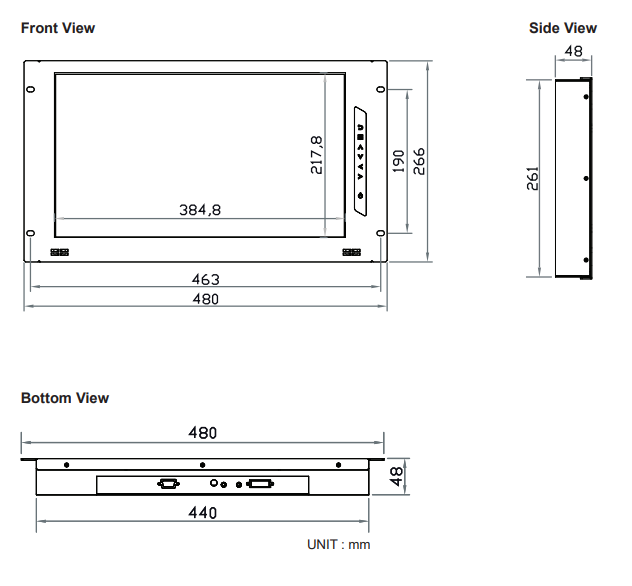

Dimension
Product: 18.9"(W) x 1.9"(D) x 10.5"(H)
Packing: 20.8"(W) x 4.9"(D) x 17.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RMW6173:
17.3 inch 1920 x 1080 Full HD 1000-nit high brightness industrial LCD monitor, VGA + HDMI video input, 100/240VAC power input, 6U high rackmount monitor enclosure, Black color.

Document
Description
Download Link
file iconRMW6173-SP(V1-2).pdf
Spec Sheet
file iconRMW6173-UM(V1-2).pdf
User Manual
