The RMW6170 is a high-quality 6U 17.3" FHD rackmount LCD monitor designed to meet your display needs in any professional setting. Featuring a native resolution of 1920 x 1080, this monitor delivers crystal-clear images that are sure to impress. The front OSD (on-screen display) function allows you to easily adjust the settings to your preference, while the VGA + HDMI video input ensures compatibility with a wide range of devices. Additionally, the RMW6170 also offers the option for DVI-D, DP, Audio, Speaker, or 3G/HD/SD-SDI input, providing you with even more flexibility and versatility.
Loading...
6U 16.2

RMW7170

RMW6170 6U 17.3

RMW6171

RMW6170

  • 6U 17.3" FHD rackmount LCD monitor
  • Supports 1920 x 1080 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, DP, Audio, Speaker, or 3G/HD/SD-SDI input
  • Option for Resistive or Projected Capacitive touch screen - USB
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$913.00
Availability: In stock
SKU
RMW6170
Email
17.3" 1920 x 1080P Full HD rackmount LCD monitor with VGA + HDMI video input and 100/240VAC power input in an 8U high rackmount enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 17.3 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.) : 1000:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 25
Dot Pitch (mm): 0.1989
Display Area (mm): 381.888H x 214.812V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 15,000
Video Input
Standard: VGA + HDMI video input
Option: DVI-D, DP, Audio, Speaker, or 3G/HD/SD-SDI input
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 1-pt / 10-pt touch screen - USB
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 x HDMI
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/ 60Hz
Consumption: Max. 14 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
6U high rackmount monitor for a standard 19" wide rackmount cabinet
Color
Black front panel (RAL 9005)
Weight
9.8 lb / 4.5 kg

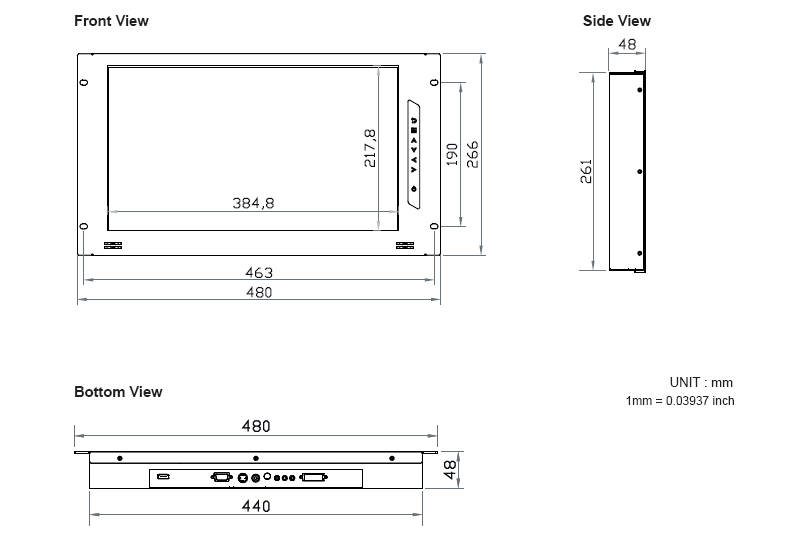

Dimension
Product: 18.9"(W) x 1.9"(D) x 10.5"(H)
Packing: 20.8"(W) x 4.9"(D) x 17.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RMW6170:
17.3 inch 1920 x 1080 full HD widescreen industrial LCD monitor, VGA + HDMI video input, 100/240VAC power input, 6U high rackmount monitor, Black color.Option for DVI-D/ DP / BNC / Audio / Speaker / 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.

Document
Description
Download Link
file iconRMW6170-SP(V1-2).pdf
Spec Sheet
file iconRMW6170-UM(V1-2).pdf
User Manual
  • RMW6170
    6U 17.3" FHD rackmount LCD monitor
    Supports 1920 x 1080 native resolution
    Front OSD (on-screen display) function
    VGA + HDMI video input
    Option for DVI-D, DP, Audio, Speaker, or 3G/HD/SD-SDI input
    Option for Resistive or Projected Capacitive touch screen - USB
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $913.00
RMW6170
$913.00

PRODUCT DESCRIPTION
The RMW6170 is a high-performance rackmount LCD monitor designed to meet the needs of professionals in a variety of industries. Its sleek and stylish design, coupled with a wide range of impressive features, makes it the perfect choice for those who need a reliable and efficient display solution. With a native resolution of 1920 x 1080, the RMW6170 delivers crisp and clear images, ensuring that every detail is visible. One of the standout features of the RMW6170 is its front OSD (on-screen display) function. This feature allows you to easily adjust the settings to your preference, ensuring that you have complete control over the display. The VGA + HDMI video input also ensures compatibility with a wide range of devices, making it a versatile option for those who need to connect multiple devices to the monitor. Another notable feature of the RMW6170 is its option for a Resistive or Projected Capacitive touch screen - USB. This feature allows you to interact with the display in a way that suits your needs, making it an ideal choice for those who require a touch screen for ease of use. The monitor also offers the option for DVI-D, DP, Audio, Speaker, or 3G/HD/SD-SDI input, providing you with even more flexibility and versatility. Overall, the RMW6170 is a top-of-the-line rackmount LCD monitor that offers a wide range of impressive features and is designed to meet the needs of professionals in various industries.
