The RMQ9190 is a 19" split quad display rack LCD monitor supporting 1280 x 1024 native resolution, 16.7M colors, and VGA + Quad Display (Composite BNC x 4) video input in a 9U high rack enclosure. The front panel features an on-screen display that allows you to easily adjust the display. There is a female-type 9-pin D-Sub connector that can be used for alarm sensor input and alarm output control connections.
Loading...
RMWQ8190 8U 19

RMWQ8190

RMQ9190

  • 9U 19" rackmount LCD Quad display
  • Supports 1280 x 1024 native resolution
  • VGA + QD (Composite BNC x 4)
  • 1 x D-sub 9 pin RS-232 remote port
  • 1 x VCR-in/out & 1 x D-sub 9 pin alarm I/O
  • Option for Resistive or Projected Capacitive touch screen - USB
  • Front LCD OSD Function & Quad Display Control
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
Availability: In stock
SKU
RMQ9190
Email
19" rackmount LCD monitor with 1280 x 1024 resolution, VGA + QD (Composite BNC x 4), 100/240VAC power input, and a 9U high rackmount enclosure.
Material
Heavy-duty steel
LCD panel
Size: 19 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.294
Display Area (mm): 376.32H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 1-pt / 10-pt touch screen - USB port
Video Input (NTSC Only)
VGA + QD (Composite BNC x 4)
Quad Display Connection
Imaging System: NTSC / PAL
Resolution: 1024 x 525 (NTSC) / 1024 x 625 (PAL)
Refresh Rate: 60Hz (NTSC) / 50Hz (PAL)
Colors: 16.7M
Video Input:
Camera Input: 1.0 Vpp, 75 Ohm x 4
VCR Input: 1.0 Vpp, 75 Ohm x 1
Video Output:
Live Monitor: 1.0Vpp, 75 Ohm x 4
Loop Through Out: 1.0Vpp, 75Ohm x 4
VCR Output: 1.0Vpp, 75Ohm x 1
Quad Display Functions
Auto Gain Control: Yes
Time / Date: Yes
On Screen Display: 8 Character Title
Display Format: 2 x Zoom On Playback, Quad, Full, Sequency
Dwell Time: 0 to 99 Sec Adjustable
Alarm Inputs: Selectable NO/NC Contacts x 4
Relay Outputs: NO/NC contacts x 1: 1A @DC24V Max
Alarm Hold Time: 1 Sec to Non-stop
Built-in Buzzer: Yes
Keylock: Yes
Front panel control
Membrane buttons for LCD OSD (On Screen Display) Menu & Quad Display Control
OSD control
Auto-Adjustment, contrast, brightness clock, phase, H-position, V-position
Misc: Information, OSD timer, color, language, reset
Connectors
1 x VGA
4 x BNC video-in , 4 x BNC video-out
1 x VCR-in, 1 x VCR-out
1 x D-sub 9 pin alarm I/O
1 x D-sub 9 pin RS-232 remote port
1 x AC power input
Mounting type
9U high rackmount enclosure for a 19" rack cabinet
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 22W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
20.9 lb / 9.5 kg

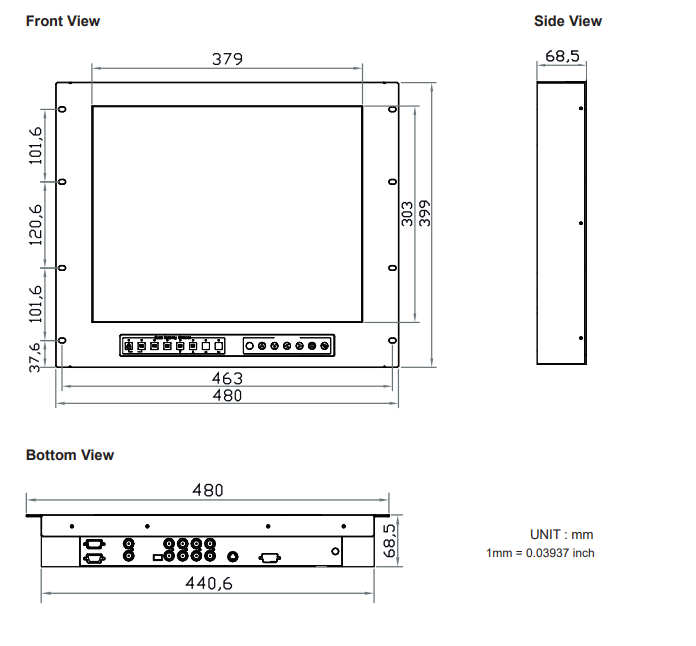

Dimension
18.9"(W) x 2.7"(D) x 15.7"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA

RMQ9190:
19 inch 1280 x 1024 rackmount LCD monitor with quad split display, VGA + QD (Composite BNC x 4), 100/240VAC power input, 9U high rackmount enclosure, Black color. Option for Resistive or Projected Capacitive type touch screen and DC power input.

Document
Description
Download Link
file iconRMQ9190-SP.pdf
Spec Sheet
file iconRMQ9190-UM.pdf
User Manual
  • RMQ9190
    9U 19" rackmount LCD Quad display
    Supports 1280 x 1024 native resolution
    VGA + QD (Composite BNC x 4)
    1 x D-sub 9 pin RS-232 remote port
    1 x VCR-in/out & 1 x D-sub 9 pin alarm I/O
    Option for Resistive or Projected Capacitive touch screen - USB
    Front membrane buttons for LCD OSD Function & Quad Display Control
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
RMQ9190

PRODUCT DESCRIPTION
RMQ9190 is an industrial 19 inch CCTV monitor. For efficient surveillance of streets, warehouses, chemical industries, interior reactors, and food processing facilities, the monitor features quad displays. The monitor offers an HD resolution of 1280 x 1024 and 250 nit brightness display. The plug and play feature EDID 1.3 that supports multiple extensions blocks. RMQ9190’s LCD is a TFT (think-film-transistor) liquid-crystal display. Its primary purpose is to improve image qualities ideal for surveillance systems. The image systems used are common encoding systems (PAL/NTSC). PAL automatically manages hue errors and color. NTSC requires manual color control for tint. NTSC makes color errors a little more noticeable for maintenance. PAL has more lines than NTSC, which makes it possess better image qualities. PAL records at around 25 fps and NTSC records around 30 fps. The monitor also offers a 160-degree viewing angle for better visibility with its 16.7 million true colors. RMQ9190 comes with VGA, S-Video, four BNC in/out channels, one VCR on the back of the monitor, and video camera connections. The on-screen-display allows users to manage the screens contrast, balance, positions, and brightness settings. The connectors feature one VGA, one S-Video, four BNC video-input, four BNC video-output, one VCR-in, one VCR-out, one D-sub 9 pin alarm I/O, and one D-sub 9pin Rs-232 remote port. The system allows for operations at temperatures from as low as 0 degrees Celsius to temperatures as high as 50 degrees Celsius. It also supports shock of 10G acceleration (11ms duration) and a 5~500Hz 1G RMS random vibration.
