Industrial PC with multiple core processors and a single board computer with 14 slot full size PCIe/PCI/ISA backplane, combined front accessible drive bay, interface I/O ports, and expansion slots in a 4U high 17.8 inch depth rack chassis.
Loading...
4U Rackmount Computer with Front Access I/O Ports - RMC8417A

RMC8417A

RMC8416

  • 4U high rackmount computer
  • 17.8 inch short depth rack chassis
  • Core i processor
  • Single board computer
  • 14 slot PCIe / PCI / ISA backplane
  • Front access interface I/O port & expansion slot
  • 1 x slim-type drive bay and 3.5 inch open drive bay
  • 350W PS/2 type power supply
$1,265.00
Availability: In stock
SKU
RMC8416
Email
Rackmount computer with the Core i processor, SBC with 14 slot PCIe/PCI/ISA backplane, front access I/O port 1 x DVD, 1 x HD, and 4U high 17.8 inch depth rack chassis.
Construction
Heavy-duty cold-rolled steel
Inside: Zinc-plated with bright chromate
Outside: Texture-coated
Single Board Computer
Size: Full size single board computer
Processor: Core i CPU
Pentium / Core i3 / i5 / i7
Memory: 2 DIMM memory sockets (up to 32GB memory)
10/100/100BT LAN
On board Video
Dual channel SATAT controller
2 x Serial
1 x parallel
Devices
1 x 3.5" open hard drive
1 x slim type drive bay
1 x 3.5" internal HDD
Backplane
14 slot Backplane PICMG 1.3
A: 1 x PICMG 1.3 SBC, 7 x PCI, 1 x PCIe x16. 1 PCIe x1
B: 1 x PICMG 1.3 SBC, 4 x PCI, 1 x PCIe x16, 4 x PCIe x1, 4 x ISA
C: 1 x PICMG 1.3 SBC, 7 x PCI, 1 x PCIe x16, 5 x PCIe x4
Front Panel Controls
Power on/off switch
System reset button
2 x USB ports
14 x open PCI / PCIe expansion slots
Rear I/O
Depends on SBC layout:
1 x VGA
1 X USB
2 x RJ-45 1000BT LAN
Front Security Door
Security door with key-locker
Cooling Fan
2 x 8cmm ball-bearing fans
Air Filter
Removable and washable
Power Supply
PS/2 type 350W industrial level
Auto-switching power supply for 85V~264V AC input
Color
Black

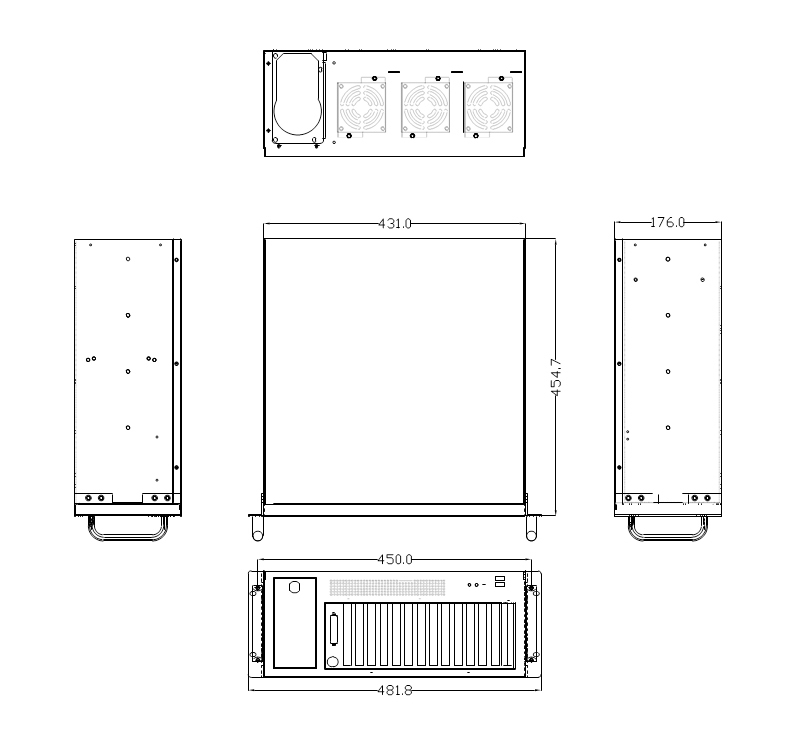

Dimension
19"(W) x 7 "(H) x 17.8 "(D)
Weight
40 lb
Environmental
Operating Temperature:0°C to 40 °C
Relative Humidity: 5 to 95% (non-condensing)

RMC8416:
Core i processor, SBC, 14 slot PCI / PCIe / ISA PICMG 1.0 backplane and front mount I/O port, 4U high 17.8 inch depth rack chassis.

Document
Description
Download Link
file iconRMC8416-SP.pdf
Spec Sheet
file iconRMC8416-INST.pdf
Installation Guide
  • RMC8416
    4U rackmount computer
    Dual-Core or Quad-Core CPU
    SBC with PICMG 1.3 backplane
    14 x PCI / PCIe / ISA expansion slots
    3 x 5.25" & 1 x 3.5" open bay
    380W P/S
    17.8 inch short depth rackmount chassis
    Starting at:
    $1,265.00
RMC8416
$1,265.00

PRODUCT DESCRIPTION
This 4U high 17.8-inch depth rack mount chassis is made of heavy-duty steel. The front panel interface I/O ports includes 14 x open PCI/ISA expansion slots and a system control panel. The front control panel includes a power on/off switch, a system reset button and LED indicators for power / hard drive / LAN. The front access interface I/O ports come with 1 x serial port, Ethernet LAN, 1 x VGA, 2 x USB 2.0 ports, and 1 x PS/2 port. The chassis comes with 1 x 3.5-inch open drive bay, 1 x slim type optical drive, and 1 x 3.5-inch internal hard drive. Other configurations are available. This single-board computer supports a Dual-Core / Quad-Core processor, onboard VGA and Ethernet LAN. The expansion slot includes PCI or PCIe expansion slots based on a PICMIG 1.3 backplane. The standard 380W power supply is installed on the back of rackmount chassis. The front mounting bracket comes with the standard 19-inch rack mounting holes for a standard 19-inch wide rack cabinet. Optional 20-inch rackmount slide rail is available.
