The RMC8351 is a 3U rackmount computer supporting a standard ATX motherboard with the latest Intel processors. The system includes 1 x 5.25" external, 1 x 3.5" external, 2 x 3.5" internal drive bays and 7 x expansion slots in a 3U high 15.8" short-depth rack chassis for space limited applications. The 3U rackmount PC supports front access dual USB ports and two 80mm cooling fans. Designed to serve in a wide range of applications, the RMC8351 is fully customizable and offers options for additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows OS.

Skip to the beginning of the images gallery

RMC2820

RMC8351

3U high rackmount computer
15.8 inch short depth rackmount chassis
14th/13th/10th Generation Intel processors
Standard ATX motherboard
7 x expansion slots
8GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
1 x 5.25" external, 1 x 3.5" external, 2 x 3.5" internal drive bays
2 x cooling fans & front access dual USB ports
400W 2U power supply, option for 600W 2U power supply

In stock

SKU

RMC8351

3U rackmount computer with a standard ATX M/B, the latest Intel processors, 4 x drive bays, 7 x expansion slots, and a 400W 2U power supply in a 3U high 15.8” short-depth rackmount chassis.

Specification

Construction: Heavy duty cold rolled steel
EIA RS-310C 19" rackmount standard

Standard ATX M/B: Size: 12” x 9.6”standard ATX motherboard

Processor:
RMC8351-B – Intel 13/14th Generation Processor
RMC8351-C – Intel 10th Generation Processor / Long Life Cycle M/B (Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports

Drive Bays: 1 x 5.25” external drive bay
1 x 3.5” external drive bay
2 x 3.5” internal drive bays

Expansion Slot: 7 x expansion slots

Front Panel Control: Power ON/OFF button
System Reset button
2 x USB ports

LED Indicator: LED indicators for Power ON/OFF, HDD Activity, and LAN Activity

Cooling Fan: 2 x 80mm fans (42.5CFM each)

Power Supply: 400W 2U power supply
Option for 600W 2U power supply

Color: Black

Weight: 30 lb / 13.61 kg

Dimension: 19"(W) x 15.8"(D) x 5.2"(H)

Environmental: Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 5~95%, non-condensing

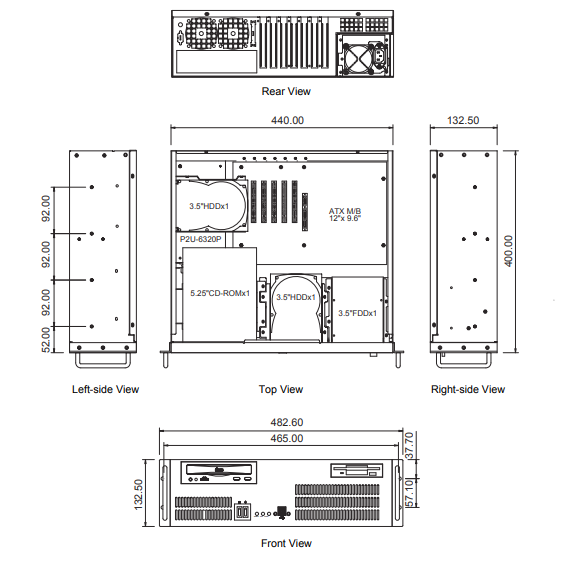

Dimensions

Order Info

RMC8351-B:
3U rackmount computer, Intel 13/14th Generation processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, 400W 2U power supply, 3U high 15.8-inch short-depth rack chassis, Black color.

RMC8351-C:
3U rackmount computer, Intel 10th Generation processors, long-life cycle industrial ATX motherboard, 8GB memory, 7 x expansion slots, 400W 2U power supply, 3U high 15.8-inch short-depth rack chassis, Black color.

Downloads

Document

Description

Download Link

RMC8351-SP.pdf

Spec Sheet

Configure Now

RMC8351-B

3U high rackmount computer
13/14th Generation Intel processors
Supports PCIe Gen 4 x 16
Prime B660-PLUS D4 / Z690-P D4 / Z690-A
8GB RAM (Up to 32GB)
250GB NVMe M.2 SSD
1 x 5.25" & 1 x 3.5" external drive bay
2 x 3.5" internal drive bays
400W 2U power supply
15.8" short-depth rack chassis

Starting at:
$1,185.00
RMC8351-C

3U high rackmount computer
10th Generation Intel processors
Long-Life ATX M/B (Through Q2 2030)
8GB RAM (Up to 64GB)
250GB NVMe M.2 SSD
1 x 5.25" & 1 x 3.5" external drive bay
2 x 3.5" internal drive bays
400W 2U power supply
15.8" short-depth rack chassis

Starting at:
$1,270.00

RMC8351-B

$1,185.00

13/14th Generation CPU

13th Gen. Intel Celeron G6900 (2 Core, 4MB Cache, 3.40 GHz)

13th Gen. Intel Core i3-12100 (4-Core, 12MB Cache, 3.30GHz) + $110.00

13th Gen. Intel Core i5-12400 (6 Core, 18MB Cache, 2.50GHz) + $195.00

13th Gen. Intel Core i5-12600K (10 Core, 20M Cache, 3.70GHz) + $310.00

14th Gen. Intel Core i5 processor 14600K (24M Cache, up to 5.30 GHz) + $379.00

13th Gen. Inte Core i7-12700 (12 Core, 25MB Cache, Up to 4.90GHz) + $395.00

13th Gen. Intel Core i7-12700K (12 Core, 25MB Cache, Up to 5.00GHz) + $460.00

14th Gen. Intel Core i7 processor 14700K (33M Cache, up to 5.60 GHz) + $479.00

13th Gen. Intel Core i9-12900 (16 Core, 30MB Cache, Up to 5.10GHz) + $615.00

13th Gen. Intel Core i9-12900K (16 Core, 30MB Cache, Up to 5.2Ghz) + $735.00

14th Gen. Intel Core i9 processor 14900K (36M Cache, up to 6.00 GHz) + $715.00

Standard ATX Motherboard

Z790 PRO RS LGA 1700 G-LAN / HDMI / DP 1.4 / PS/2 / Audio / 8 x USB / 8 x SATA + 4 M.2 with RAID / 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1

Z790 GAMING WIFI7 LGA 1700 G-LAN / HDMI / Audio / 8 x USB / Wi-Fi 7 /4 x SATA + 3 x M.2 with RAID / 1 PCIe 5.0 x16, 3 PCIe 4.0 x16 (x4 supported), 1 PCIe 3.0 x1 + $35.00

Z790 PG Lightning LGA 1700 2.5G-LAN / HDMI / PS/2 / Audio / 8 x USB / 4 x SATA + 4 x M.2 with RAID / 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1 + $75.00

Memory

8GB memory x 1

16GB DR4 memory x 1 + $45.00

32GB memory x 1 + $120.00

Storage Device

250GB NVMe M.2 SSD x 1

500GB NVMe M.2 SSD x 1 + $15.00

1.0TB NVMe M.2 SSD x 1 + $60.00

250GB SATA 2.5" SSD x 1 + $10.00

500GB SATA 2.5" SSD x 1 + $15.00

1.0TB SATA 2.5" SSD x 1 + $60.00

2.0TB SATA 2.5" SSD x 1 + $200.00

4.0TB SATA 2.5" SSD x 1 + $530.00

1.0TB SATA 3.5" HDD x 1 + $10.00

2.0TB SATA 3.5" HDD x 1 + $15.00

4.0TB SATA 3.5" HDD x 1 + $35.00

6.0TB SATA 3.5" HDD x 1 + $90.00

8.0TB SATA 3.5" HDD x 1 + $130.00

Additional Storage Device

N/A

250GB NVMe M.2 SSD x 1 + $75.00

500GB NVMe M.2 SSD x 1 + $90.00

1.0TB NVMe M.2 SSD x 1 + $135.00

250GB SATA 2.5" SSD x 1 + $80.00

500GB SATA 2.5" SSD x 1 + $90.00

1.0TB SATA 2.5" SSD x 1 + $135.00

2.0TB SATA 2.5" SSD x 1 + $275.00

4.0TB SATA 2.5" SSD x 1 + $600.00

1.0TB SATA 3.5" HDD x 1 + $70.00

2.0TB SATA 3.5" HDD x 1 + $75.00

4.0TB SATA 3.5" HDD x 1 + $95.00

6.0TB SATA 3.5" HDD x 1 + $160.00

8.0TB SATA 3.5" HDD x 1 + $200.00

Removable Drive Bay (In 1 x 3.5" Drive Bay)

N/A

1 x 2.5" Removable SATA HDD Full Metal (in 1 x 3.5" Drive Bay) + $80.00

2 x 2.5" Removable SATA HDD Full Metal (in 1 x 3.5" Drive Bay) + $110.00

Removable Drive Bay / Optical Drive (In 1 x 5.25" Drive Bay)

N/A

4 x 2.5" Removable SATA HDD Full Metal (in 1 x 5.25" Drive Bay) + $170.00

4 x 2.5" Removable SATA HDD Full Metal with Keylock (in 1 x 5.25" Drive Bay) + $220.00

6 x 2.5" Removable SATA HDD Full Metal (in 1 x 5.25" Drive Bay) + $180.00

1 x 24x CD/DVD Burner + $50.00

1 x 16x Blu-Ray Drive + $140.00

I/O Card

N/A

1 x 2 Port PCI Express RS-232 Serial Card + $80.00

1 x 4 Port PCI Express RS-232 Serial Card + $150.00

Ethernet Card

N/A

1 Port PCI Express - 10/100/1000Mbps Single Port Network Adapter - Low Profile + $45.00

Graphic Card

N/A

GeForce GT 1030 2GB DDR5 Graphics Card + $200.00

GeForce GTX 1050 TI 4GT LP Graphics Card + $350.00

GeForce GTX 1650 4GB GDDR6 Graphics Card (Includes 2x HDMI ports, 1x DP, 1x DVI, 4x Input) + $365.00

Power Supply

400W 2U power supply

600W 2U power supply + $50.00

Operating System

N/A

Windows 11 Professional 64-Bit (TPM 2.0 Requited) + $199.00

Rack Console

N/A

1U 17" 1280 x 1024 LCD w/ keyboard & touchpad - KD8172 + $925.00

1U 17.3" 1920 x 1080 FHD LCD w/ keyboard & touchpad - KDF8170 + $1,169.00

1U 19" 1280 x 1024 LCD w/ keyboard & touchpad - KD8190 + $1,023.00

1U 19" 1440 x 900 widescreen LCD w/ keyboard & touchpad - KDW8190 + $993.00

Slide Rail

N/A

20" slide rail (20~37" adjustable length) + $55.00

Warranty

1-Year Depot Warranty

RMC8351-C

$1,270.00

10th Generation CPU

Intel Celeron G5905 (2 Core, 4M Cache, 3.50GHz)

Intel Pentium Gold G6400 (2 Core, 4M Cache, 4.00GHz) + $35.00

10th Gen. Intel Core i3-10100 (4 Core, 6MB Cache, 3.60GHz) + $80.00

10th Gen. Intel Core i5-10400 (6 Core, 12MB Cache, 2.9GHz) + $140.00

10th Gen. Intel Core i5-10500 (6 Core, 12MB Cache, 3.1GHz) + $200.00

10th Gen. Intel Core i7-10700 (8 Core, 16MB Cache, 2.90GHz) + $295.00

10th Gen. Intel Core i9-10900 (10 Core, 20MB Cache, 2.80GHz) + $415.00

Standard ATX Motherboard (Long Life Production Cycle)

LA0H ATX M/B 2 x RJ45 LAN / VGA + HDMI / 2 x COM (RS232/422/485) / 1 x PS/2 / Audio / 3 x USB (2 x USB 2.0 + 4 x USB 3.2 Gen 1) / 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x4 + 5 x PCI
