Industrial PC combined multiple Core CPU and ATX mother board with 7 x PCI or PCIe expansion slots, up to 7 hard drive and 400W redundant power supply into a 3U high 20.7 inch depth rack mount chassis.
Loading...
Rackmount Computer RMC7254 Front View

RMC7254

Rackmount Computer RMC8333A Front View

RMC8333A

RMC8310A

  • 3U high rack mount computer
  • 20.7 inch short depth chassis
  • Front door with two removable AIR-filter and thumb-lock
  • Dual-Core or Quad-Core CPU
  • ATX mother board
  • 3 x open, 5 x hidden drive bay
  • 7 x open PCI / PCI Express expansion slots
  • Front mount 400W redundant power supply
$895.00
Availability: In stock
SKU
RMC8310A
Email
Rack mount computer with multiple Core CPU and ATX mother board with 7 x PCI or PCIe expansion slots , has 1 x DVD and 5 x hard drive bay and 400W redundant power supply in a 3U high and 20.7 inch short depth chassis.
Construction
Heavy-duty cold rolled electroplated steel
Micro ATX mother board
Size: 12" x 9.6" standard ATX mother board
Processor: Dual-Core / Quad-Core processor
Memory: 4 x DIMM memory sockets (up to 16GB)
On-board video, 100/100BT LAN & Audio
SATA controller, USB ports
Device
2 x 5.25" open drive bay
1 x 3.5" open drive bay, 5 x 3.5" hidden drive day
Expansion Slot
7 x open PCI / PCIEx expansion slots
Front Panel Controls
Power on/off and system-reset switch
LEDs for Power supply & 5 x HDD Activity
Front Door
1 x front Door with thumb Lock
2 x removable air-filters
Cooling Fan
2 x (90mm = 51CFM ea.) heavy duty ball bearing fans
1 x (80mm = 42.5CFM) heavy duty ball bearing fan
Power Supply
Mini-redundant 400W 110/220VAC ATX power supply
Option:
Mini-redundant 500W 110/220VAC ATX power supply
Single PS/2 600W 110/220VAC ATX power supply
Color
Black
Dimension
19"(W) x 5.25"(H) x 20.7"(D)
Weight
40lbs
Environmental
Operating temperature: 0°~55°C (32°~ 113°F)
Relative humidity: 5% ~ 95%, non-condensing

RMC8310A
Rack mount computer, multiple core processor, ATX mother board, 1 x SATA HD, 1 x DVD optical drive and 400W mini-redundant power supply3U high and 20.7 inch depth rack chassis.

Price:$895.00



Document
Description
Download Link
file iconRMC_8310A-data.pdf
Data Sheet
file iconRMC_8310A-dim.pdf

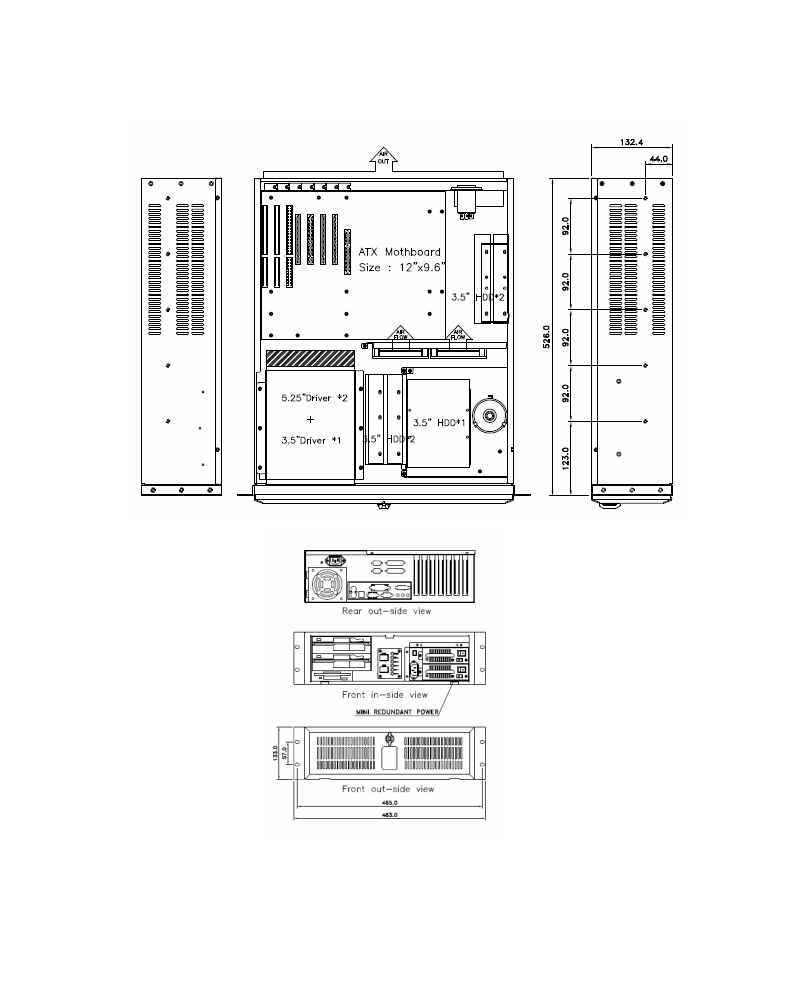

Dimension
  • RMC8310A
    3U rack mount system
    Dual-Core or Quad-Core CPU
    7 x PCI or PCI-Ex expansion slots
    3 x open drive bay & 5 hidden 3.5" hard drive bay
    400W redundant power supply
    20.7" depth chassis
    Starting at:
    $895.00
RMC8310A
$895.00

The Housing
  This 3U rack mount chassis is made of a heavy-duty cold-rolled steel. Front door comes with 2 x removable air-filters, and a thumb lock. Front panel controls include an on/off switch, a system reset button, and LEDs to monitor power and hard drive activiy. Two 90mm and one 80mm fans provide 100CFM of air circulation inside the housing. Color: Black.

Storage device
  The rack mount chassis comes with 2 x 5.25 inch, 1 x 3.5 inch open drive bay and 5 x 3.5 inch hard drive hidden bays. Standard configuration include a DVD and a SATA hard drive. Other configurations are available.

System board
  Standard ATX mother board comes with 7x PCI and PCI-E expansion slots, on board audio, video and ethernet LAN. The rear I/O include a VGA, RJ-45, audio in/out, USB 2.0, and PS/2 ports. The default system configuration included Dual-Core processor, SATA HD and DVD-RW optical drive.

Expansion slots
  Standard configuration includes one PCI Express (x16), two PCI Express (x1), and three PCI slots depend on ATX motherboard expansion slot layout.

Redundant power supply
  The mini-redundant power supply is located on the front for easy access. The one AC input-plug is located on the back of the chassis. Standard configuration comes with a 400W power supply and an optional 500W redundant power supply.

Mounting
   The front mounting bracket come with the standard 19 inch rack mounting holes for a standard 19 inch wide rack cabinet.
