1U rackmount computer supporting the Intel Core i7-14700 Processor, 16GB DDR5-5600 memory (up to 128GB). The rackmount system comes with various I/O ports including two COM ports two Gigabit LANs, four USB ports, one HDMI port, one DP and one VGA port. The front panel of the system has power & reset buttons and two USB 2.0 ports.

4U Rackmount GPU Workstation w/ Standard ATX M/B - RMC4402 Acnodes

RMC4402

RMC81110

  • 1U high 17.7 inch depth rackmount computer
  • Intel Core i7-14700
  • 16 GB DDR5-5600 memory (up to 128 GB)
  • 1 x 2.5-inch SATA HD/SSD storage bay
  • 2 x COM, 3 x 2.5 Gbe LANs, 1 x VGA, 1 x HDMI, 1 x DP
  • NVIDIA RTX A2000 6/12 GB
  • 3 x 40x20(mm) 7000RPM 8CFM fans
  • 1U Rackmount with 500W ATX Power Supply
$1,873.00
Availability: In stock
SKU
RMC81110

1U rackmount computer with Intel Core i7-14700 Processor, 16GB memory DDR5-5600 (up to 128GB), 2 x front USB ports, and a 1U high 17.7" depth rackmount enclosure.

Construction
1U high 17.7 inch depth chassis
Main System
CPU: Intl Core i7-14700
Chipset: Q670E Chipset
Memory: 16GB DD5 (max. 128GB)
SATA: 4 x SATA3 6 Gb/s for RAID 0/1/5/10
M.2: 2 x M.2 type 2242/2280
Audio: Realtek ALC888S HD Audio
Storage: 1 x 5.25" + 1 x 3.5" open drive bay, 2 x M.2 internal drive bay, Option for DVD optical drive and removable 2.5" HD/SSD open bay
Ethernet
2 x Intel I225-V 2.5GbE
1 x Intel I225-LM 2.5GbE (iAMT)
Support
RTX A2000 6/12 GB
O/S:
Windows 11 64bit, Linux CentOS 9 / Ubuntu 22.04 / Debian 11.4 / OpenBSD 7.1 / OpenSUSE 15.4
Front Panel Control:
Power on/off button
System Reset button
Status LEDs (Power, HD)
Rear Panel Control
Alternative power / reset switches on rear panel
Rear I/O Ports
6 x USB 3.2 Gen
1 x HDMI 2.0b (4096 x 2160 @ 60Hz)
1 x DP 1.4a (4096 x 2304 @ 60Hz)
1 VGA (1920 x 1080 @ 60Hz)
3 x 2.5GbE LAN ports
2 x COM (RS-232/422/485)
3 x 3.5mm Audio Jack (Line-out/ Line-in/Jack/ Mic-in)
Cooling Fans
2 40X20MM (7CFM ea) & 3 40x10mm
Power Supply
500W ATX 100-24-VAC, 50-60Hz
Color
Black
Weight
28 LBS
Dimension
16.92"(W) x 17.7"(D) x 1.73"(H)
Environmental
Operating Temperature : 0 ~ 45°C
Storage Temperature : -10 ~ 70°C
Humidity: 5~95%, non-condensing

RMC81110:
1U rackmount computer, Intel Core i7-14700 Processor, 16GB DDR5-5600 memory( up to 128GB), 1 x open PCI-E x16 slot, 2 x COM + 3 x 2.5Gbe LANs + 4 x USB + 1 x VGA + 1 x HDMI + 1x DP, 500W 1U ATX power supply, 1U high 17.7" depth rackmount chassis.

Document
Description
Download Link
file iconRMC81110-SP.pdf
Spec Sheet
file iconRMC81110-DM.pdf

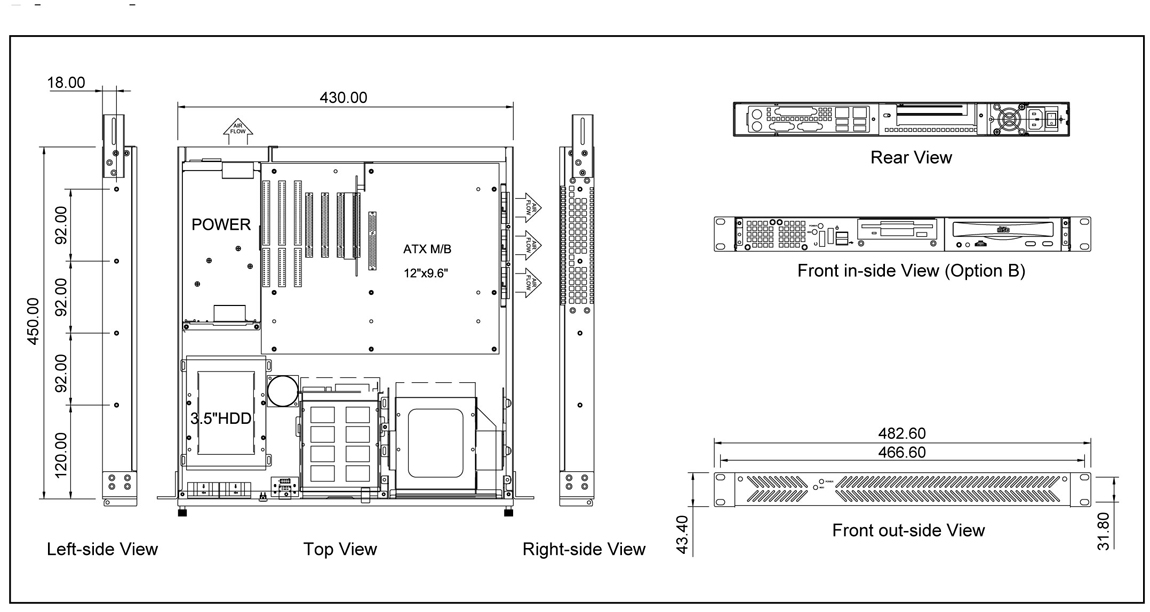

Dimension
