Industrial computer power by multiple Core processor with Micro ATX mother board, on board-RAID and 4 x low profile expansion slots, has 2 x open SATA hard drive tray and 2U high rack chassis for for industrial PC application.
Loading...
Rackmount Computer RMC5200 Front View

RMC5200

Rackmount Computer RMC8310A Front View

RMC8310A

RMC7254

  • 2U high rack mount computer
  • 15.1 inch short depth chassis.
  • Micro ATX mother board
  • Dual-Core / Quad-Core processor
  • 2 x open hot-swappable SATA HD tray
  • 4 x open PCI / PCIe expansion slots
  • 380W PS/2 ATX power supply
$495.00
Availability: In stock
SKU
RMC7254
Email
Rack mount computer - Haswell CPU and Micro ATX M/B with on board RAID and 2 x open SATA hard drive tray, has 4 x PCI or PCIe expansion slots, and 380W PS/2 P/S in a 2U high and 15.1 inch short depth rack chassis.
Construction
Heavy-duty cold-rolled steel
Micro ATX Motherboard
Processor: Dual-Core / Quad-Core
Memory: 2 x memory socket (up to 16GB)
On board Video / Audio
100/1000BT Ethernet LAN
SATA port
PCIe / PCI expansion slots
Device
2 x 3.5" open hot-swappable SATA HD drive bay
1 x slim type DVD power supply
2x internal 3.5" HDD
RAID Controller
Option for 2-port SATA RAID PCIEx controller add-on card
(Support RAID level 0/1)
Front Panel Controls
Power on/off switch
System reset button
Indicators: LED for Power & HDD Activity
2 x front USB ports
Expansion Slot
4 x low profile PCI / PCIEx expansion slots
Cooling Fan
1 x 80mm cooling fan
Switch
Power ON/OFF Momentary (rocker), System reset
Power Supply
380W PS/2 Size Single ATX PSU, Max. depth 150mm
Color
Black
Dimension
19"(W) x 15.1 "(H) x 3.5 "(D)
Weight
21lbs
Environmental
Operating temperature: 0°~55°C (32°~ 113°F)
Relative humidity: 5% ~ 90% @ 40° C, non-condensing
Certifications
RoHS

RMC 7254
Rack mount computer, Dual-Core / Quad-Core CPU, Micro-ATX mother board with on board RAID, 4 x low profile PCI / PCIEX expansion slot, 2 x open SATA HD tray, 1 x slim DVD &  1 x 3.5" hard drive bay, 1U high and 15.5 inch short depth chassis.

Price:$495.00

Document
Description
Download Link
file iconRMC_7254-data.pdf
Data Sheet

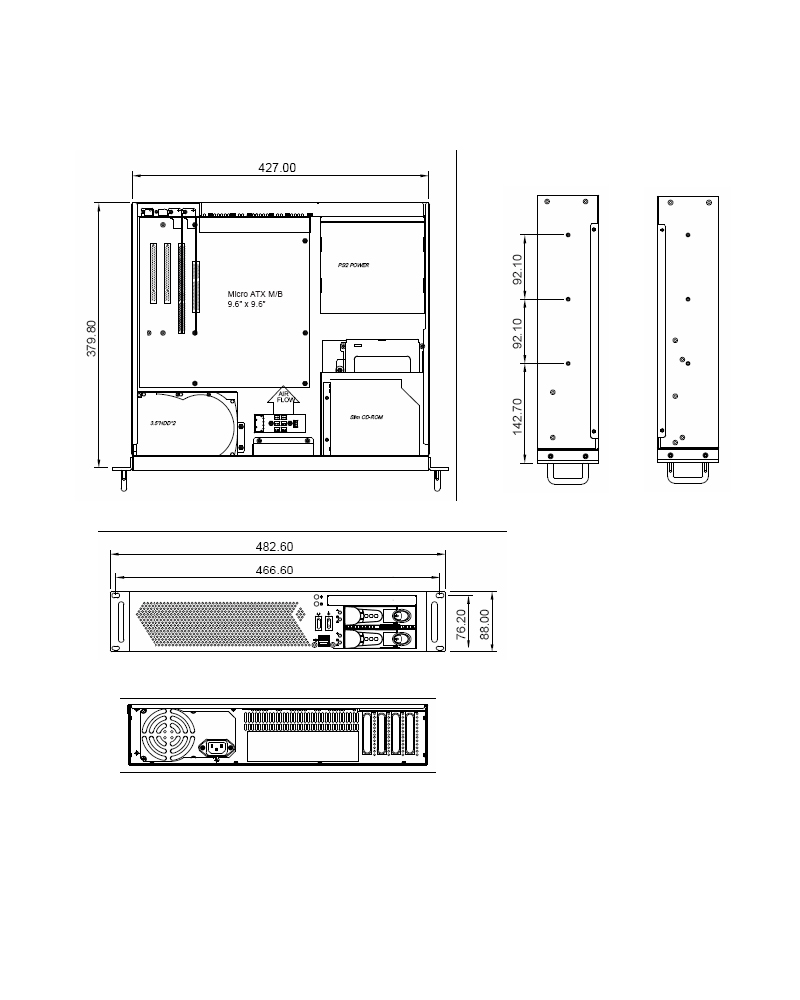

file iconRMC_7254-dim.pdf
Dimension
  • RMC7254
    2U rack mount computer
    Dual-Core or Quad-Core CPU
    Mirco-ATX mother board
    Embedded SW RAID
    2 x hot-swap SATA hard drive tray
    4 x low profile PCI or PCIEx expansion slots
    1 x slim DVD & 1 x 3.5" hard drive bay
    300W power supply
    15.1" short depth rack mount chassis
    Starting at:
    $495.00
RMC7254
$495.00

The chassis
  This 2U rack mount chassis is made of a heavy-duty cold-rolled steel. Front panel face comes with 2 x hot-swappable SATA HDD drive bays and 2 x USB 2.0 interface ports.  The front panel controls include an on/off switch, a system reset button, and LEDs to monitor power and hard drive activity. 2 x 80mm and 1 x 60mm cooling fans provide air circulation inside the housing. 2U high rack mount chassis is a 15.1-inch short depth chassis. Color: black.

Storage device
  The rack mount chassis comes with 2 x hot-swappable SATA hard drive bay, 2 x internal 3.5 inch HDD and 1 x slim type DVD optical drive. Standard configuration include a DVD and a 500GB SATA hard drive. Other configurations are available.

System board
  The embedded Micro ATX board supports a Dual-Core / Quad-Core processor, video, audio and Ethernet LAN. Two memory sockets (up to 16GB max) and an option of PCIEx or PCI RAID controller card that can support RAID level 1 and 0. The multi expansion slots are available for the PCI-Ex video card upgrade (may be limited by size) and other add-on card can be installed.

Expansion dlots
  Standard configuration includes four low profile PCI-Ex / PCI expansion slots.

Power dupply
  The rack mount chassis come with single 380W PS/2 type ATX power supply.

Mounting
   The front mounting bracket comes with the standard 19 inch mounting holes for a standard 19 inch wide rack mount cabinet.
