1U 22" Depth Rackmount Computer with 4 x Hot Swap Drive Bays

Specification

Material: Heavy-duty preplated SPGC cold-rolled steel
Meets industrial standard EIA-RS310D

System: Processor: Xeon E3-1230 V6 3.5GHz 4-Core
Chipset: Intel C232
Memory: Unbuffered EEC UDIMM slots, max. 64GB
On-board LAN: 2 x 1GbE LAN
SATA: Intel C232 controller
SATA RAID: RAID 0, 1, 5, 10
IPMI: Aspeed AST2400 BMC
Graphics: Aspeed AST2400 BMC

Front Panel: 1 x VGA port
1 x COM port (rear)
2 x USB 2.0 ports (rear)
2 x USB 3.0 ports (rear)
TPM: TPM Header

Storage: 4 x 2.5" / 3.5" hot swappable drive bays

Expansion Slot: Option for 1 x PCIex16 expansion slot

Front Panel Control: Power on/off switch
System reset
2 x USB ports

Rear Connector: 2 x LAN ports
4 x USB ports
1 x COM port
1 x VGA port

Power supply: 300W 1+1 redundant power supply

Cooling Fan: 4 x 40x28mm PWM easy swap fans

Weight: 34.8 lb / 15.8 kg

Dimension: 17"(W) x 22"(D) x 1.72"(H)

Environmental: Operating Temperature: 0°C to 50°C
Relative Humidity: 5% to 95%, noncondensing

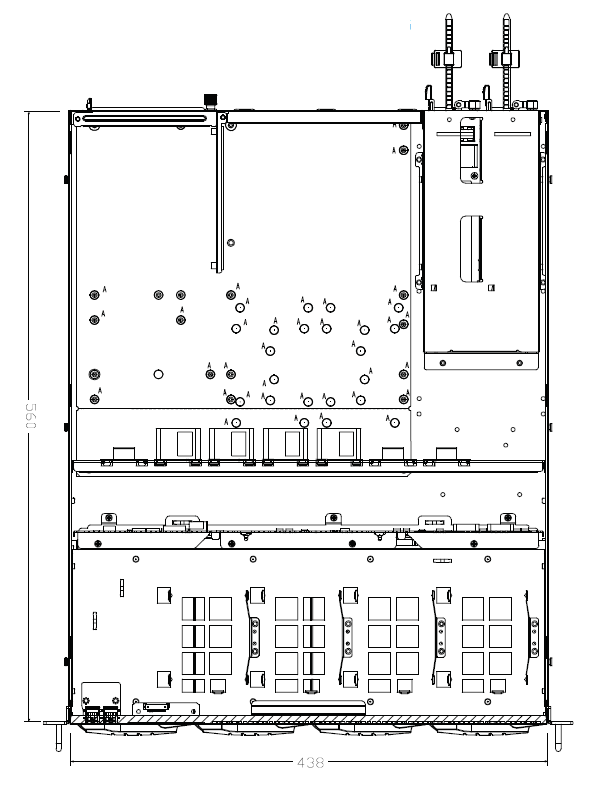

Dimensions

Order Info

RMC7250:
1U rackmount computer, Xeon E3-1230 V6 3.5GHz quad-core CPU, 8GB memory, 4 x 2.5"/3.5" hot swappable drive bays, 4 x USB + 1 x COM + VGA + 2 x 1GbE LAN, 300W 1+1 redundant power supply.
Lead Time: 2 weeks

Downloads

Document

Description

Download Link

RMC7250-SP.pdf

Spec Sheet

Configure Now

RMC7250

1U high rackmount computer
Xeon E3-1230 V6 3.5GHz CPU
4 x USB + 1 x COM + VGA + 2 x 1GbE LAN
4 x 2.5" / 3.5" hot swappable drive bays
Option for 1 x PCIex16 expansion slot
300W 1+1 redundant power supply
22 inch short depth chassis

Starting at:

RMC7250

NOTICE: PRODUCT END OF LIFE (EOL). PLEASE VISIT 1U RACKMOUNT COMPUTERS FOR RELATED PRODUCTS.
