Industrial computer comes with high performance processor and industrial mother board with RAID controller and PCI express slot. has 1U high and 17.32 inch rack chassis for server application.
Loading...
Rackmount Computer RMC5008 Front View

RMC5008

Rackmount Computer RMC6121B Front View

RMC6121B

RMC6157A

  • 1U high rack mount computer
  • 17.32 inch short depth rack chassis
  • Dual-Core / Quad-Core CPU
  • Industrial ATX mother board
  • Embedded SATA RAID controller, support 0, 1, 10 and 5
  • 2 x SATA HD open tray
  • 1 x PCI Express expansion slot
  • 250W 1U power supply
$840.00
Availability: In stock
SKU
RMC6157A
Email
Rack mount computer - Dual-Core CPU, industrial ATX M/B, embedded RAID, 2 x HD open tray, 1 PCI-Ex expansion slot, 250W power supply, 1U high and 17.32 inch short depth chassis.
Construction
Heavy Duty Cold Rolled Electroplated Steel
Embedded computer board
Chip set: G45+ICH10DO
BIOS: AMI BIOS
CPU socket: LGA-775 socket
CPU: Core 2 Quad / Core 2 Duo, 800/1066/1333MHz FSB
Memory: 4 x DDR3 240-pin memory socket (up to 8GB)
Digital I/O: 8 channel IN/OUT
Watchdog timer: 255 level, 0 to 255 seconds
Expansion slots:
4 x PCI, 1 x PCI-E(x1)
1 x PCI-E (x1), 1 x PCI-E(x4) 1 x PCI-E(x16)
On board Gigabit LAN, Video & Audio
6 x SATA-300 support RAID level; 0 / 1 / 10 / 5
3 x RS-232 (COM2/3/4) with +5V/+12V powered
1 x RS-232/422/485 (COM1) with +5V/+12V powered
4 x USB, 2 X PS/2 ports
Device
2 x hot-swap 3.5" SATA hard drive tray
Rear I/O layouts
2 x PS/2 ports, 1 x RS-232/422/485
4 x USB, 1 x LTP
2 x RJ-45 10/100/1000BT LAN ports
1 x VGA
1 x Audio port (Mic-in/Line out)
Expansion Slot
1 x PCI -Express slot, option for PCI slot
Front Panel Controls
Power on/off and system-reset switch, LEDs for Power, HDD
Cooling Fan
2 x (40x20mm = 7CFM ea.)
Heavy Duty Ball Bearing Fans
Power Supply
1U 250W 90 to 260 full range VAC ATX power supply
OS Support
Windows 7 / XP/ Linux
Color
Black
Dimension
19"(W) x 17.32"(D) x 1.75(H)
Weight
25lbs
Environmental
Operating Temperature:0°C ~ 40 °C
Non-operating Temperature: -40°to 70°C
Humidity: 8~90%, non-condensing
Non-operating Relative Humidity: 5 to 95% (non-condensing)

RMC 6157A
Rack mount computer, Dual-Core CPU, ATX mother board, 2 x SATA HD with open tray and 1 PCI-Ex16 slot, 1U high and 17.32 inch depth chassis.

Price:$840.00

Document
Description
Download Link
file iconRMC_6157A-data.pdf
Data Sheet

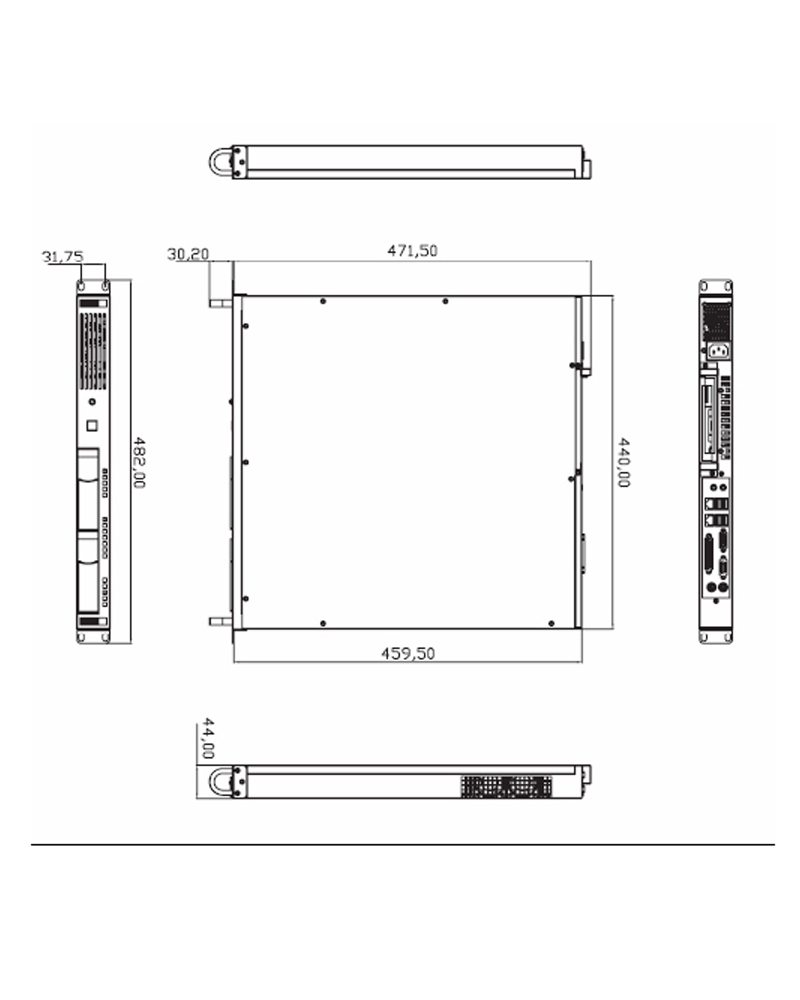

file iconRMC_6157A-dim.pdf
Dimension
  • RMC6157A
    1U rack mount computer
    Dual-Core CPU
    On board SW RAID
    2 x hot-swap open SATA HD tray
    1 x PCI-Ex expansion slot
    250W power supply
    17.32" short depth chassis
    Starting at:
    $840.00
RMC6157A
$840.00

The housing
  This 1U high rack mount chassis is made of a heavy-duty cold-rolled steel with 2 open removable hard drive trays. The front control panel includes an on/off switch, system reset button, and 2 x LED indicators to monitor power and hard drive activity. Cooling system is provided by 2 40x20mm ball-bearing cooling fans. Power is delivered via slim size 10/220 VAC power supply housed the rear with a 17.32 inch short depth in black color.

Storage device
  The chassis has two open hot-swappable 3.5 inch SATA hard drive trays. Standard configuration includes two SATA RAID hard drives. Other configurations are available.

System computer board
  Standard ATX motherboard comes with onboard RAID controller (support RAID level 0/1/5/10), audio, video, and Ethernet LAN port. Standard I/Os included 2 x PS/2 ports, 1 x serial, 1 x parallel, 4 x USB 2.0 ports, 2 x RJ-45 ports, 1 x 15-pin VGA, and line-in/micro-in. In addition, a PCI 32 bit slow is available for an add-on card via use of a PCI riser card. Standard configuration includes a Dual Core processor with low profile fan and heat sink and a 2GB DDR3 memory. Other CPU speeds and DDR3 memory configurations are available.

Expansion slots
One PCI express (x16) expansion slot (via use of a riser card). Option for PCI-32 bit expansion slot.

Power supply
1U slim size 250W full-range (90-264VAC) ATX power supply.

Mounting
   Front ears come with standard 19 inch rack mounting holes allowed for front mounting to any standard 19 inch rack mount cabinet.
