Rack mount computer comes with Dual-Core Pentium processor, ATX mother board, 1 x HD, 1 x PCI expansion slot, 270W P/S, 1U high & 16.93 inc short depth rack mount chassis.
Loading...
1U Rackmount Computer with Atom Low Power CPU & ITX M/B - RMC5012

RMC5012

Rackmount Computer RMC5200 Front View

RMC5200

RMC6155A

  • 1U high rack mount computer
  • 16.93" short depth chassis
  • Dual-Core Pentium processor
  • Industrial ATX mother board
  • 2 x hidden SATA HD bay
  • 1 x PCI expansion slots
  • 270W 1U power supply
$845.00
Availability: In stock
SKU
RMC6155A
Email
Rackmount computer, Dual-Core Pentium CPU, industrial ATX M/B, 1 x PCI slot, 1 x HD bay, 270W P/S, 1U high & 16.93" short depth chassis.
Construction
Heavy-duty preplated SPGC cold-rolled steel
Inside / Body: Zinc-plated with bright chromate
Mother Board
Size: 12" x 9.6" industrial ATX mother board
Processor: LGA-775 socket for Dual-Core Pentium CPU
Memory: 4 x DDR2 240-pin memory socket (up to 8GB)
Chipset: Intel Q965+ICH8/DO
BIOS: Phoenix-Award BIOS
On-board Video
On-board Audio, AC'97
On-board 10/100BT LAN
6 x SATA ports, support RAID 0/1/5
1 x EIDE connector
Watchdog timmer: reset support, 1-255 levels
3 x RS-232, 1 x RS-232/422/485 and 1x parallel ports
Device
2 x 3.5" hidden drive bay (for 3.5" EIDE HD)
Expansion Slot
1 x PCI 32-bit expansion slot
Front Panel Controls
Power on/off switch 2 x LCD indicators for HD / power supply
Cooling Fan
2 x 40mm ball-bearing fans
Power Supply
110/220VAC full range, 1U 270W power supply
+5V@18A, +3.3V@16A,
+12V1@16A, +12V2@10A
[email protected], [email protected]
MTBF: 100,000 hours
Color
Black

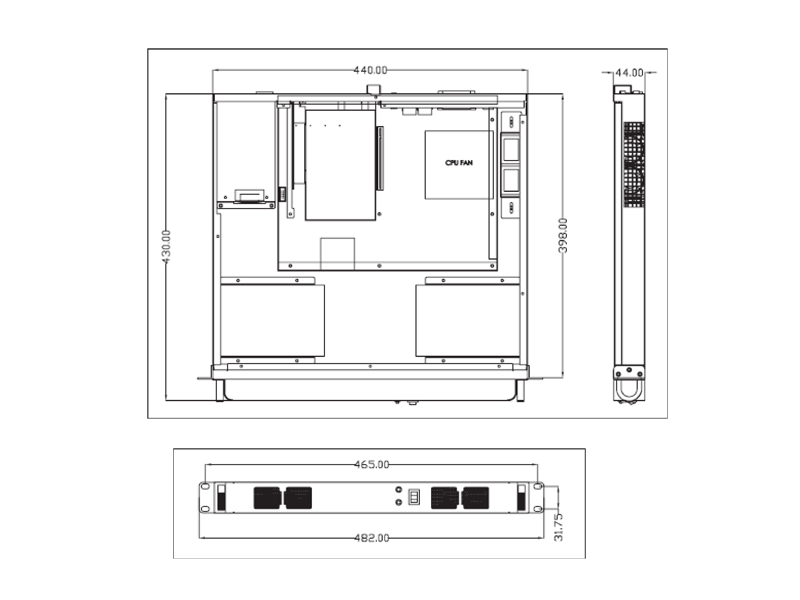

Dimension
19"(W) x 16.93"(D) x 1.75(H)
Weight
40lbs
Environmental
Operating Temperature:0°C ~ 40 °C
Non-operating Temperature: -40°to 70°C
Humidity: 8~90%, non-condensing
Non-operating Relative Humidity: 5 to 95% (non-condensing)

RMC 6155A:
Rack mount computer, Dual-Core CPU, ATX industrial M/B, 1GB memory, 1 x HD, 1U high and 16.93 short depth chassis.
Price:$845.00


Document
Description
Download Link
file iconRMC6155A-SP.pdf
Spec Sheet
  • RMC6155A
    1U high rack mount computer
    Dual-Core Pentium CPU
    ATX industrial mother board
    1 x PCI expansion slot
    2 x 3.5" HD bay
    270W power supply
    16.93" short depth chassis
    Starting at:
    $845.00
RMC6155A
$845.00

The Housing:
  This 1U high rack mount chassis is made of a heavy-duty cold-rolled steel with a drive-protecting front door that locks via two thumbscrews. Front panel controls include an on/off switch, a system reset button, and 2 x LED indicators to monitor power and hard drive activity. Cooling is provided by 2 x 40mm ball-bearing fans. Power is delivered via slim size 110/220 VAC power supply with black color.

Storage Device:
  The chassis has two hidden 3.5" drive bays. Standard configuration includes a SATA hard drive. Other configurations are available.

System Board:
  Standard ATX motherboard with onboard audio, video, and 100/1000BT ethernet. Standard I/Os include 2 x PS/2, 1 x serial, 1 x parallel, 4 x USB 2.0, 2 x RJ-45, 1 x 15-pin VGA, and line-in/micro-in. In addition, a PCI 32 bit slow is available for an add-on card via use of a PCI riser card. Standard configuration include a Dual-Core processor, with low profile fan and heat sink and with a 512MB DDR2 memory. Other CPU speeds and DDR2 memory configurations are available.

Expansion Slots:
  One PCI-32 expansion slot (via use of a riser card).

Power Supply:
  Slim-size 1U 270W ATX power supply.

Mounting:
   Front ears come with a standard 19" rackmount mounting holes that allows for front mounting to any standard 19" rack. Optional system slides allow rear mounting as well to racks from 20 to 26 inches in depth.
