Industrial computer comes with Intel 4th generation Core-i CPU with single board computer and PICMG 1.3 back plane with 2 PCIe (x4 + x16) half size expansion slots. The rear interface ports includes 2 x Gigabit LANs, VGA, 2 x USB 3.0 ports, and 1U high and 17.7 short inch depth rack chassis.
Loading...
Rackmount Computer RMC6157A Front View

RMC6157A

1U Rackmount Computer with Atom Low Power CPU & ITX M/B - RMC5012

RMC5012

RMC6121B

  • 1U rack mount computer
  • 17.7 inch short depth chassis
  • Haswell Core-i CPU with Q87 chipset
  • Industrial SBC with PICMG 1.3 back plane
  • 2 x PCIe (x4 + x16) expansion slots (half-size)
  • 2 x front USB ports
  • 1 x 3.5 inch SATA HD and 1 x slim-DVD optical drive
  • 200W Low Noise power supply
$860.00
Availability: In stock
SKU
RMC6121B
Email
Rack mount computer - Haswell Core-i CPU, SBC with dual Gigabit LANs, PICMG 1.3 back plane with 2 x PCIe (x4 + x16) expansion slots, 1 x HD, 1 x slim-DVD, 200W power supply, 1U high and 17.7 inch depth rack chassis.
Construction
Heavy-duty steel cold-rolled steel
Single Board Computer
Size: full size single board computer
Intel Q87 chipset
Processor: Haswell socket-1150 Core-i processor
Memory: 2 x DIMM memory sockets, DDR3 (up to 16GB)
Watchdog timer: 225 levels, 1 - 255 sec
Dual Gigabit Ethernet LANs
On board VGA + DVI (header) and Audio
SATA ports, 1 x SSD (IDE interface)
5 x COM ports (4 x RS-232, 1 RS-422/485)
1 x parallel ports, 14 x USB ports, 4 x DIO
Device
1 x 3.5" internal SATA HD
1 x DVD-RW
Backplane
2 x PCIe (x4 + x16) expansion slots (half-size)
Front Panel Controls and I/O ports
Power on/off switch
System reset button
2 x USB port
Rear I/O ports
2 x RJ-45 LAN ports + VGA + 2 x USB 3.0
Front Security Door
Security door with 2 x thumb screws
Cooling Fan
3 x 40mm ball-bearing fans (7CFM each)
Power Supply
200W 1U ATX industrial level
Auto-switching power supply for 85V~264V AC input
Color
Black
Dimension
19"(W) x 17.7"(D) x 1.75(H)
Weight
40lbs
Environmental
Operating Temperature:0°C ~ 50 °C
Non-operating Temperature: -40°to 70°C
Humidity: 8~90%, non-condensing
Non-operating Relative Humidity: 5 to 95% (non-condensing)

RMC 6121B:
Rack mount computer, Haswell Core-i CPU, industrial SBC, PICMG 1.3 back plane with x PCIe (x4 + x16) expansion slot, 1 x SATA HD, 1 x slim-DVD
1U high and  17.7" inchshort depth rack mount chassis
Price:$860.00

Document
Description
Download Link
file iconRMC6121B-DATA.pdf
Data Sheet

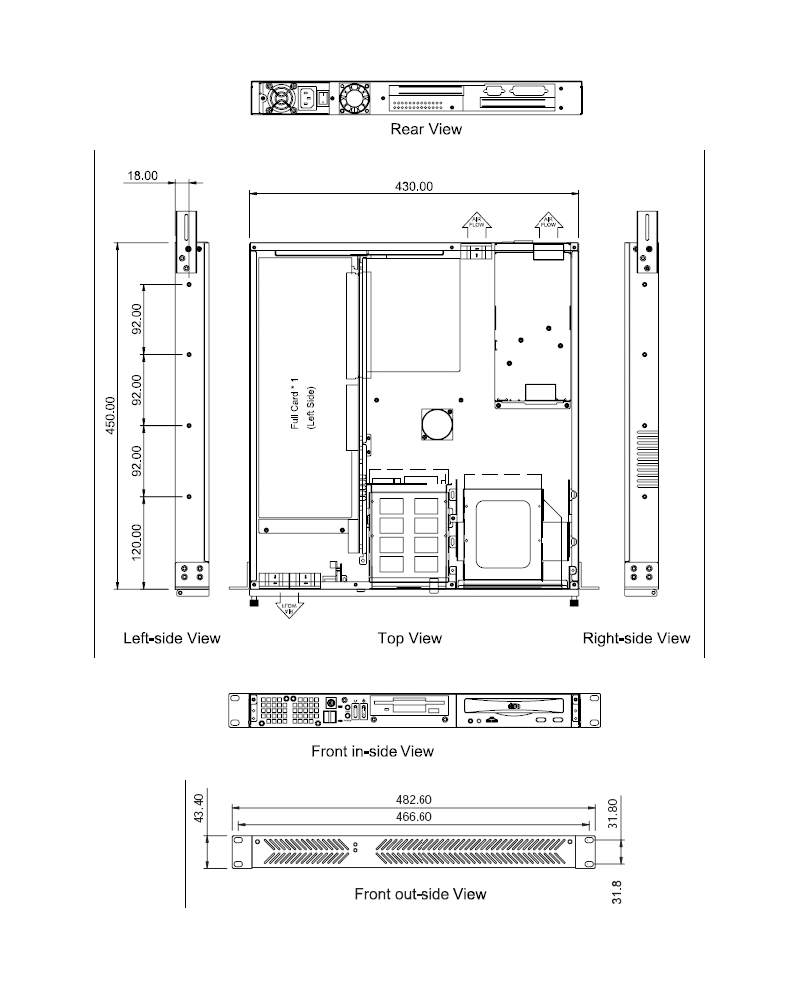

file iconRMC_6121B-dim.pdf
Dimension
  • RMC6121B
    1U rackmount computer
    Haswell single board computer
    PICMG 1.3 back plane
    1 x SBC + 1 x PCIe x4 (half-size) + 1 x PCIe x16 (half-size)
    1 x hard drive , 1 x DVD
    300W power supply
    15.4 inch short depth rack mounr chassis
    Starting at:
    $860.00
RMC6121B
$860.00

The housing
  This 1U high rack mount chassis is made of a heavy-duty cold-rolled steel. The front panel comes with 2 x USB 2.0 interface ports and LED indicators for power/HDD/LAN. Front panel controls include an on/off switch and a system reset button. Short depth rack mount chassis is only 17.7 inch short depth and comes in black.

Storage device
  The rack mount chassis comes with one optical drive bay and one hidden 3.5 inch drive bay. Standard configuration includes an slim type optical storage device and a SATA hard drive. Other configurations are available.

System soard
  The industrial single board computer supports an haswell socket 1150 Core-i process, Intel Q87 chipset, on board VGA, dual Gigabit Ethernet LANs and Audio. Two DIMM DDR3 memory sockets (16GB max) and available for two PCIe (x4 + x16) expansion slots (PCIe card may be limited, half size) to be installed.

Expansion slots
  it offered 2 x half size PCIe (x4 + x16) expansion slot.

Power supply
 The standard 1U ATX 200W 110/220VAC power supply is located in the rear of the chassis.

Mounting
   Rack mounting kits come with a standard 19 inch wide rack mount mounting holes for a standard 19 inch wide rack cabinet. Option for a 20 inch slide rail.
