The RMC5285-B is a 2U rackmount computer designed with adjustable front and rear panels that provide adjustability, compatibility, and accessibility for your system. This 2U system supports a standard ATX motherboard with 13/14th Gen Intel Core processors, 4 x 2.5" external hot-swap drive bays, 4 x easy swap fans for superior cooling, 1 x PCIe 5.0 x16 + 1 x PCIe 3.0 x4 + 2 x PCIe 3.0 x1 + 1 x PCIe 3.0 x16, and a redundant PSU 80+ Platinum power supply.

Loading...
RMC5285 2U 17.7

RMC5285

RK120H 1U Keyboard Drawer w/ 8-Port 2K KVM Switch

RK120H

RMC5285-B

  • 2U high rackmount computer
  • 17.7" short-depth design for space critical applications
  • 13/14th Gen Intel Core processors
  • Standard ATX motherboard
  • 1 x PCIe 5.0 x16 + 1 x PCIe 3.0 x4 + 2 x PCIe 3.0 x1 + 1 x PCIe 3.0 x16 slot
  • Supports up to 4 x 2.5" external hot-swap drive bays
  • Supports GPU card with 2U riser card
  • 4 x easy swap fans for superior cooling abilities
  • 800W 1+1 redundant PSU 80+ Platinum
$1,595.00
Availability: In stock
SKU
RMC5285-B
Email

2U rackmount PC with standard ATX M/B, 13/14th Intel Core i CPU, 4 x 2.5" external hot-swap drive bays, 5 x PCIe slots, and a 2U high 17.7" short-depth rack chassis.

Construction
Heavy-duty preplated SPGC cold-rolled steel
EIA-RS310D industry standard
System Board
Size: Standard ATX motherboard (Low-profile card at rear)
Processor: 13/14th Gen Intel Core processors
Memory: 4 x DIMM memory socket (up to 32GB memory)
On-board Video, LAN, Audio
SATA connector
USB ports
Drive Bays
4 x 2.5" external hot-swap drive bays
Backplanes
2 pcs dual port SATA BP to support 4 x SATA
Expansion Slot
1 x PCIe 5.0 x16 + 1 x PCIe 3.0 x4 + 2 x PCIe 3.0 x1 + 1 x PCIe 3.0 x16
Expansion Slot Size
Height: 111.76 mm (4.4 inches)
Depth: 254 mm (10 inches)
Front Panel Controls
System power on/off switch
System reset button
2 x USB ports
LED Indicators
Power status
LAN activity
Drive activity
Cooling Fan
4 x 60x38mm easy swap fans
Power Supply
800W 1+1 redundant PSU 80+ Platinum
Mounting
Option for 20" slide rail
Color
Black
Gross Weight
28.5 lb / 13 kg (w/ PSU; w/o Rail)

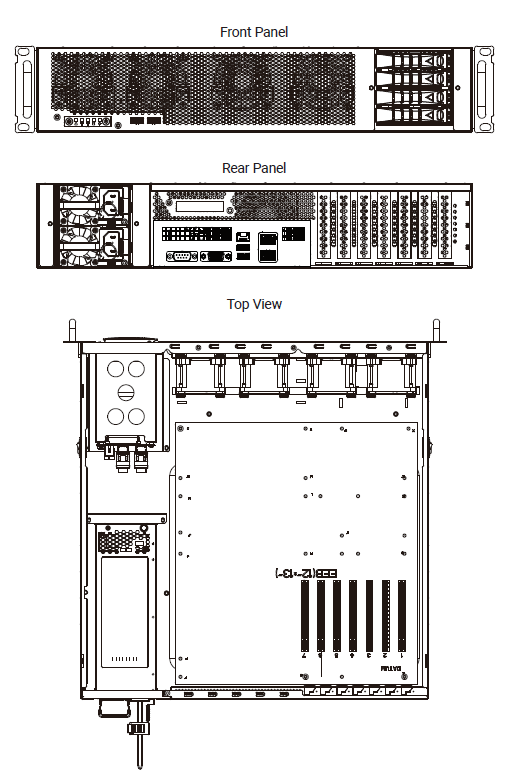

Dimension
17.2"(W) x 17.7"(D) x 3.5"(H)
Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 5%~95%, non-condensing

RMC5285-B:
2U rackmount computer, 13/14th Gen Intel Core i CPU, standard ATX M/B, 1 x PCIe 5.0 x16 + 1 x PCIe 3.0 x4 + 2 x PCIe 3.0 x1 + 1 x PCIe 3.0 x16, 800W 1+1 redundant PSU 80+ Platinum, 17.7" short-depth rack chassis.

  • RMC5285-B
    2U high rackmount computer
    17.7" short-depth rack chassis
    13/14th Gen Intel Core processors
    Standard ATX motherboard
    1 x PCIe 5.0 x16 + 4 x PCIe 3.0 x4 / x1 / x16 slot
    Supports up to 4 x 2.5" external hot-swap drive bays
    Supports GPU card with 2U riser card
    4 x easy swap fans for superior cooling abilities
    800W 1+1 redundant PSU 80+ Platinum
