Industrial computer combined single board computer (SBC) with back plane into a 2U high and 17.7 inch depth rack mount chassis. provides 5 x PCI or PCIe expansion slot and high performance processor for automation control application.
Loading...
Rackmount Computer RMC6155A Front View

RMC6155A

Rackmount Computer RMC7254 Front View

RMC7254

RMC5200

  • 2U high rack mount computer
  • 17.7 inch short depth chassis.
  • Haswell Dual-Core / Quad-Core processor
  • Intel Q87 chipset
  • PICMG 1.3 back plane with 5 PCI expansion slots
  • On board Video / Audio / Dual Gigabit-LANs
  • 1 x SATA HD, 1 x DVD
  • Option for 2 x PCI + 3 PCIe (2 x1 + 1 x16) expansion slots
  • 380W standard ATX power supply
$830.00
Availability: In stock
SKU
RMC5200
Email
Rack mount computer - Haswell Core-i CPU, Q87 chipset, SBC with PICMG 1.3 back plane, 5 x PCI expansion slots, 1 x DVD, 1 x HD, 2U high and 17.7 inch depth rack mount hassis.
Construction
Heavy-duty steel cold-rolled steel
Single Board Computer
Industrial full-size single board computer (PICMG 1.3)
CPU: Socket 1150, Haswell Dual-Core / Quad-Core CPU
Intel Q87 chipset
Memory slot: 2 x 240-pin DIMM DDR3, up to 16GB
On-board Video / Audio
Ethernet: Dual Gigabit LAN
SATA ports: 6 x SATA-600
Watchdog: 1~255 secs Watchdog timer selectable w/Reset/NMI
14 x USB ports, 4 x DIO ports
5 x serial ports, (4 x RS-232, 1 x RS-232/422/485)
1 x PS/2 port
1 x LPT port
Device
1 x 5.25" open drive bay (for DVD optical drive)
1 x 3.5" hidden HD bay
Expansion slot
5 x PCI + 1 SBC
Option for 2 x PCI + 3 PCIe (2 x1+ 1 x16)
Front Panel Controls
Power on/off switch
System reset button
Indicators: LED for Power & HDD Activity
Cooling Fan
3 x 80x25mm cooling fans (42.5 CFM each)
Rear I/O ports
2 x RJ-45 for Ethernet
1 x VGA D-sub 15-pins
2 x USB 3.0 ports
Front Security Door
Metal security door with key-locker
Power Supply
380W PS/2 single ATX power supply
Mounting
Standard 19" rack mount holes
Dimension
19"(W) x 3.5"(H) x 17.7"(D)
483mm x 450mm x 88mm
Weight
35lbs
Environmental
Operating temperature: 0°~45°C (32°~ 113°F)
Relative humidity: 5% ~ 90% @ 40° C, non-condensing
Certifications
RoHS, FCC, CE

RMC 5200
Rack mount computer, Haswell socket 1150 Core-i CPU, industrial SBC computer, 1 x HD, 1 x DVD and PICMG 1.3 back plane.
2U high and 17.7 inch depth rack mount chassis.

Price:$830.00

Document
Description
Download Link
file iconRMC5200-DATA.pdf
Data Sheet

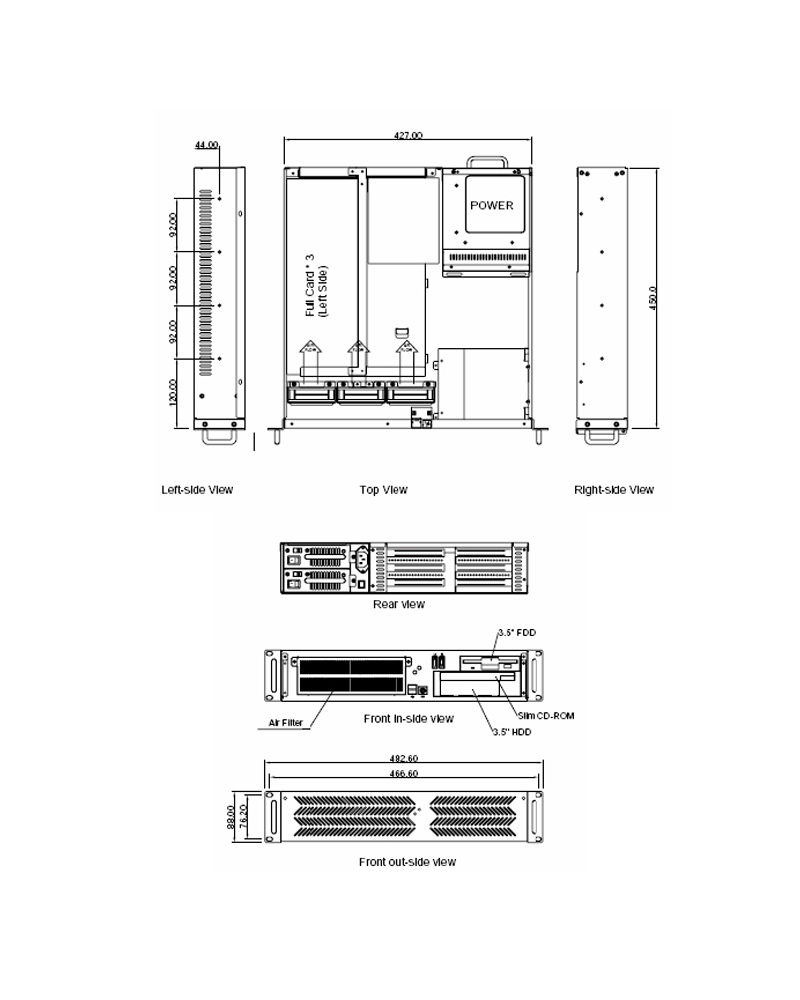

file iconRMC_5200-dim.pdf
Dimension
  • RMC5200
    2U rack mount computer
    Haswell SBC PICMG 1.3 backplane
    5 x PCI + 1 x SBC slots
    On-board VGA/ Dual Gigabit-LANs/Audio
    1 x HD and 1 x DVD
    380W PS/2 power supply
    17.7 inch short rack mount
    Starting at:
    $830.00
RMC5200
$830.00

The chassis
  This 2U high rack mount chassis is made of a heavy-duty cold-rolled steel. Front control panel comes with 2 x USB port and LED indicators for power / HDD / LAN and power on/off switch and one computer system reset button. Compact size chassis has a 17.7 inch depth. Color: Black.

Storage devices
  The rack mount chassis comes with one slim-type optical open drive bay, one 3.5 inch hidden drive bay, and one 5.25 inch open drive bay. Standard configuration includes an optical storage device and a SATA hard drive. Other configurations are available.

Single Board computer  The embedded computer board supports a Haswell sokcet-1150 Dual-Core / Quad-Coreo processor, video, Dual Gigabit Ethernet LANs, audio, 2 x 240-pin DIMM sockets (up to 16GB) and Intekl Q87 chipset with AMI BIOS and 5 x COM prts.

Expansion slots
  5 x PCI expansion slots, option for 2 x PCI + 3 PCIe ( 2 x1 + 1 x16).

Power supply
  The standard PS/2 type ATX power supply is located in the rear of the chassis. Comes with a standard 380W ATX 110/220VAC power supply.

Mounting
  The front mount backet comes with the standard 19 inch rack mounting holes for a standard 19 inch cabinet. Option for 20 inch depth slide rail.
