Industrial computer comes with the low power consumption Atom processor and Mini ITX motherboard in a 1U high 12 inch short-depth rack chassis for space-saving server applications.
Loading...
Rackmount Computer RMC6121B Front View

RMC6121B

Rackmount Computer RMC6155A Front View

RMC6155A

RMC5012

  • 1U high rackmount computer
  • 12 inch short-depth chassis
  • Atom N455 / D525 1.8Hz processor
  • Standard Mini-ITX motherboard
  • 1 x internal SATA HD & 1 GB memory
  • 1 x slim-type DVD & 2 x front USB ports
  • 200W 1U ATX power apply
$895.00
Availability: In stock
SKU
RMC5012
Email
Rackmount computer with the Atom N455 / D525 processor, mini ITX M/B, 1 x DVD, 1 x HD, 200W P/S, and a 1U high 12 inch short-depth chassis.
Construction
Heavy-duty steel cold-rolled steel
Main System
Standard Mini-ITX motherboard
Memory slot: 2 x DIMM memory socket, up to 8GB memory
On board video (VGA or DVI port), On board Audio
On board Gigabit Ethernet LAN
Storage ports: 3 x SATA
4 x USB ports, 1 x PS/2 port, 1 x LPT port
Device
1 x slim open drive bay (for DVD optical device)
1 x 3.5" SATA HD hidden bay
Front Connectors
2 x USB ports
Front Panel Controls
Power on/off switch
System reset button
Indicators: LED for Power & HDD Activity
Cooling Fan
3 x 40mm FANs (7CFM each) on the front panel
1 x 40mm FAN on the back (option)
Power Supply
200W ATX power apply
Mounting
Standard 19" rackmount holes
Weight
16 lb / 7.3 kg

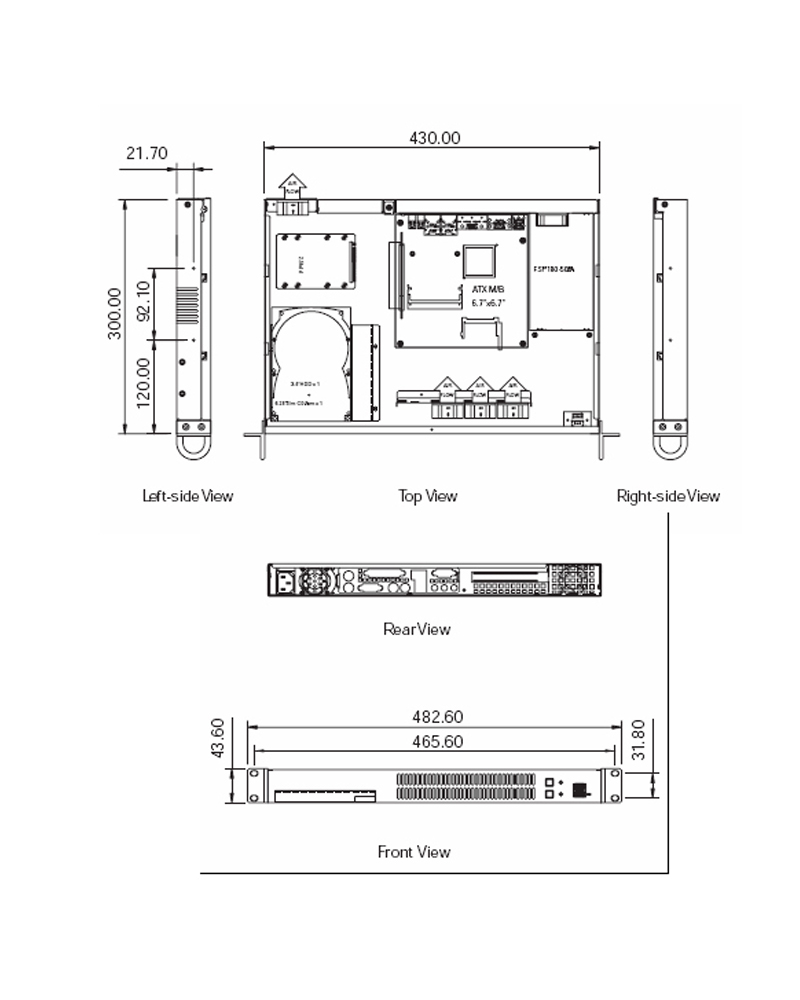

Dimension
19"(W) x 12"(H) x 1.75"(D)
483mm x 300mm x 43mm
Environmental
Operating temperature: 0°~45°C (32°~ 113°F)
Relative humidity: 5% ~ 90% @ 40°C, non-condensing
Certifications
RoHS

RMC5012:
Rackmount computer with the Atom low power consumption CPU, Mini ITX motherboard, 1 x SATA HD,  200W ATX power supply, and a 1U high 12 inch short-depth chassis.

Document
Description
Download Link
file iconRMC5012-SP.pdf
Spec Sheet
  • RMC5012
    1U high rackmount computer
    Single Core Atom D425 1.8GHz CPU
    Standard Mini ITX motherboard
    500GB SATA hard drive
    1GB (1 x 1GB) memory
    Onboard Video, LAN, Audio
    200W 1U ATX power supply
    12" short-depth rackmount chassis
    Starting at:
    $895.00
RMC5012
$895.00

PRODUCT DESCRIPTION
This 1U high rack mount chassis is made of heavy-duty cold-rolled steel with a black wet paint and texture coat finish. The Mini-ITX motherboard is mounted into the rackmount computer chassis. The front panel control bezel includes an on/off switch and two USB ports. The 1U high is a 12-inch short depth rack-mounted chassis and powered by a 1U 200W 110/220VAC ATX power supply. The internal storage device includes one exposed slim type DVD-RW optical drive and one hidden 3.5 inch hard drive. Standard configuration comes with a 1 x 3.5 inch SATA hard drive. The Mini ITX embedded motherboard comes with onboard audio, video, and Ethernet LAN. Standard I/O ports include 4 x USB 2.0, 1 x RJ-45, 1 x video out, line-in, speaker out, and microphone jacks. Standard configuration includes an Atom single-Core processor and 1GB memory. Other memory configurations are available. The front ears come with standard 19-inch rack mounting holes for a standard 19-inch wide cabinet. Option for slide rail and center mounting kit for 2-post rack.
