NOTICE: PRODUCT CURRENTLY UNAVAILABLE. PLEASE VISIT 1U RACKMOUNT COMPUTERS FOR RELATED PRODUCTS.

The RMC5008 is a 1U industrial rackmount computer powered by a low power consumption Atom processor and mini ITX motherboard. The system features 1 x SATA HD, 2 x front USB ports, and a 200W 1U ATX power supply in a 1U high 8.7" short-depth rack chassis.
Loading...
RMC8416

RMC8416

Rackmount Computer RMC6157A Front View

RMC6157A

RMC5008

  • 1U high rack mount computer
  • 8.7 inch short-depth rackmount chassis
  • Atom single-core CPU
  • Mini ITX motherboard
  • 1 x SATA HD
  • 2 x front USB ports
  • 200W 1U ATX power supply
Availability: In stock
SKU
RMC5008
Email
Rackmount computer - Atom CPU, Mini ITX mother board, DVD, 1 x HD, 200W power supply, 1U high and 8.7 inch short depth rack chassis.
Construction
Heavy-duty steel cold-rolled steel
Main system
(Depends on installed M/B)
Standard Mini-ITX mother board
CPU: Atom single-Core / Dual-Core processor
Memory slot: 2 x SODIM sockets,
On board Video , LAN
2 x SATA port
4 x USB ports, 2 x PS/2 ports
1 x LPT port, 1 x RS-232 port
Device
1 x slim open drive bay (for DVD optical device)
1 x 3.5" SATA HD hidden bay
Front Panel Controls
Power on/off switch
System reset button
Indicators: LED for Power & HDD Activity
Cooling Fan
1 x CPU fan with aluminum cooling heat sink
Power Supply
200W ATX power apply
Mounting
Standard 19" rack mount holes
Dimension
19"(W) x 8.7 "(H) x 1.75 "(D)
483mm x 220mm x 43mm
Weight
9lbs
Environmental
Operating temperature: 0°~45°C (32°~ 113°F)
Relative humidity: 5% ~ 90% @ 40°C, non-condensing
Certifications
RoHS

RMC5008:
Rackmount computer, Atom D425 single-Core / D525 Dual-Core 1.8GHz CPU, 1GB memory, SATA HD, 200W P/S, and 1U high 8.7 inch depth rackmount chassis.

Document
Description
Download Link
file iconRMC_5008-data.pdf
Data Sheet

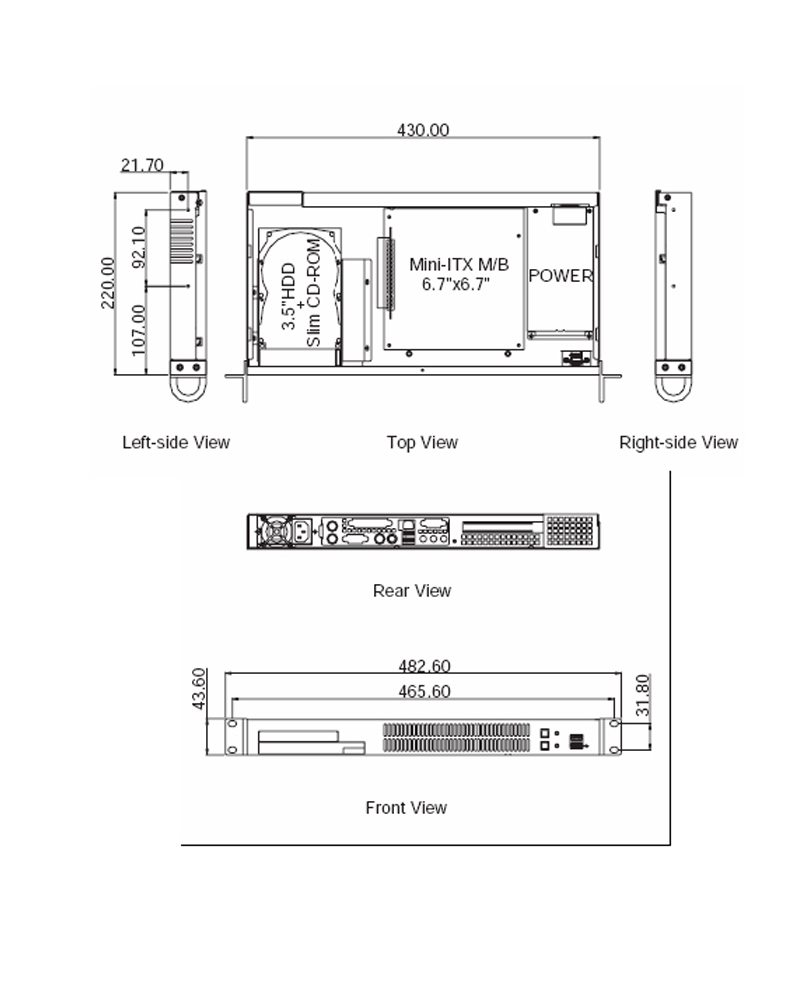

file iconRMC_5008-dim.pdf
Dimension
  • RMC5008
    1U high rackmount computer
    Single Core Atom D425 1.8GHz
    Mini ITX mother board
    1 x slim DVD-RW & 1 x 2.5" HD bay
    200W power supply
    8.7" short depth chassis
    Starting at:
RMC5008

PRODUCT DESCRIPTION
This 1U high rack mount chassis is made of heavy-duty cold-rolled steel. The front panel comes with 2 x USB 2.0 interface ports and LED indicators for power/HDD/LAN. Front panel controls include an on/off switch and a system reset button. The slim chassis has a 8.7" depth. The rackmount computer comes with one slim-type DVD RW optical drive bays and one 3.5 inch hidden HD drive bays. Standard configuration includes an optical drive and a SATA hard drive. The Mini ITX embedded board comes with one RJ-45, one Ethernet LAN, one VGA port, three rear audio ports, four rear USB 2.0 ports, and two front USB 2.0 ports. Other configurations are available. The embedded Mini ITX computer supports an Atom low power consumption processor, an onboard video, and Ethernet LAN. Two SODIMM memory socket (8GB max). The 1U slim type power supply is located on the rear of the rackmount chassis. Comes standard with 200W ATX 110/220 VAC power supply. Rackmount kits come with a standard 19" rack mount mounting holes for a standard 19" rack cabinet. Option for a 1U high 20-inch depth rack mount slide rail.
