The RM6821 is a 21.5" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1920 x 1080 Full HD resolution, 1000-nits high brightness, 5000:1 contrast ratio, and 16.7 million colors. The monitor features VGA + HDMI video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
Loading...
RM6193 8U 19

RM6193

RMW7194 7U 19

RMW7194

RM6821

  • 8U 21.5" high brightness rack LCD monitor
  • 1000-nits high brightness display
  • Supports 1920 x 1080 FHD native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input
  • Option for Resistive or Projected Capacitive touch screen
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,567.00
Availability: In stock
SKU
RM6821
Email
21.5" 1920 x 1080 Full HD rackmount LCD monitor supporting a 1000-nits high brightness display and VGA + HDMI video input in an 8U high rackmount monitor enclosure.
Construction
Heavy-duty steel
LCD Panel
Size: 21.5 inch
Native Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 5000:1
Colors: 16.7 M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.248
Display Area (mm): 476.64H x 268.11V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video input
Standard: VGA + HDMI video input
Option: DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 x DVI-D
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 32W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Mounting
8U high rackmount for a standard 19" wide rackmount cabinet
VESA (100 x 100mm) mounting holes
Casing Color
Black front panel (RAL 9005)
Weight
19.4 lb / 8.8 kg

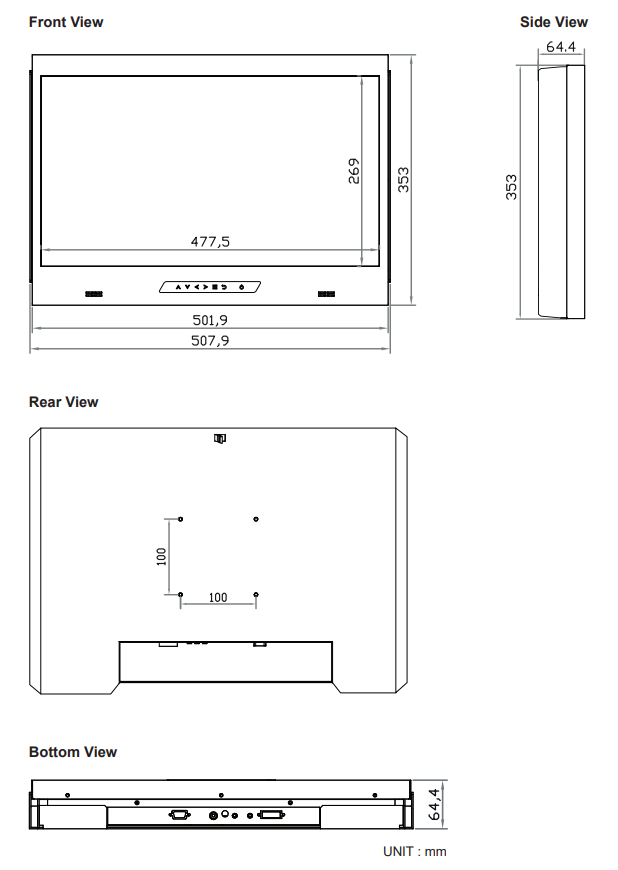

Dimension
Product: 19.8"(W) x 2.5"(D) x 13.9"(H)
Packing: 21.9"(W) x 23.0"(D) x 5.4"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RM6821:
21.5 inch 1920 x 1080 full HD industrial LCD monitor, 1000-nits high brightness display, VGA + HDMI video input, 100/240VAC power input, 8U high rackmount monitor enclosure, Black color.

Document
Description
Download Link
file iconRM6821-SP.pdf
Spec Sheet
file iconRM6821-UM.pdf
User Manual
  • RM6821
    8U 21.5" high brightness rack LCD monitor
    1000-nits high brightness display
    Supports 1920 x 1080 FHD native resolution
    Front OSD (on-screen display) function
    VGA + HDMI video input
    Option for DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input
    Option for Resistive or Projected Capacitive touch screen
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,567.00
RM6821
$1,567.00

PRODUCT DESCRIPTION
The 21.5-inch widescreen full HD 1080P industrial monitor is a Flat LCD panel TFT active type digital to digital which connects to the onboard conversion board. The rackmount monitor offers a 21.5-inch diagonal LCD with 1000 nit high brightness. The ultra-excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution of up to 1920x1080 pixels for the monitor. It provides a 170 x 160-degree viewing angle for unparalleled viewing ability. The aspect ratio is a widescreen 16:10 with a display area of 477 x 268mm. It will display 16.7M colors (True color). Option for Resistive (1-pt) or Projected Capacitive (1-pt or 10-pt) type touch screen is available. The construction of the rugged monitor is of heavy-duty steel. It features all-steel construction with a rack-mountable aluminum bezel. The monitor comes with a metal ruggedized housing to fit into the standard 21.5 " rack cabinet. The tempered glass is mounted in front of the LCD panel to protect against the impact on the LCD panel. One cooler fan is located at the back of the LCD monitor for better cooling. The system is designed to meet military shock, vibration, and environmental standards. The auto-switch power adapter is provided and the monitor is ready to mount into the standard 19-inch rack cabinet. It occupies an 8U rack unit. It also comes with a 100 x 100mm VESA mount.
