The RM6380 is a 20.1" rugged military rackmount LCD featuring 1600 x 1200 resolution, 300-nit brightness, VGA + DVI video input, and a 9U high rackmount enclosure. The enclosure is designed to comply with MIL-STD-810G environmental and MIL-STD-461E EMC testing standards. The display comes with a metal ruggedized housing designed to fit into a standard 19" rack cabinet. Optional upgrades include touch screen technology, 1000-nits high brightness display, dimmer light sensor, optical bonding, additional video inputs, -20°C to 60°C wide working temperature range, and D38999 power input.
Loading...
8U 17.3

RMW7175

RM6380

  • 9U 20.1" rugged military rackmount LCD monitor
  • Supports 1600 x 1200 pixel resolution
  • 300-nit brightness, option for 1000-nit high brightness
  • VGA + DVI video input, option for DP, HDMI, or BNC input
  • ITO glass, option for Resistive or Capacitive type touch screen
  • Option for dimming light sensor and optical bond
  • MIL-STD-810G environmental & MIL-STD-461E EMC compliant
  • Extended working temperature range from -15°C to 55°C
  • AC power input with D38999 MIL-type connector
$3,695.00
Availability: In stock
SKU
RM6380
Email
20.1 inch 1600 x 1200 LCD panel with VGA + DVI-D video input, ITO glass protection, and MIL-STD-810G / 461E compliance in a 9U high rackmount enclosure.
Material
Heavy-duty steel
LCD Panel
Size: 20.1 inch
Resolution: 1600 x 1200
Brightness (cd/m²): 300, option for 1000-nit
Contrast Ratio (typ.): 1000:1
Active Area: 408.0 H x 306.0 V
Pixel Pitch (mm): 0.255 H x 0.255 V
Viewing Angle (H/V): 176° x 176°
Color: 16.7M, 8 bits
Scan Frequencies:
Horizontal 31.5 ~ 80.0KHz
Vertical 65 ~ 75Hz
LCD Protection /
Touch Screen (Option)
ITO glass for EMI protection (standard)
Option for 5-wire Resistive type touch screen with no ITO glass
Option for Capacitive type touch screen with no ITO glass
Video Input
VGA + DVI input
Option for DP, HDMI, HDMI w/ speaker, BNC, or Speaker-Audio input
Front Panel Controls
On-screen display (OSD) buttons
LED indicators for signal input
Light Sensor (Option)
Dimming light sensor
Optical Bonding (Option)
Optical Bonding
Connectors
1 x VGA + 1 x DVI
1 x DP (option)
1 x HDMI (option)
1 x BNC (option)
1 x 3-pin D38999 power connector
Power Supply
AC power input with D38999 MIL-type connector
Option for D38999 9~36V DC power input or D38999 AC power input
Gross Weight
24.25 lb / 11 kg

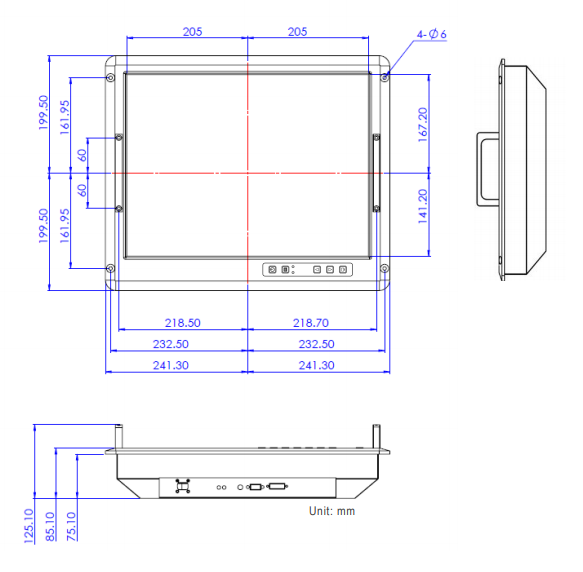

Dimension
19"(W) x 15.71"(H) x 3.35”(D)
Environmental
Operating Temperature: -15°C to 55°C
Storage Temperature: -30°C to 70°C
Humidity: 10 to 95%, non-condensing
Shock: MIL-STD 810G Method 516.6 compliant
Vibration: MIL-STD-810G Method 514.6C-3 Procedure I compliant
Humidity: MIL-STD-810G, Method 507.5-7 compliant
EMC: MIL-STD-461E, CE102, RE102 compliant
Option for -20°C to 60°C wide range working temperature

RM6380:
20.1" rugged military rackmount LCD monitor, 1600 x 1200 resolution, VGA + DVI-D video input, ITO glass with EMI filter, MIL-STD-810G / 461E compliance, AC power input with MIL-type connector, 9U high rackmount enclosure, Black color.

Lead Time: 12~14 weeks

Document
Description
Download Link
file iconRM6380-SP.pdf
Spec Sheet
file iconRM6380-UM(V1-2).pdf
User Manual
file iconRM6380-PA.pdf
PIN Assignment for D38999 Power Input
file iconRM6380-OSD.pdf
OSD Controls
  • RM6380
    9U 20.1" rugged military rackmount LCD monitor
    Supports 1600 x 1200 pixel resolution
    300-nit brightness, option for 1000-nit high brightness
    VGA + DVI video input, option for DP, HDMI, or BNC input
    Option for Resistive or Capacitive type touch screen
    Option for dimming light sensor and optical bond
    MIL-STD-810G environmental & MIL-STD-461E EMC compliant
    Extended working temperature range from -15°C to 55°C
    AC power input with D38999 MIL-type connector
    Starting at:
    $3,695.00
RM6380
$3,695.00



PRODUCT DESCRIPTION
The display is a 20.1 inch LCD panel providing 1600 x 1200 resolution. It is an active type digital to digital which connects to the onboard conversion board. The display offers a 20.1" diagonal LCD with a 300nit brightness and 1000:1 contrast ratio. It has a Pixel Pitch of only 0.255mm and will display 16.7 million colors (True color). The industrial monitor comes with a standard 15-pin VGA connector on the back of the rackmount monitor for your pc system connection. The OSD function lets you adjust the monitor for contrast, balance, horizontal position, vertical position, phase, and brightness. The power on/off switch and OSD buttons are located on the front of the LCD monitor for easy access. The construction of the rugged monitor is of heavy-duty steel. It features all-steel construction with a rack-mountable aluminum bezel. The monitor comes with a metal ruggedized housing to fit into the standard 19" rack cabinet. The AR glass is mounted in front of the panel to protect against the impact on the industrial monitor panel and dust. The systems are designed to meet military shock, vibration, and environmental standards. The 100/240VAC power supply is provided. Option for 24V DC power supply. The rackmount monitor is ready to mount into the standard 19" rack cabinet. It occupies a 9U rack unit.
