The RM6193 is a 19" high brightness rack LCD monitor designed for outdoor applications or environments with high ambient lighting. The LCD panel supports 1280 x 1024 native resolution, 1000-nits high brightness, 1000:1 contrast ratio, and 16.7 million colors. The monitor features VGA + DVI-D video input, easy access to front OSD functions, and an 8U high rack enclosure designed for standard 19" wide rack cabinets. Options are available for touch screen technology, additional video input modules, and DC power input.
Loading...
RM6173 7U 17

RM6173

RM6821 8U 21.5

RM6821

RM6193

  • 8U 19" high brightness rack LCD monitor
  • 1000-nits high brightness display
  • Supports 1280 x 1024 native resolution
  • Front OSD (on-screen display) function
  • VGA + DVI-D video input
  • Option for HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI
  • Option for Resistive or Projected Capacitive touch screen
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,452.00
Availability: In stock
SKU
RM6193
Email
19 inch 1280 x 1024 1000-nits high brightness rackmount LCD monitor with VGA + DVI-D video input and 100/240VAC power input in an 8U high rackmount enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 19 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 1000
Contrast Ratio (typ) : 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.294
Display Area (mm): 376.32H x 270.33V
MTBF (hrs): 30,000
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
Video Input
Standard: VGA + DVI-D video input
Option: HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI input
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 1-pt / 10-pt touch screen - USB port
* Dimension will be changed to 9U after integration
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 DVI-D
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 39 Watt, Standby 2 Watt
Option for 12V / 24V / 48 / 125V DC power input
Mounting
8U high rackmount for a standard 19" wide rackmount cabinet
Weight
12.5 lb / 5.7 kg

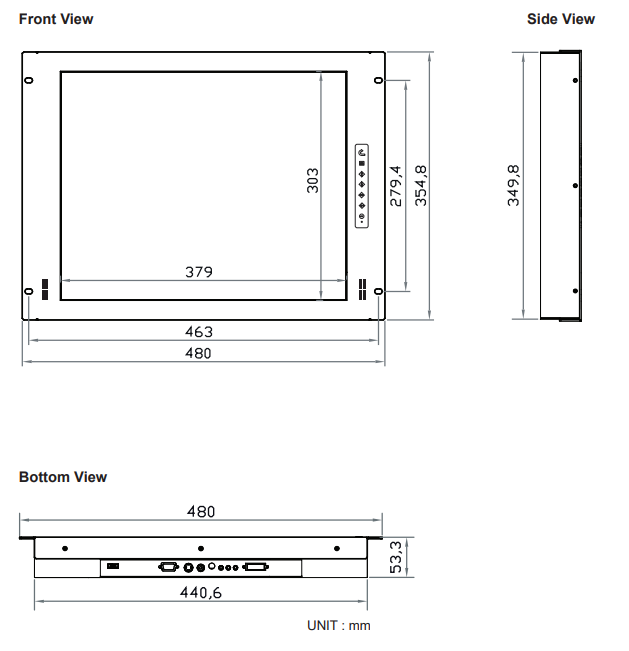

Dimension
Product: 18.9"(W) x 2.1"(D) x 14"(H)
Packing: 21.2"(W) x 5.1"(D) x 20.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RM6193:
19 inch 1280 x 1024 1000-nit high brightness rackmount LCD monitor, VGA + DVI-D video input, 100/240VAC power input, 8U high rackmount monitor enclosure, Black color.

Document
Description
Download Link
file iconRM6193-SP.pdf
Spec Sheet
file iconRM61XX-UM.pdf
User Manual
  • RM6193
    8U 19" high brightness rack LCD monitor
    1000-nits high brightness display
    Supports 1280 x 1024 native resolution
    Front OSD (on-screen display) function
    VGA + DVI-D video input
    Option for HDMI, BNC, MCS, Audio, Speaker, or 3G-SDI input
    Option for Resistive or Projected Capacitive touch screen
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,452.00
RM6193
$1,452.00

PRODUCT DESCRIPTION
The 19 inch provides 1000 nits high brightness LCD panel with LED backlight low power consumption technology. The industrial monitor comes with a standard 15-pin VGA and DVI-D connector on the back of the rackmount monitor for your rackmount server connection. The rackmount monitor offers a 19-inch diagonal LCD with 1000 nit brightness. The ultra excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution of up to 1280 x 1024 pixels for the monitor. It provides an 85 degree horizontal and 80 degree vertical viewing angle for unparalleled viewing ability. The OSD function lets you adjust the LCD monitor for contrast, balance, horizontal position, vertical position, phase, and brightness. It will display 16.7M colors (True color). All the power on/off switch and OSD buttons are located on the front of the rack mount monitor for easy access. Option for a Resistive or Capacitive type touch screen is available. Optional HDMI / BNC / MCS / Audio / Speaker / 3G-SDI input is available. The construction of the 19-inch rugged LCD monitor is of heavy-duty steel. It features all-steel construction with a rack-mountable aluminum bezel. The monitor comes with a metal rugged housing to fit into the standard 19" rack cabinet. The tempered glass is mounted in front of the LCD panel to protect against the impact on the LCD panel. One cooler fan located at the back of the LCD monitor for better cooling. The system is designed to meet military shock, vibration, and environmental standards. The monitor comes standard with one 6 foot 15-pin VGA cable for the industrial monitor and the touch screen monitor comes with an additional 5-wire com port or USB cable. The monitor also comes with a standard auto-sensing 100/240VAC power input. Option for 12V / 24V / 48V / 125V DC power input. The rackmount monitor is ready to mount into the standard 19-inch cabinet and occupies an 8U high rack unit.
