The RM6190N is an 8U 19-inch rackmount LCD monitor designed for industrial and commercial applications. It supports a native resolution of 1280 x 1024, providing clear and high-quality visuals. This monitor has VGA and HDMI video inputs, with the option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI inputs, making it compatible with a wide range of devices. It also comes with the option for Resistive or Projected Capacitive touch screen - USB, offering versatility to meet different needs. The RM6190N has an auto-sensing 100 to 240VAC, 50/60Hz power input, making it easy to use in different regions. The RM6190N is a reliable and robust solution for rackmount LCD monitor needs in various industrial and commercial settings.
Loading...
RM6170 7U 17

RM6170

RM6190N

  • 8U 19" rackmount LCD monitor
  • Supports 1280 x 1024 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
  • Option for Resistive or Projected Capacitive touch screen - USB
  • Option for front IP65-rated bezel protection
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$760.00
Availability: In stock
SKU
RM6190N
Email

19" 1280 x 1024 rackmount LCD monitor with VGA + HDMI video input, front OSD membrane controls, and a 100/240VAC power input in an 8U high rackmount enclosure.

Construction
Heavy-duty steel
Option for IP65 rated front bezel protection
LCD Monitor
Size: 19 inch
Max Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ.) : 1000:1
Colors: 16.7M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.294
Display Area (mm): 376.32H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Video Input
Standard: VGA + HDMI video input
Option: DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 1-pt / 10pt touch screen- USB port
*Dimension will be changed to 9U if Projected Capacitive touch screen is selected
Connector
1 x VGA + 1 x HDMI
Front Panel Control
Power on/off switch
OSD membrane switch
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption: Max. 22 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
8U high rackmount monitor for a standard 19" wide rackmount cabinet
Casing Color
Black front panel (RAL 9005)
Weight
12.5 lb / 5.7 kg

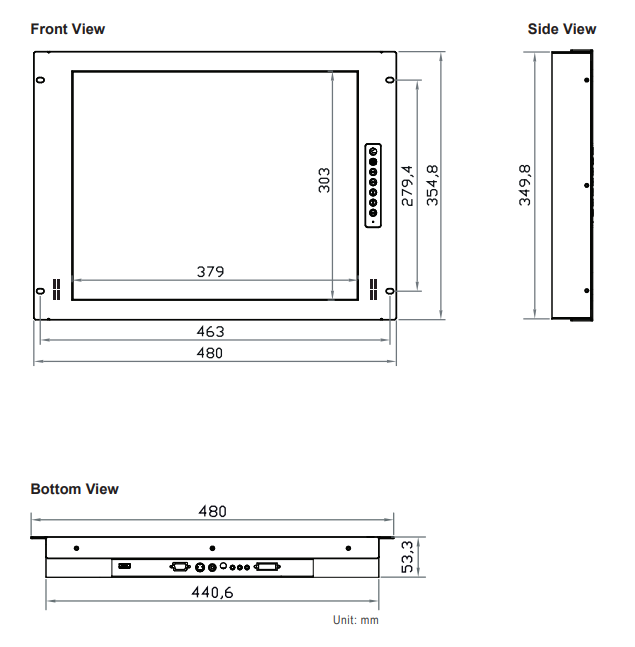

Dimension
Product: 18.9"(W) x 2.1"(D) x 14"(H)
Packing: 21.2"(W) x 5.1"(D) x 20.8"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RM6190N:
19 inch 1280 x 1024 industrial LCD panel, VGA + HDMI video input, 100/240VAC power input, 8U high rackmount enclosure, Black color.

Document
Description
Download Link
file iconRM6190N-SP(V1-2).pdf
Spec Sheet
file iconRM6190N-UM(V1-2).pdf
User Manual
  • RM6190N
    8U 19" rackmount LCD monitor
    Supports 1280 x 1024 native resolution
    Front OSD (on-screen display) function
    VGA + HDMI video input
    Option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
    Option for Resistive or Projected Capacitive touch screen - USB
    Option for front IP65-rated bezel protection
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $760.00
RM6190N
$760.00

PRODUCT DESCRIPTION
The RM6190N is an 8U 19-inch rackmount LCD monitor designed for industrial and commercial applications where space is at a premium. The monitor supports a native resolution of 1280 x 1024 pixels and 16.7 million colors, providing clear and sharp images. The front OSD (on-screen display) function allows for easy and convenient adjustment of settings, such as brightness and contrast. The monitor features VGA and HDMI video inputs, as well as options for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input, providing a variety of options for connecting to different devices. It also has an option for Resistive or Projected Capacitive touch screen with USB interface, making it easy to interact with the monitor. Additionally, there is an option for front IP65-rated bezel protection, protecting the monitor from dust and water damage. The RM6190N is easy to power with its auto-sensing 100 to 240VAC, 50/60Hz power input, and options for 12V, 24V, 48V, or 125V DC power input. This makes it compatible with a variety of power sources and allows for flexibility in installation. The monitor is designed to meet the needs of demanding industrial and commercial environments and is built to last.
