The RM6170 is a 7U rackmount LCD monitor that provides a space-saving solution for various industrial applications. It features a 17" display with a native resolution of 1280 x 1024, delivering clear and crisp visuals for your working environment. The monitor supports VGA and HDMI video inputs and offers options for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI inputs, providing you with versatile connectivity options. The RM6170 supports an auto-sensing power input of 100 to 240VAC, 50/60Hz, and you can also choose options for 12V/24V/48V/125V DC power input. Whether you're in the office, factory, or field, the RM6170 rackmount monitor is a reliable and flexible solution that can meet your display needs.
Loading...
RM6190N 8U 19

RM6190N

RM6210 9U 20.1

RM6210

RM6170

  • 7U 17" rackmount LCD monitor
  • Supports 1280 x 1024 native resolution
  • Front OSD (on-screen display) function
  • VGA + HDMI video input
  • Option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
  • Option for Resistive or Projected Capacitive touch screen - USB
  • Option for front IP65-rated bezel protection
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$701.00
Availability: In stock
SKU
RM6170
Email

17" 1280 x 1024 rackmount LCD monitor with VGA + HDMI video input, front OSD controls, 100/240VAC power input, and a 7U high rackmount monitor enclosure.

Construction
Heavy-duty steel
Option for IP65 rated front bezel protection
LCD Monitor
Size: 17 inch
Max Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ.) : 1000:1
Colors: 16.7M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.264
Display Area (mm): 337.92H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Video input
Standard: VGA + HDMI video input
Option: DVI-D, BNC, Audio, Speaker, 3G/HD/SD-SDI input
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 1pt / 10-pt touch screen - USB port
*Dimension will be changed to 8U if Projected Capacitive touch screen is selected
Front Panel Control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 DVI-D
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption: Max. 22 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Mounting
7U high rackmount monitor for a standard 19" wide rackmount cabinet
Casing Color
Black front panel (RAL9005)
Weight
13.4 lb / 6.1 kg

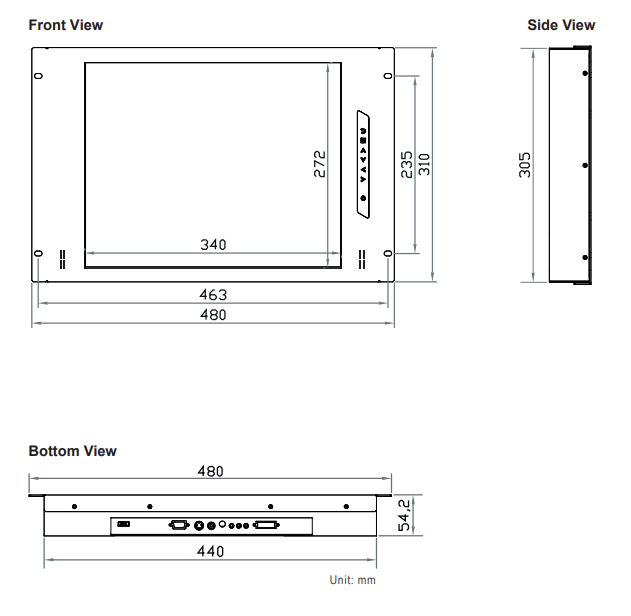

Dimension
Product: 18.9"(W) x 2.1"(D) x 12.2"(H)
Packing: 20.8"(W) x 4.9"(D) x 19.5"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

RM6170:
17 inch 1280 x 1024 rackmount LCD monitor, VGA + HDMI video input, 100/240VAC power input, 7U high rackmount enclosure, Black color.

Document
Description
Download Link
file iconRM6170-SP(V1-2).pdf
Spec Sheet
file iconRM6170-UM(V1-2).pdf
User Manual
  • RM6170
    7U 17" rackmount LCD monitor
    Supports 1280 x 1024 native resolution
    Front OSD (on-screen display) function
    VGA + HDMI video input
    Option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
    Option for Resistive or Projected Capacitive touch screen - USB
    Option for front IP65-rated bezel protection
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $701.00
RM6170
$701.00

PRODUCT DESCRIPTION
The RM6170 is a 7U rackmount LCD monitor that provides a space-saving solution for various industrial applications. With its 7U form factor, it can easily fit into a standard rack enclosure, providing a space-saving solution that is perfect for control rooms, data centers, or other locations where space is limited. The RM6170 features a 17" display with a native resolution of 1280 x 1024, delivering clear and crisp visuals for your working environment. With its front OSD function, you can easily adjust the display settings to your desired specifications. The monitor supports VGA and HDMI video inputs and offers options for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI inputs, providing you with versatile connectivity options. You can also choose between Resistive or Projected Capacitive touch screen options for user-friendly control, which can be connected via USB. Additionally, the RM6170 offers an option for front IP65-rated bezel protection, ensuring durability and reliability in harsh working environments. The RM6170 supports an auto-sensing power input of 100 to 240VAC, 50/60Hz, and you can also choose options for 12V/24V/48V/125V DC power input. Whether you're in the office, factory, or field, the RM6170 rackmount monitor is a reliable and flexible solution that can meet your display needs.
