Regular Rack LCD Monitors (16.2" to 20")
16.2" to 20" rackmount LCD monitors designed for broadcasting and industrial monitoring applications. The rackmount monitors offer VGA / DVI-D / HDMI input and feature front built-in OSD function buttons that allow users to conveniently control and adjust the monitor's settings. The LCD panels are integrated into a 6U to 9U high rackmount enclosure designed for a standard 19-inch wide rackmount cabinet. Options are available for an IP65 rated front bezel, Resistive or Projected Capacitive type touch screen, HDMI / BNC / Audio / SDI input, and DC power input.
Regular Rack LCD Monitors (16.2" to 20")
16.2" to 20" rackmount LCD monitors featuring VGA / DVI-D / HDMI input, front OSD (on-screen display) functions, and 100/240VAC power input in a 6U to 9U high rack enclosure. The rackmount monitors are built to last and designed for a standard 19" rackmount cabinet for broadcasting and other industrial applications.
-
![]()
- 17.3" 4K 3840 x 2160 6U rackmount LCD monitor
- Supports 1920 x 1080 & 1600 x 1200/16.7M color (8-bit)
- Option for projected capacitive 10-pt / resistive1-pt
- Front OSD (on-screen display) function
- DP 1.4 + HDMI 1.4/2.0 video input
- 2 x 2W stereo speaker
- Option for Resistive or Projected Capacitive touch screen - USB
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V / 250V DC power input
-
![]()

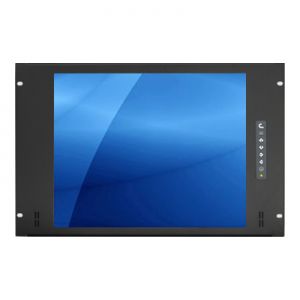

- 7U 17" rackmount LCD monitor
- Supports 1280 x 1024 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
- Option for Resistive or Projected Capacitive touch screen - USB
- Option for front IP65-rated bezel protection
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()
- 8U 19" rackmount LCD monitor
- Supports 1280 x 1024 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, BNC, Audio, Speaker, or 3G/HD/SD-SDI input
- Option for Resistive or Projected Capacitive touch screen - USB
- Option for front IP65-rated bezel protection
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()
- 9U 20.1" rackmount LCD monitor
- Supports 1600 x 1200 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, Audio, Speaker, or 3G/HD/SD-SDI input
- Option for Resistive 1-pt touch screen - USB
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()
- 6U 17.3" FHD rackmount LCD monitor
- Supports 1920 x 1080 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, DP, Audio, Speaker, or 3G/HD/SD-SDI input
- Option for Resistive or Projected Capacitive touch screen - USB
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()
- 6U 16.2" WUXGA rackmount LCD monitor
- Supports 1920 x 1200 native resolution
- Front OSD (on-screen display) function
- VGA + DVI-D + HDMI video input
- Option for BNC, MSC, Audio, Speaker, or 3G-SDI input
- Option for Resistive or Projected Capacitive touch screen - USB
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()

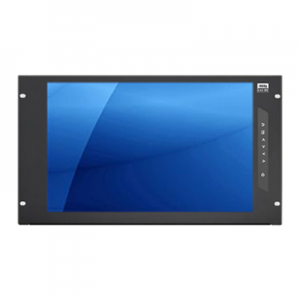

- 7U 19" widescreen rackmount LCD monitor
- Supports 1440 x 900 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- Option for Resistive 1-pt touch screen - USB
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
