Rack Monitor Drawers - 1U Pull Out Drawer
Rack monitor drawers featuring a 1U pull-out drawer design for industrial applications, data centers, and space-limited applications. Housed in a 1U space-saving drawer with a flip-up monitor design, the consoles provide convenient and easy access to the system when mounted in a rack cabinet. The rackmount monitors are available in sizes from 16.2 inches up to 20.1 inches and feature VGA / DVI-D / HDMI video input and optional touch screen displays.
Rack Monitor Drawers - 1U Pull Out Drawer
16.2" to 20.1" rack monitor drawer featuring a flip-up monitor design integrated into a compact 1U high rack mount drawer designed for standard 19" rack cabinets.
-
![]()

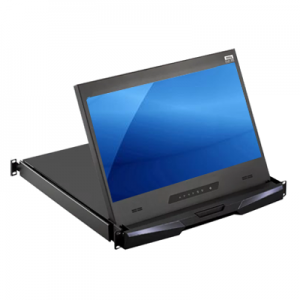

- 1U 17" rackmount LCD monitor drawer
- Supports 1280 x 1024 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- Option for Resistive or Projected Capacitive touch screen
- 19.7" (500mm) short-depth drawer design
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()

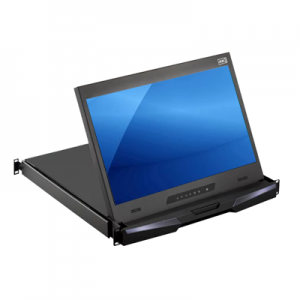

- 1U 19" rackmount LCD monitor drawer
- Supports 1280 x 1024 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- Option for Resistive 1-pt touch screen - USB port
- 19.7" (500mm) short-depth drawer design
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()

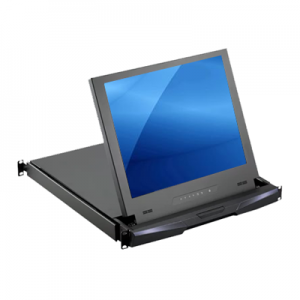

- 1U 20.1" rackmount LCD monitor drawer
- Supports 1600 x 1200 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, BNC, Audio, Speaker, or 3G-SDI input
- Option for Resistive 1-pt touch screen
- 25.6" (650mm) depth drawer design
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()

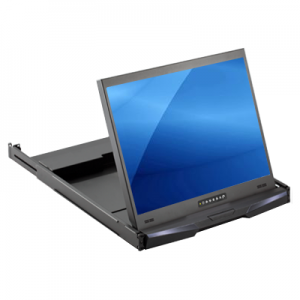

- 1U 16.2" WUXGA rackmount LCD monitor drawer
- Supports 1920 x 1200 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI + DVI-D video input
- Option for Speaker or 3G-SDI input
- Option for Resistive 1-pt touch screen
- 18.1" (460mm) short-depth drawer design
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()

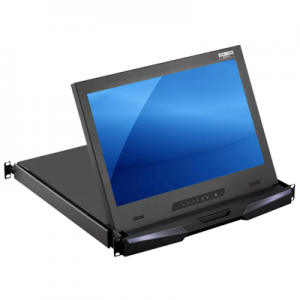

- 1U 17.3" FHD rackmount LCD monitor drawer
- Supports 1920 x 1080 native resolution
- Front OSD (on-screen display) function
- VGA + HDMI video input
- Option for DVI-D, DP, BNC, Audio, Speaker, or 3G-SDI input
- Option for Resistive or Projected Capacitive touch screen
- 18.9" (480mm) short-depth drawer design
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
-
![]()
- 1U 17.3" 4K UHD rackmount LCD monitor drawer
- Supports 3840 x 2160 native resolution
- Front OSD (on-screen display) function
- Display Port 1.2 video input
- Option for HDMI or 3G-SDI input
- Option for Resistive or Projected Capacitive touch screen
- 18.9" (480mm) short-depth drawer design
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V DC power input
