The RMC6440A is a 4U high rackmount computer designed for businesses and data centers. The rack mount computer supports a standard ATX motherboard with the latest Intel processors. It features 3 x 5.25" & 1 x 3.5" external drive bays, 2 x front USB ports, and a drive panel door with a keylock. The RMC6440A is fully customizable and offers options including additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows OS.
RMC6440A
- 4U high rackmount computer
- 17.8" short-depth rackmount chassis
- Core™ Ultra/14th/10th Generation Intel processors
- Standard ATX motherboard
- 7 x expansion slots
- 8GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
- 1 x 3.5" external & 3 x 5.25" external drive bays
- Front drive panel door with keylock
- Standard ATX power supply, option for 650W , 850W or 1000W ATX power supply
In stock
SKU
RMC6440A
4U high rackmount computer with a standard ATX M/B, Intel processors, and 1 x 3.5" & 3 x 5.25" external drive bays in a 4U high 17.8" short-depth rackmount chassis.
- Construction
- Heavy duty cold rolled electroplated steel
- Standard ATX M/B
- Size: Standard ATX motherboard
Option: 650W,850W or 1000W ATX power supply
Processor:
RMC6440A-A: Core™ Ultra processors
RMC6440A-B: Intel 14th Generation Processor
RMC6440A-C: Intel 10th Generation Processor / Long-Life Cycle M/B (Through Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports
- Drive Capacity
- 1 x 3.5” external drive bay
3 x 5.25” external drive bays
- Expansion Slot
- 7 x expansion slots
- Front Panel Control
- Power ON/OFF button
System Reset button
2 x USB ports
- LED Indicator
- LED indicators for Power ON/OFF & HDD Activity
- Security
- Drive panel door with keylock
- Air Filter
- Removable and washable air filter inside front panel
- Cooling Fan
- 1 x 120mm (78cfm) ball bearing fan
- Power Supply
- Standard ATX power supply
Option for 650W,850W or 1000W ATX power supply
- Color
- Black
- Weight
- 40 lb / 18.14 kg

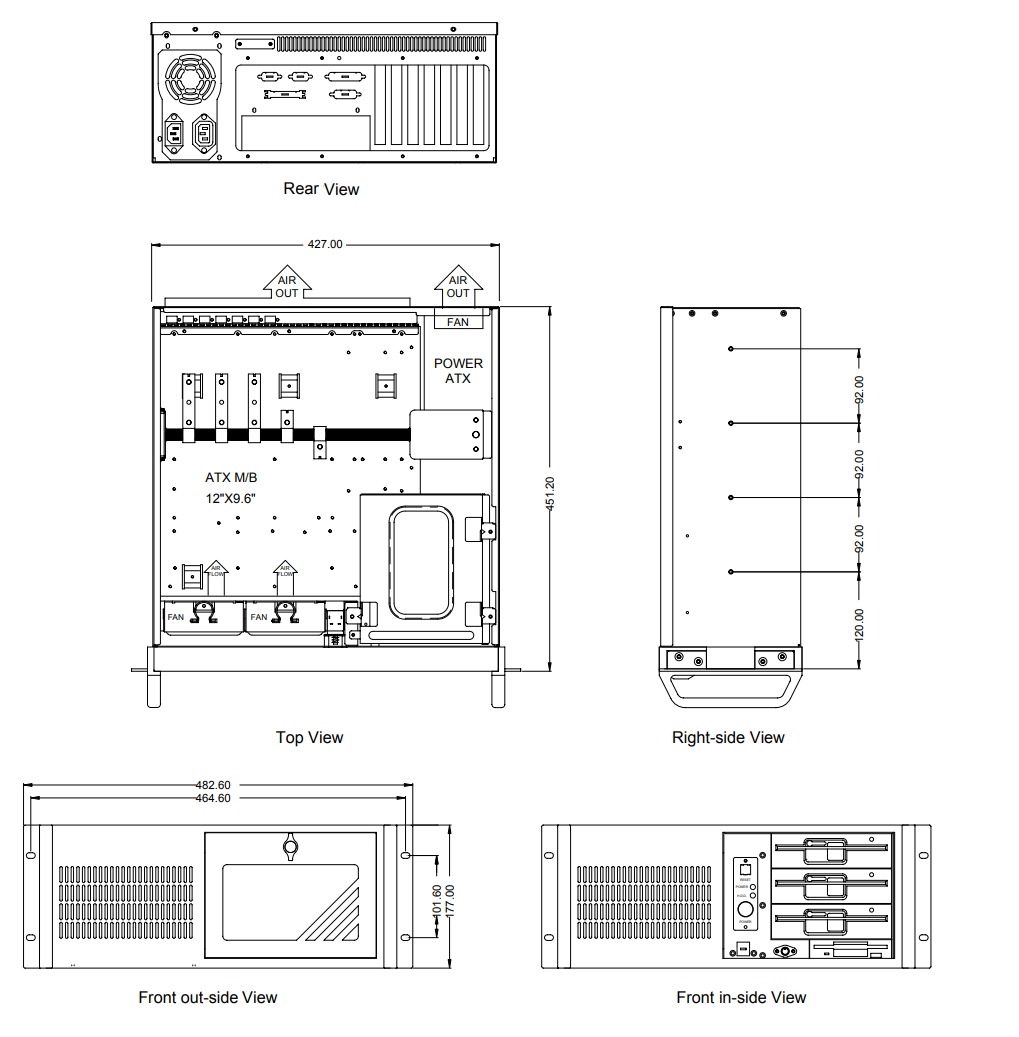

- Dimension
- 19"(W) x 7"(H) x 17.8"(D)
- Environmental
- Operating Temperature: 0°C to 55°C
Humidity: 5~95%, non-condensing
RMC6440A-A:
4U high rackmount computer, INtel Core Ultra processors, standard ATX motherboard, 8GB memory, Standard ATX power supply, 4U high 17.8” depth rack chassis, Black color.
RMC6440A-B:
4U high rackmount computer, Intel 14th Generation processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, Standard ATX power supply, 4U high 17.8” depth rack chassis, Black color.
RMC6440A-C:
4U high rackmount computer, Intel 10th Generation processors, long-life cycle industrial motherboard, 8GB DDR4 memory, 7 x expansion slots, standard ATX power supply, 4U high 17.8” depth rack chassis, Black color.
Document
Description
Download Link
RMC6440A-SP04.pdf Spec Sheet
