The RMC6343A is a 3U high rackmount computer supporting the latest Intel processors and standard or long-life ATX motherboards. The rackmount PC features 3 x 5.25" & 1 x 3.5" external drive bays, 1 x 3.5" internal drive bay, and 7 x expansion slots in a 3U high 17.8" short-depth rackmount chassis. The RMC6343A is fully customizable and provides optional upgrades including additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows OS.
RMC6343A
- 3U high rackmount computer
- 17.8" short-depth rackmount chassis
- Core™ Ultra processors/14th/10th Generation Intel processors
- Standard ATX motherboard
- 7 x expansion slots
- 8GB RAM (Up to 64GB) & 250GB NVMe M.2 SSD
- 3 x 5.25" & 1 x 3.5" external drive bays & 1 x 3.5" internal drive bay
- Two steel front doors with one keylock
- 500W 2U single ATX power supply
In stock
SKU
RMC6343A
3U high rackmount computer featuring the latest Intel processors, ATX motherboards, 3 x 5.25" & 1 x 3.5" external drive bays, 7 x expansion slots, and 2 x front USB ports in a 3U high 17.8" short-depth rack chassis.
- Construction
- Heavy duty cold rolled steel
EIA RS-310C 19" rackmount standard
- Standard ATX M/B
- Size: Standard ATX motherboard
Processor:
RMC6343A-A – Intel Core™ Ultra processors
RMC6343A-B – Intel 14th Generation Processor
RMC6343A-C – Intel 10th Generation Processor / Long Life Cycle M/B (Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports
- Drive Bays
- 3 x 5.25” & 1 x 3.5" external drive bays
1 x 3.5” internal drive bay
- Expansion Slot
- 7 x expansion slots
- Front Panel Control
- Power ON/OFF button
System Reset button
2 x USB ports
- Security
- Two steel front doors with one keylock
- Air Filter
- Removable and washable air filter inside front door
- Cooling Fan
- Middle: 4 x cooling fans
- Power Supply
- 500W 2U single ATX power supply
- Color
- Black
- Weight
- 33.1 lb /15 kg
- Dimension

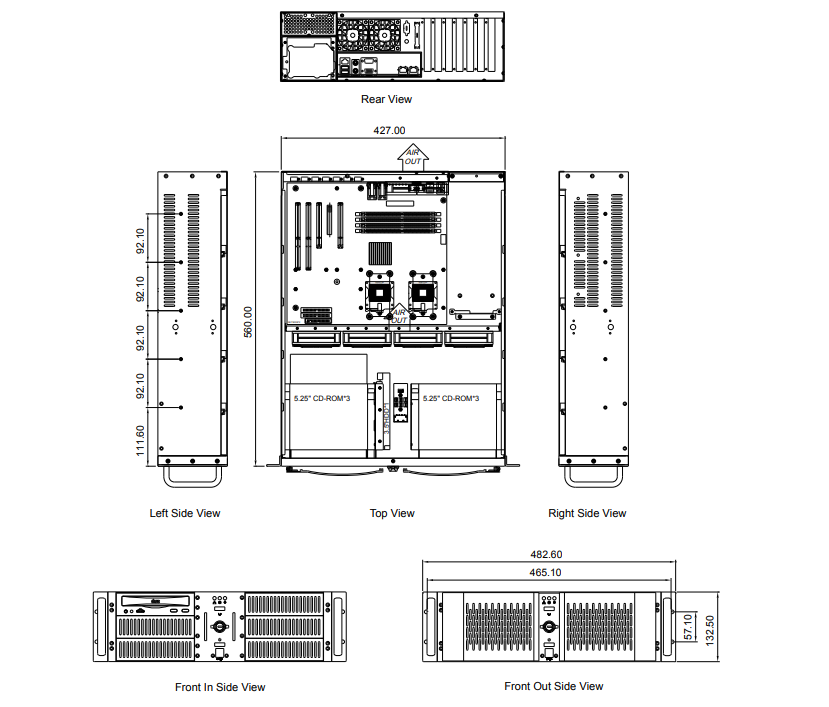

- 19"(W) x 22.1"(D) x 5.2"(H)
- Environmental
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 5~95%, non-condensing
RMC6343A-A:
3U high rackmount computer, Intel Core™ Ultra processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, 500W 2U single ATX power supply, 3U high 17.8" short-depth rack chassis, Black color.
RMC6343A-B:
3U high rackmount computer, Intel 14th Generation processors, standard ATX motherboard, 8GB memory, 7 x expansion slots, 500W 2U single ATX power supply, 3U high 17.8" short-depth rack chassis, Black color.
RMC6343A-C:
3U high rackmount computer, Intel 10th Generation processors, long-life cycle industrial ATX motherboard, 8GB memory, 7 x expansion slots, 500W 2U single ATX power supply, 3U high 17.8" short-depth rack chassis, Black color.
Document
Description
Download Link
RMC6343A-SP.pdfSpec Sheet
