Open frame monitor with a 21.5 inch 1920 x 1080 Full HD industrial LCD panel, VGA + DVI-D video input, VESA mount (100 x 100mm), and an open frame metal enclosure. Option for Resistive / Capacitive / Projected Capacitive type touch screen, HDMI / DP / Audio / Remote Controller / SDI input, HDMI modules, MCS multi-display OSD controller, and DC power input.
Loading...
19

PMW6190

17

PMH8170

PMW6220

  • Open frame metal construction
  • 2.1" short-depth metal rugged construction
  • 21.5" 1920 x 1080 Full HD industrial LCD monitor
  • VGA + DVI-D video input
  • Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input
  • Option for Resistive, Capacitive, or PCAP touch screen - USB
  • Universal or VESA (100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
Availability: In stock
SKU
PMW6220
Email

21.5" 1920 x 1080 full HD open frame LCD monitor with VGA + DVI-D video input, universal or VESA mount, and an open frame metal enclosure.

Construction
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 21.5 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170°x 160°
Active Area (mm): 476.64H x 268.11V
Colors: 16.7 M, 8-bit
MTBF (hrs): 30,000
Video Input
VGA + DVI-D video input
Option for HDMI, DP, Audio, Remote Controller, or 3G/HD/SD-SDI input
Touch Screen (Option)
Resistive, Capacitive, or Projected Capacitive type touch screen monitor - USB
HDMI Module (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch
OSD membrane switch
OSD Menu Control
OSD membrane switch control for brightness, contrast,
phase & clock, color, H & V position, auto-tune
Option for MCS multi-display OSD menu control via serial port
Mounting Type
Universal mount or VESA (100mm) mount
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 28W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
14.7 lb / 6.7 kg

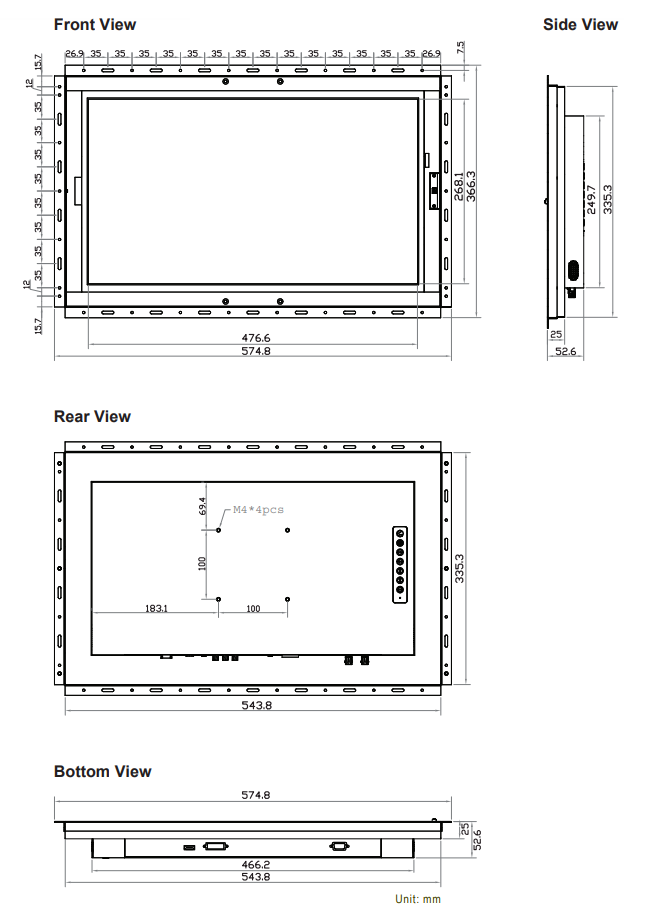

Dimension
22.6”(W) x 2.1"(D) x 14.4"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC

PMW6220:
21.5" 1920 x 1080 Full HD industrial LCD monitor, VGA + DVI-D video input, 100/240VAC power input, open frame metal enclosure, Black color. Option for Resistive / Capacitive / Projected Capacitive type touch screen, HDMI / DP / Audio / Remote Controller / SDI input, HDMI modules, MCS multi-display OSD controller, and DC power input.

Document
Description
Download Link
file iconPMW6220-SP(V1-2).pdf
Spec Sheet
file iconPMW6220-UM.pdf
User Manual
file iconMCS-UM(V1-2).pdf
MCS User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
