NOTICE! : PRODUCT EOL

Sunlight readable open frame monitor with a 42 inch 1920 x 1080 full HD 1500-nit high brightness LCD panel, VGA + DVI + HDMI video input, Audio + Remote Controller, universal or VESA mount, and an open frame metal construction.
Loading...
FES5510

FES5510

PM6171

PM6171

PMH9420

  • Open frame metal construction
  • 3.9" short depth casing
  • 42 inch 1920 x 1080 full HD LED backlight industrial monitor
  • 1500 nits high brightness LCD panel
  • VGA + DVI-D + HDMI + Audio
  • Option for TV (analog) and MCS OSD controller
  • Option for projected capacitive touch screen
  • Universal / VESA (100mm) mount ready
  • 100/240VAC power input, option for DC power supply
$4,395.00
Availability: In stock
SKU
PMH9420
Email

42" 1920 x 1080 full HD 1500-nit high brightness open frame monitor with VGA + DVI + HDMI video input and an open frame metal construction.

Material
Heavy duty steel
LCD Panel
Size: 42 inch
Max Resolution: 1920 x 1080 FHD
Brightness (cd/m²): 1500
Contrast Ratio (typ.): 3000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 930 x 523
Colors: 16.7M
Backlight: LED
MTBF (hrs): 50,000
Video Input
VGA + DVI-D + HDMI + Audio + remote controller
Option for TV (analog) input
OSD menu control
OSD membrane switch control for
Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune
Option for MCS multi-display OSD menu control
1 x RS-232 link port & x 2 RJ-45 ports in/out ports
Cascade up to 64 monitors
RS-232 (link to computer) port
RJ 45 port ( in/out ports between each monitor)
(Cat5 or Cat6 cable, up to 300 meters between each monitor)
Touch screen (option)
Projected Capacitive type touch screen monitor with USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Universal mount or VESA (100mm) mount
Power supply
External auto-sensing 100 to 240VAC, 50/ 60Hz power adapter
Consumption: Max. 200 Watt, Standby 20 Watt
Option for 24V / 48V DC power supply
Weight
57.6 lb / 26.13 kg

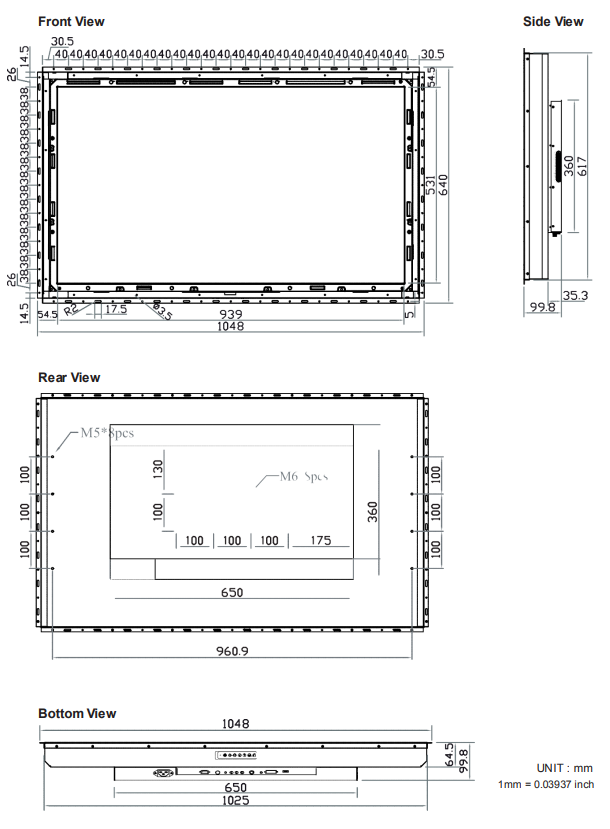

Dimension
41.3"(W) x 25.2"(H) x 3.9"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -5°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 5~500Hz 1G RMS random vibration
Certification
FCC, CE

PMH9420:
42 inch 1920 x 1080 Full HD 1500-nit high brightness industrial monitor, VGA + DVI-D + HDMI + Audio + remote controller, OSD menu control, pen frame metal enclosure, Black color. Option for projected capacitive type touch screen, TV input, MCS multi-display OSD controller, auto or switch dimming, and DC power supply.

Document
Description
Download Link
file iconPMH9420-SP.pdf
Spec Sheet
file iconPMH9420-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
  • PMH9420
    42" 1920 x 1080 1500-nits LED LCD monitor
    VGA + DVI + HDMI + Audio input
    Option for TV input & MCS OSD controller
    Option for projected capacitive type touch screen
    Open frame casing with front mounting bracket
    Universal mount or VESA (100mm) mount
    100/240VAC power adapter
    Option for 24V or 48V DC power supply
    Starting at:
    $4,395.00
PMH9420
$4,395.00

PRODUCT DESCRIPTION
The 42-inch (1920x1080) 1500-nits widescreen high brightness industrial LCD panel is an active type digital to digital which connects to the onboard conversion board. The LCD monitor comes with VGA + HDMI + DVI-D + Audio input on the back of the panel mount monitor for your PC system connection. The OSD function lets you adjust the LCD monitor for the best viewing angle. All the OSD buttons are located on the back of the LCD monitor. Option for capacitive type touch screen monitor with USB or RS-232 port is available. Anti-reflective and optical bonding for LCD monitor display improvements is available for outdoor sunlight readable applications. The monitor comes with an open frame ruggedized metal housing that is ready for universal or VESA mounting to fit into your applications. PMH9420 comes standard with one 6' VGA cable for LCD monitor, Optional 10' and 15' VGA cables are available. The touch screen monitor comes with an additional USB or RS-232 cable. The high brightness panel mount monitor is ready to universal mount or VESA mount.
