Sunlight readable open frame monitor with a 19 inch 1280 x 1024 1000-nit LCD panel, VGA + DVI-D video input, and an open frame metal enclosure. Option for Resistive or Projected Capacitive type touch screen, HDMI / DP / Audio / SDI input, auto-dimming or dimming switch, and DC power input.
Loading...
17

PMH8170

19

PMH9190

PMH8190

  • 19" high brightness open frame LCD monitor
  • Supports 1280 x 1024 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + DVI-D video input
  • Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
  • Option for Resistive or PCAP touch screen - USB
  • Universal & VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,244.00
Availability: In stock
SKU
PMH8190
Email
19" 1280 x 1024 1000-nit sunlight readable open frame monitor with VGA + DVI-D video input, 100/240VAC power input, and an open frame metal construction.
Material
Heavy-duty steel
LCD Panel
Size: 19 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.294
Display Area (mm): 376.32H x 301.06V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Video Input
Standard: VGA + DVI-D
Option: HDMI, BNC, 3G-SDI input, or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
Dimming (Option)
Auto dimming or Dimming switch with IP54 protection
Rear Panel Controls
Power on/off switch
OSD membrane switch
Mounting Type
Universal or VESA (100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter
1 x Power cord
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 39 Watt, Standby 4 Watt
Option for 12V / 24V / 48V / 125V DC power input
Weight
12.5 lb / 5.7 kg

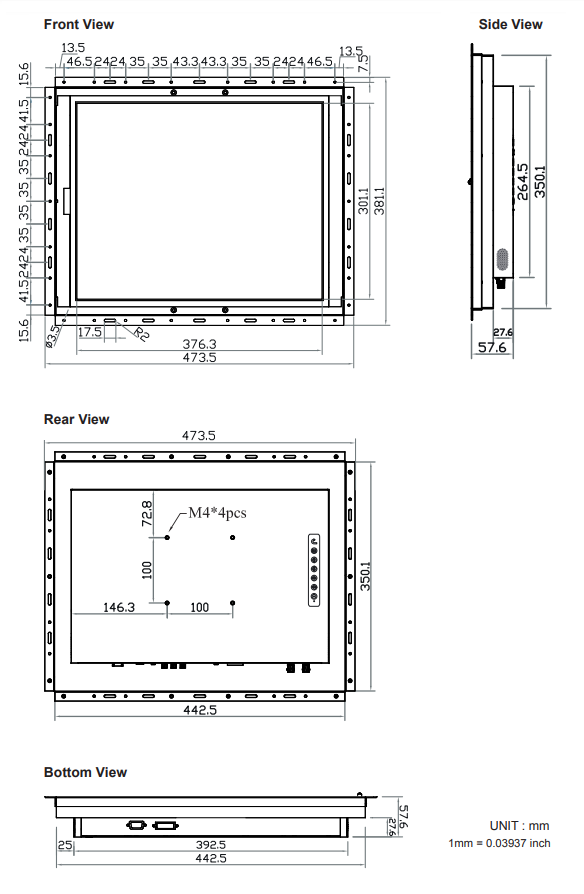

Dimension
18.6"(W) x 2.3"(D) x 15"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

PMH8190:
19" high brightness open frame LCD monitor, 1280 x 1024 native resolution, 1000-nits high brightness panel, VGA + DVI-D video input, VESA (100 x 100mm) mount, 100/240VAC power input, open frame enclosure, Black color.

Document
Description
Download Link
file iconPMH8190-SP.pdf
Spec Sheet
file iconPMH8190-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
  • PMH8190
    19" high brightness open frame LCD monitor
    Supports 1280 x 1024 native resolution
    1000-nits high brightness sunlight readable display
    VGA + DVI-D video input
    Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
    Option for Resistive or PCAP touch screen - USB
    Universal & VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,244.00
PMH8190
$1,244.00

PRODUCT DESCRIPTION
The 19 inch 1280 x 1024 LED backlight industrial monitor is a 1000 nits high brightness active type LCD panel for outdoor and sunlight readable industrial display applications. The industrial monitor comes with a VGA + DVI-D video input connector on the back of the monitor for your industrial computer connection. Option for HDMI, DP, Audio, 3G/HD/SD-SDI, and Remote Control. The OSD function lets you adjust the LCD display for the best viewing angle. Option for MCS OSD menu controls up to 64 monitors. All the OSD buttons are located on the back of the monitor. Option for resistive or Capacitive type multiple or single-point touch screen for industrial automation control display applications. The monitor comes with a rugged metal open frame construction for universal or VESA mount industrial display application. It comes standard with one 6' VGA cable for the industrial monitor. Option for touch screen monitor (USB type). It comes with a 100/240VAC auto-switch external power adapter. Option for DC power supply. The open frame monitor comes with a front mounting bezel for wall mount application or rear VESA (100mm) mounting holes for VESA mount application.
