PRODUCT EOL NOTIFICATION: THE REPLACEMENT PRODUCT IS PMW6120 12" WIDESCREEN OPEN FRAME LCD MONITOR

Panel mount monitor a 12.1 inch 1024 x 768 350-nit LED back light LCD panel with VGA video input port and -30 to 70 degree C wide range working temperature in a rugged metal open frame monitor enclosure.
Loading...
PM-S0120

PM-S0120

PM-S0150

PM-S0150

PM-S0125

  • Open frame monitor with front mounting bracket
  • 12.1 inch 1024 x 768 LED backlight monitor
  • 350-nits high brightness LCD panel
  • -30 to 70 degree C wide range working temperature
  • VGA video input, Option for DVI, DVI+HDMI, or SV+AV
  • Option for touch screen
  • Option for light or motion sensor
  • Option for 700 / 1000 nits high brightness panel
  • Panel/VESA (75mm) mount ready
  • External AC adapter, option for 24VDC power input
Availability: In stock
SKU
PM-S0125
Email
12.1 inch 1024 x 768 LED back light 350-nit LCD with VGA port and -30 to 70 degree C wide range working temperature, integrated into a metal open frame monitor, Option for touch screen, DVI, HDMI or SV+AV input, 700-nits / 1000-nits panel, motion or light sensor & 24VDC input.
Material
Heavy duty steel
LCD Panel
Size: 12.1 inch
Max Resolution: 1024 x 768
Brightness: 350 nits
Contrast Ratio (typ) : 550:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 245.8 x 184.3
Colors: 262K
Signal Input: VGA
Backlight: LED
MTBF (hrs): 35,000
Option 700 / 1000 nits high brightness panel
Option digital signage (stand-alone), MP 480P/1080P
Option motion sensor or light sensor
Video input
VGA video input
Option for DVI or DVI + HDMI or SV + AV
Touch screen (Option)
Resistive, Capacitive or SAW type touch screen, USB port
Protection (Option)
Protected glass (AR/AR with anti-vandal/AG)
Rear panel control
power on/off switch
OSD membrane switch
Audio System
2W speaker x 2
Mounting Type
Open frame monitor with front mounting bracket
VESA (75mm) mounting holes
Connectors
1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug
Power supply
External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
Option for 24VDC power supply
Weight
9.92lbs

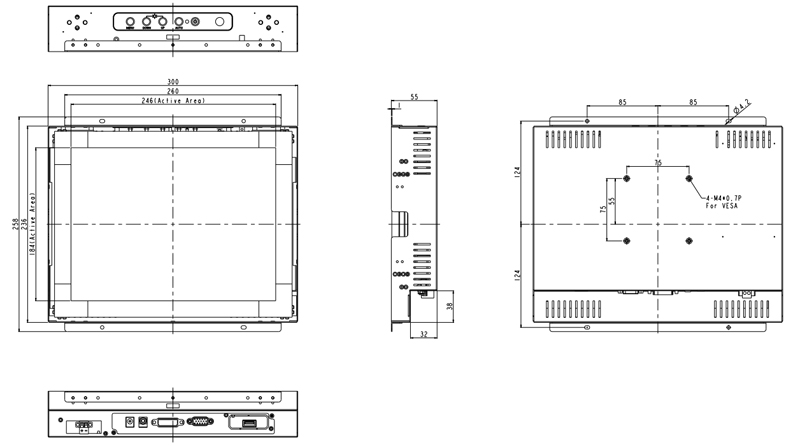

Dimension
11.81"(W) x 10.16"(H) x 2.17"(D)
Environmental
Operating: -30°C to 70°C (22°F to 158°F)
Storage: -30°C to 80°C (22°F to 176°F)
Relative humidity: 10~90%, non-condensing
Certification
FCC, CE

PM-S0120:
12.1 inch 1024 x 768 350-nit high brightness LCD panel & open frame monitor, VGA video input, black color.
Option for touch screen, SV / AV / DVI / HDMI, high brightness panel, motion sensor, light sensor, digital signage (stand alone) & DC power supply.

Document
Description
Download Link
file iconPM-S0125-SP.pdf
Spec Sheet
  • PM-S0125
    12.1 inch 1024 x 768 panel mount monitor
    350-nits high brightness LCD panel
    Option for 700 and 1000-nits sunlight readable LCD panel
    Option for light and motion sensor
    15-pin VGA video input
    Option for DVI, SV+AV video input
    Option for touch screen
    External 110/220VAC power adapter
    Option for 24VDC power input
    Option for AR or AG glass protection
    Option for digital sigbage - stand alone
    Open frame monitor with front mounting bracket and VESA mounting holes
    Starting at:
PM-S0125

PM-S0125

PM-S0125 features an open frame monitor of 12.1 inch 1024 X 768 TFT LCD with a wide range operating temperature, VGA video input, is ready to mount, external AC adapter, and has multiple customizable options to add on for extra features and protection.

Structure Features
With the wide range of operating temperature from -22°F to 158°F (-30°C to 70°C), this heavy-duty steel unit is able to survive during extreme weather in harsh conditions. The relative humidity can withstand 10~90%, non-condensing. With a slim design of 11.81"(W) x 10.16"(H) x 2.17"(D) and weighing at 9.92 lbs, it is easy installations with the front mounting bracket and VESA mounting holes.

LCD Display Panel
The 12.1 inch displays a maximum resolution of 1024 x 768, 350-nits brightness, 550:1 contrast ratio, 262K colors, mean time between failure at 35,000 hours, and with LED backlight. The multiple customizable options to add on are 700 or 1,000-nits high brightness, digital signage (stand alone) at MP 480P or 1080P, motion sensor or light sensor, resistive, capacitive, or SAW type touch screen with USB port, and protected glass (AR/AR with anti-vandal/AG).

Video Input Specifications
The video input is VGA with option for DVI or DVI and HDMI or SV and AV. The audio system is of 2W speaker x 2. The connectors include one VGA port (15 pin female S-Sub), PC Audio (stereo headphone jack), and DC power plug. The power supply is of external auto-sensing 90 to 260VAC, 50/60Hz power adapter with option for 24VDC power supply.
