NOTICE: PRODUCT CURRENTLY NOT AVAILABLE. RELATED PRODUCT: PM6104 - 10.4" 800 X 600 OPEN FRAME MONITOR

Loading...
APS9015

APS9015

PM-S0120

PM-S0120

PM-S0104

  • Open frame monitor with front mounting bracket
  • 10.4 inch 800 x 600 LED backlight monitor
  • 350-nits high brightness LCD panel
  • -30 to 80 degree C wide range working temperature
  • VGA video input, Option for DVI or SV+AV
  • Option for touch screen
  • Option for light or motion sensor
  • Option for 700 / 1000 nits high brightness panel
  • Panel/VESA (75mm) mount ready
  • External AC adapter, option for 24VDC power input
Availability: In stock
SKU
PMS0104
Email
10.4 inch 800 x 600 LED back light 350-nit high brightness LCD with VGA port and -30 to 80 degree C wide range working temperature, integrated into a metal open frame monitor enclosure, Option for touch screen, DVI or SV+AV input, 700 / 1000-nits panel, motion or light sensor & 24VDC nput.
Material
Heavy duty steel
LCD Panel
Size: 10.4 inch
Max Resolution: 800 x 600
Brightness: 350 nits
Contrast Ratio (typ) : 400:1
Viewing Angle (H/V): 140° x 120°
Active Area (mm): 211.2 x 158.4
Colors: 262K
Signal Input: VGA
Backlight: LED
MTBF (hrs): 35,000
Option 700 / 1000 nits high brightness panel
Option digital signage (stand alone), MP 480P
Option motion sensor or light sensor
Video input
VGA video input
Option for DVI or SV + AV
Touch screen monitor (Option)
Resistive, Capacitive or SAW type touch screen, USB port
Protection (Option)
Protected glass (AR/AR with anti-vandal/AG)
Rear panel control
power on/off switch
OSD membrane switch
Audio System
2W speaker x 2
Mounting Type
Open frame monitor with front mounting bracket
VESA (75mm) mounting holes
Connectors
1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug
Power supply
External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
Option for 24VDC power supply
Weight
9.92lbs

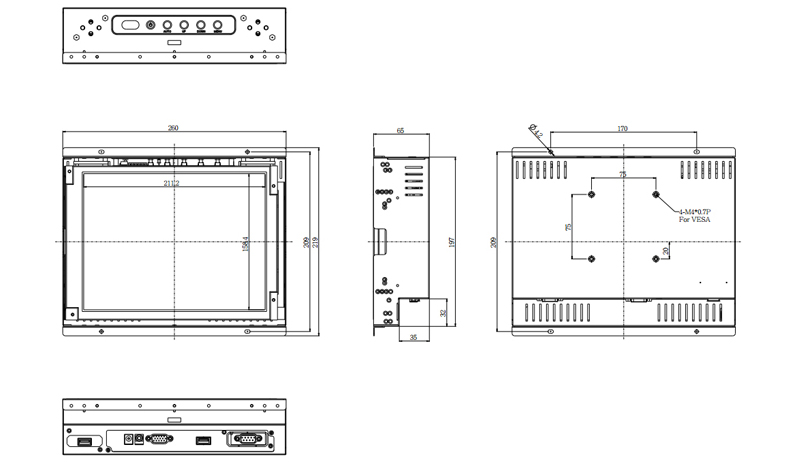

Dimension
10.24"(W) x 8.62"(H) x 2.56"(D)
Environmental
Operating: -30°C to 80°C (22°F to 176°F)
Storage: -30°C to 80°C (22°F to 176°F)
Relative humidity: 10~90%, non-condensing
Certification
FCC, CE

PM-S0104:
10.4 inch 800 x 600 350-nit high brightness LCD panel & open frame monitor, VGA video input, black color.
Option for touch screen, SV / AV / DVI, high brightness panel, motion sensor, light sensor, digital signage (stand alone) & DC power supply.
Price start from: $525.00

Document
Description
Download Link
file iconPM-S0104-SP.pdf
Spec Sheet
  • PM-S0104
    10.4 inch 800 x 600 panel mount monitor
    350-nits high brightness LCD panel
    Option for 700 and 1000-nits sunlight readable LCD panel
    Option for light and motion sensor
    15-pin VGA video input
    Option for DVI, SV+AV video input
    Option for touch screen
    External 110/220VAC power adapter
    Option for 24VDC power input
    Option for AR or AG glass protection
    Option for digital sigbage - stand alone
    Open frame monitor with front mounting bracket and VESA mounting holes
    Starting at:
PM-S0104

PM-S0104

PM-S0104 features an open frame industrial monitor with thin-film-transistor (TFT) LCD screen, a technology to improve image qualities such as addressability and contrast and can withstand a wide range of operational temperature from 22°F to 176°F (-30°C to 80°C).With a wide operating temperature, it can work in very harsh environment in very low temperature in winter or very high temperature in summer outdoors.

Designed with LED backlights which allow for thinner panel designs that deliver low power consumption, the 10.4 inch displays a resolution of 800 x 600 with 350-nits brightness and 400:1 contrast ratio. With active area of 211.2 x 158.4 mm, it has 262K colors and MTBF at 35,000 hours. There are multiple options available to add on such as 700 or 1000-nits high brightness, digital signage (stand alone) at MP 480P, resistive, capacitive or SAW type touch screen (USB port), motion sensor or light sensor, DVI or SV+AV, and protected glass (AR/AR with anti-vandal/AG).

The wide range operating temperature can withstand from 22°F to 176°F (-30°C to 80°C) and relative humidity at 10~90%, non-condensing. The slim design of the unit at 9.92 lbs and 10.24"(W) x 8.62"(H) x 2.56"(D) can be easily installed via front mounting bracket or VESA mounting holes. The power supply uses external auto-sensing 90 to 260VAC, 50/60Hz power adapter.

The connectors include VGA port (15 pin female D-Sub), PC Audio (stereo headphone jack), and DC power plug. The audio system uses 2W speaker x2.
