Military-grade panel PC with a 10.4 inch 1024 x 768 resistive type touch screen monitor, Intel Celeron N2930 1.83GHz CPU, 1 x GbE LAN + 1 x COM + 2 x USB ports, D38999 connectors, and MIL-STD-416F / 810G military testing compliance.
Loading...
15

PCM8415

12.1

PCM8012

PCM8011

  • Fully IP67 rated rugged enclosure
  • 10.4 inch 1024 x 768 LED backlight monitor
  • 5-wire Resistive type touch screen monitor
  • 400-nits high brightness LCD panel, option for 1000-nits
  • Intel Celeron N2930 1.83GHz embedded system
  • 1 x GbE LAN, 1 x COM, 2 x USB 2.0 (D38999 connectors)
  • MIL-STD-810G -15°C to 60°C wide range working temperature
  • Wide range 9~36V DC power input
$2,975.00
Availability: In stock
SKU
PCM8011
Email
10.4" 1024 x 768 military-grade panel PC with resistive type touch screen, Celeron N2930 1.83GHz CPU, fully IP67 rugged enclosure, and MIL-STD-461F/810G compliance.
Construction
Fully IP67 rated rugged enclosure
LCD Panel
Size: 10.4 inch
Max. Resolution: 1024 x 768
Brightness (cd/m²): 400-nits, option for 1000-nits high brightness
Contrast Ratio (typ.): 1000:1
Viewing Angle: -88 ~88(H); -88~88(V)
Backlight: LED
Colors: 16.2M
LCD Enhancement
Optical bonding
Option for optical bonding + EMI filter + UV protection
Touch Screen
5-wire resistive type touch screen monitor
Front Panel Controls
Power ON/OFF & Reset button
LED indicators for power and storage
System
CPU: Intel Celeron N2930 1.83GHz
Memory: DDR3 SO-DIMM 4GB, Max. 8GB
Graphic: Integrated Intel HD Graphics
Ethernet: Intel WG82574L GbE
Audio: Realtek ALC886 HD Audio Codec
Chipset: Fintek F81866
Storage
mSATA SSD 64GB, max. 128GB
Power Supply
Wide range 9~36V DC power input
Power Consumption: 30 watts (typical)
Option for external AC power adapter
Connectors
(D38999 Connectors)
1 x RJ45 GbE LAN (D38999/24WB35PN)
1 x RS-232 (D38999/24WB35PN)
2 x USB 2.0 (D38999/24WB35PN)
1 x 9~36V DC Input t (D38999/24A98BN)
Mounting
VESA (75 x 75mm, 100 x 100mm) and panel mount ready
Weight
8.82 lb / 4 kg

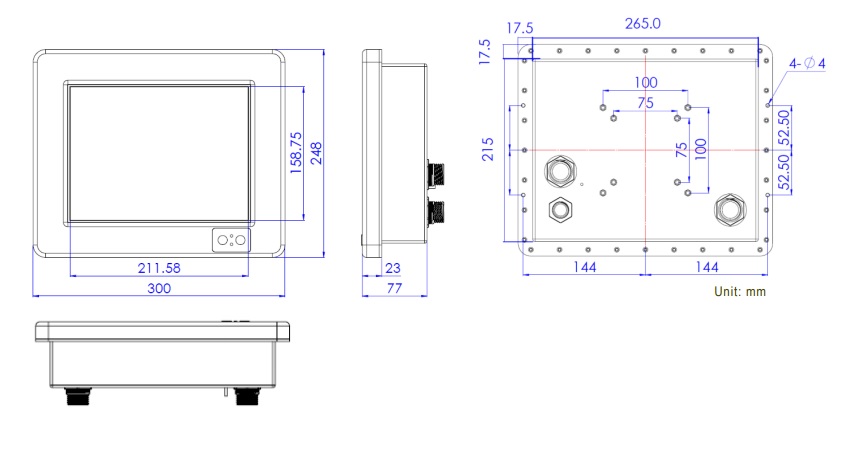

Dimension
11.02"(W) x 9.45"(H) x 2.68"(D)
Environmental
Operating Temperature: -15°C to 60°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10%~95%, non-condensing
Shock: MIL-STD-810G Method 516.6
Vibration: MIL-STD-810G Method 514.6C-3
Humidity: MIL-STD-810G Method 507.5-7
High Temperature: MIL-STD-810G Method 501.5-II
Low Temperature: MIL-STD-810G Method 502.5
EMC: MIL-STD-461F Compliance
Salt Fog: MIL-STD 810G, Method 509.5
Mold Growth: MIL-STD-810G, Method 508.6

PCM8011:
10.4 inch 1024 x 768 military-grade panel PC, 5-wire resistive type touch screen, optical bonding, Celeron N2930 1.83GHz CPU, 4GB DDR3 memory, 1 x LAN + 1 x COM + 2 x USB, fully IP67 rated rugged enclosure, MIL-STD-461F / 810G compliance, wide range 9~36V DC power input.

Document
Description
Download Link
file iconPCM8011-SP.pdf
Spec Sheet
file iconPCM8011-UM.pdf
User Manual
