17" fully IP66 rated anti-corrosion stainless steel Core i5-4200U touch Panel PC for food processing indystry

Specification

Material: Anti-Corrosion Stainless Steel

LCD panel: Size: 17”
Max Resolution: 1280 x 1024
Brightness: 400 cd/m^2
Contrast Ratio: 1000:1
Viewing Angle (H/V): 170'(H)/ 160'(V)
Max Colors: 16.7M, 6 bits + FRC
Option for 1000-nit high brightness display

Touch screen: 5-wire resistive type touch screen monitor
Option for projected capacitive touch screen

System: CPU: 4th generation Core i5-4200U 1.6GHz
Chipset: QM87
Memory: 1 x 4GB DDR3 1366/1600MHz SODIMM\ (Max. 16GB)
Storage: 1 x 64GB SSD, Option for 256GB
Ethernet: Intel Ethernet Controller I211-AT +
Intel Gigabit Ethernet PHY I218-LM

Connectors: Serial Ports: 2 x RS232 (IP67)
USB Ports: 2 x USB (IP67)
Ethernet: 1 x RJ45 GbE LAN (IP67)
Power: 1 x AC Input (IP66)
Buttons: 1 x Power on/off, 1 x Reset button

Power Supply: AC power input
Option for 9-36V DC Input Power consumption: 55W (typ.)

Dimensions: 17.52”(W) x 2.09”(D) x 14.71”(H)

Mounting: VESA mount

Environmental: Operating: -20°C to 60°C (-4°F to 140°F)
Relative humidity: 10% ~ 95%, non-condensing
Full IP66/ IP69K Protection

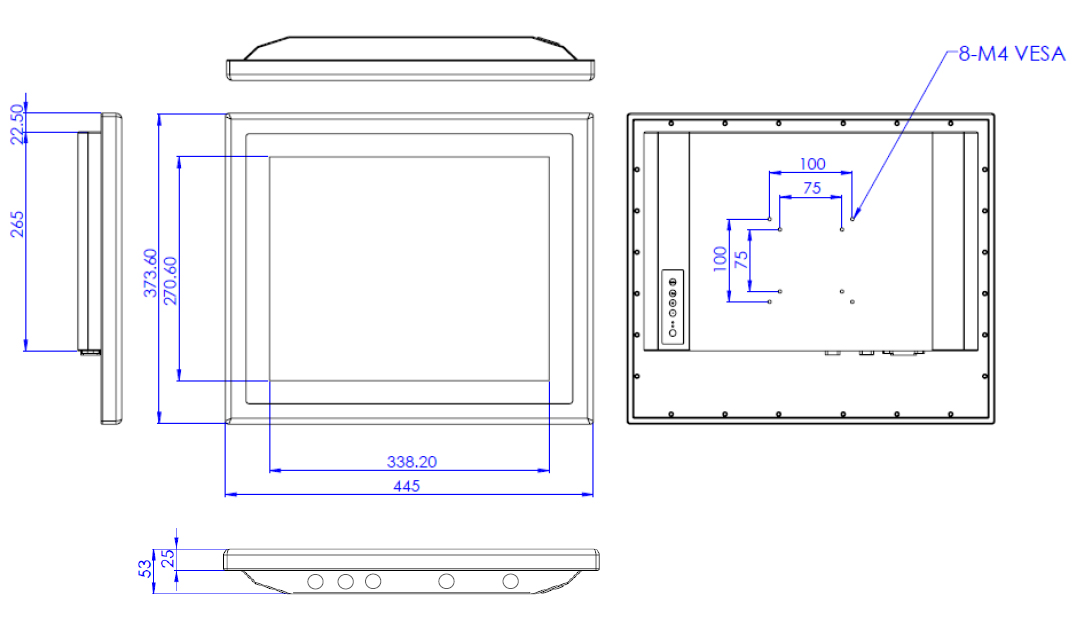

Dimensions

Order Info

PCH8173:
17 inch 1280 x 1024 industrial Panel PC with fully IP66 rated stainless enclosure, 4th generation Haswell Core i5-4200U 1.6GHz embedded computer, on board DDR3 memory, 1 x SSD drive bay, and 5-wire resistive type touch screen monitor.

Price start from:

Downloads

Document

Description

Download Link

PCH8173-SP.pdf

Spec Sheet

Configure Now

PCH8173

Stainless steel Panel PC
Core i5 4200U 2.6GHz dual Core embedded CPU
4GB memory, up to 16GB
1 x 2.5" hard drive or SSD
Fanless embedded computer
17 inch 1280 x 1024 LCD panel
Resistive type touch screen
Fully IP65 rated stainless steel enclosure and front bezel
VESA mount ready
