Fully IP65 rated embedded computer integrated 19 inch touch screen monitor with Atom N270 1.6GHz fan less processor and stainless steel front bezel and enclosure. Excellent for a wide range of industrial automation control application.
PCH7991
- 19 inch 1280 x 1024 350-nit LED-backlight display panel
- Resistive type touch screen monitor
- Atom N270 1.6GHz fan less embedded computer
- 1GB memory & 2.5" SSD or SATA HD storage device
- IP65 rated stainless steel enclosure & front bezel
- 11~32V DC power input with adapter
In stock
SKU
PCH7991
Panel PC - 19 inch 1280 x 1024 resistive type touch monitor, Atom N270 1.6GHz fan less embedded computer, fully IP65 rated waterproof stainless steel enclosure & front bezel.
- Material
- Stainless Steel
- LCD Panel
- Size: 19”
Backlight: LED
Display Color: 262K
Brightness: 350
Display Resolution: 1280 x 1024
Viewing Angle (H/V): 160'(H)/ 160'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-Display
Control Solution, Protective Glass, T-PAL or NVTSC
- OSD Control (On Screen Display)
- Auto-adjustment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall
- Signal Input
- HDMI / DVI-D / VGA / S-VIDEO / RCA
- Connectors
- 1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x RJ-45 GbE LAN
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB ports
- Dimension
- 470mm x 60mm x 388.6mm
18.50" x 2.36" x 15.29"
(W) x (D) x (H)
- Weight
- 24.69 lbs
- Color
- Stainless steel
- Mounting
- VESA 100mm x 100mm
- IP Rating
- IP65
- Power Supply
- DC 11~32V
- Touch Screen
- Option for capacitive or resistive touch screen
- Certificate
- CE, FCC
- Environmental
- Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing
PCH 7991A:
The 19" 1280 x 1024 touch Panel PC comes with resistive-type touch screen, Intel Atom N270 processor.
2.5" SATA2 320GB Industrial HDD with resistive touch, 1GB DDR2 533 MHz memory, ultra slim IP65 rated.
Full solid capacitor motherboard, fanless embedded system, 11~32V DC power input, stainless steel enclosure.
Price start from: $2,335.00
PCH 7991B:
The 19" 1280 x 1024 touch Panel PC comes with resistive-type touch screen, Intel Atom N270 processor.
2.5" SATA 16GB SLC SSD with resistive touch, 1GB DDR2 533 MHz memory, features ultra slim IP65 rated.
Full solid capacitor motherboard, fanless embedded system, 11~32V DC power input, stainless steel enclosure.
Price start from: $2,465.00
Document
Description
Download Link
PCH_7991-data.pdfData Sheet

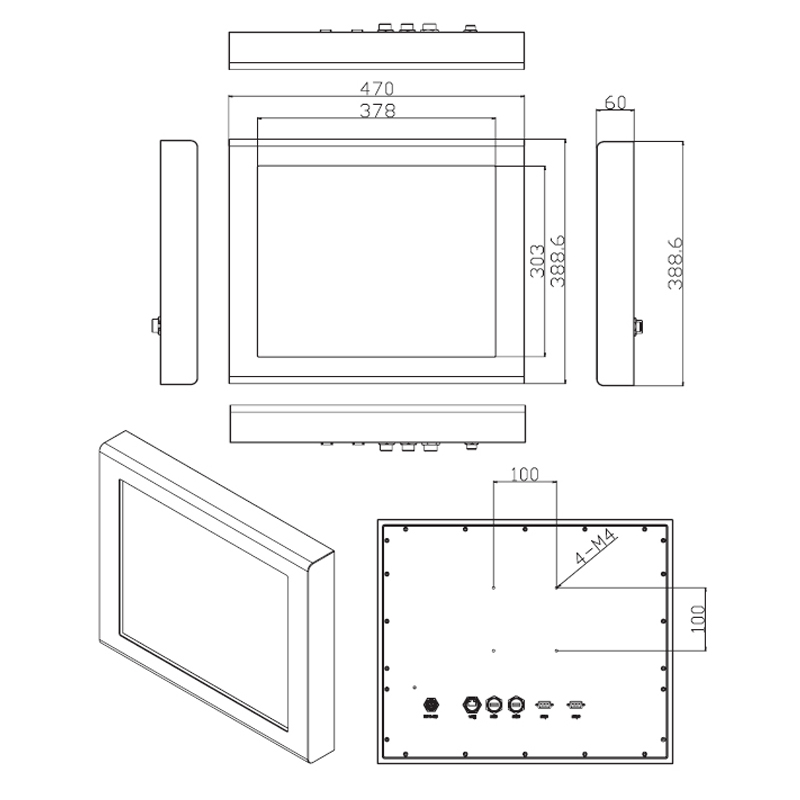

PCH_7991-dim.pdfDimension
PCH7991-UM.pdfUser Manual
