Fully IP65 rated embedded computer integrated 17 inch touch screen monitor with Atom D525 1.66GHz fan less processor and stainless steel full flat front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.
PCH7792
- 17 inch 1280 x 1024 550-nit industrial LCD panel
- Full flat front bezel design
- Overlay resistive type touch screen monitor
- Atom D525 1.8GHz fan less embedded computer
- 2GB memory & 2.5" SSD or SATA HD storage device
- Option for WiFi & Bluetooh function
- Fully IP65 rated stainless steel enclosure and front bezel
- 11~32V DC power input with adapter
In stock
SKU
PCH7792
Panel PC - 17 inch 1280 x 1024 overlay resistive type touch screen monitor, Atom D525 1.8GHz fan less embedded industrial computer & fully IP65 rated waterproof stainless steel enclosure & full flat front bezel.
- Material Stainless Steel
- LCD Panel
- Size: 17”
Backlight: LED
Display Color: 16.7M
Brightness: 550
Display Resolution: 1280 x 1024
Viewing Angle (H/V): 170'(H)/ 160'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-Display
Control Solution, Protective Glass, TV-PAL or NTSC
- OSD Control (On Screen Display)
- Auto-adjustment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall
- Signal Input
- HDMI / DVI-D / VGA / S-VIDEO / RCA
- Connectors
- 1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x Power Button
1 x RJ-45 GbE LAN
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB ports

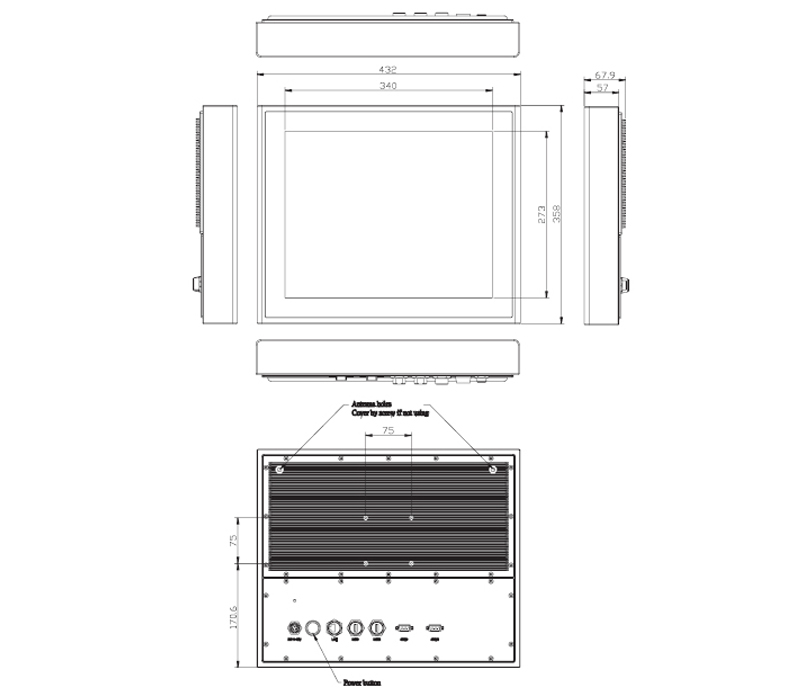

- Dimension
- 432mm x 68.2mm x 358mm
17.01" x 2.68" x 14.09"
(W) x (D) x (H)
- Weight
- 21.60 lbs
- Color
- Stainless steel
- Mounting
- VESA 75mm x 75mm
- IP Rating
- IP65
- Power Supply
- DC 11~32V
- Touch screen
- Option for capacitive or resistive touch screen
- Certificate
- CE, FCC
- Environmental
- Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing
PCH 7792A:
The 17 inch 1280 x 1024 touch panel PC is a full flat bezel that comes with overlay resistive-type touch screen.
2.5 SATA2 320GB Industrial HDD, Atom D525 processor, ultra slim IP65 rated enclosure, 2GB DDR3 800MHz memory.11~32V DC power input with adaptor, stainless steel front enclosure and aluminum heatskin back cover.
Price start from: $2,690.00
PCH 7792B:
The 17 inch 1280 x 1024 touch panel PC is a full flat bezel that comes with overlay resistive-type touch screen.
2.5 SATA 16GB SLC SSD, Wi-Fi and bluetooth, Intel Atom D525 processor, 2GB DDR3 800MHz memory.11~32V DC power input, ultra slim IP65 rated enclosure, stainless steel front and aluminum heatskin back cover.
Price start from: $2,885.00
Document
Description
Download Link
PCH_7792-data.pdfData Sheet
PCH_7792-dim.pdfDimension
