Fully IP65 rated embedded computer integrated 17 inch touch screen monitor with Atom N270 1.6GHz fan less processor and stainless steel front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.
PCH7791
- 17 inch 1280 x 1024 300-nit industrial LCD panel
- Resistive type touch screen monitor
- Atom N270 1.6GHz fan less embedded computer
- 1GB memory, 2.5" SSD or SATA HD storage device
- Fully IP65 rated stainless steel enclosure and front bezel
- 11~32V DC power input with adapter
In stock
SKU
PCH7791
Panel PC - 17 inch 1280 x 1024 resistive type touch screen monitor, Atom N270 1.6GHz fan less embedded computer & fully IP65 rated waterproof rugged stainless steel enclosure & front bezel.
- Material
- Stainless Steel
- LCD Panel
- Size: 17”
Backlight: LED
Display Color: 16.7M
Brightness: 300
Display Resolution: 1280 x 1024
Viewing Angle (H/V): 160'(H)/ 170'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-Display
Control Solution, Protective Glass, TV-PAL or NTSC
- OSD Control (On Screen Display)
- Auto-adjustment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall
- Signal Input
- HDMI / DVI-D / VGA / S-VIDEO / RCA
- Connectors
- 1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x Power Button
1 x RJ-45 GbE LAN
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB ports

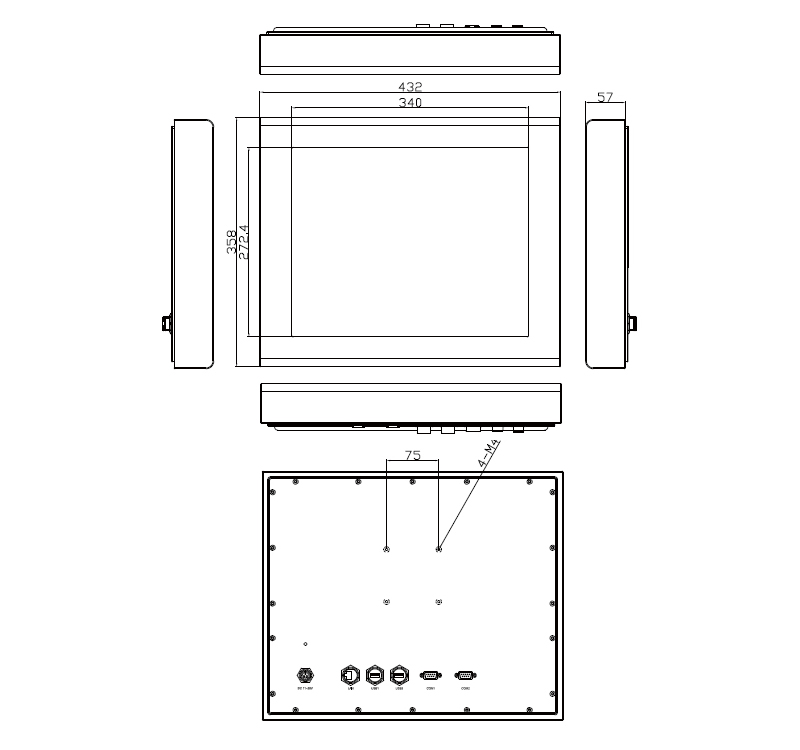

- Dimension
- 432mm x 57mm x 358mm
17.01" x 2.24" x 14.09"
(W) x (D) x (H)
- Weight
- 21.60 lbs
- Color
- Stainless steel
- Mounting
- VESA 75mm x 75mm
- IP Rating
- IP65
- Power Supply
- DC 11~32V
- Touch Screen
- Option for capacitive or resistive touch screen
- Certificate
- CE, FCC
- Environmental
- Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing
PCH 7791A:
The 17" 1280 x 1024 touch fanless panel PC comes with resistive-type touch screen, ultra slim IP65 rated.
2.5" SATA 8GB SLC CF, 1GB DDR2 533 MHz memory, Intel Atom N270 processor, full capacitor motherboard.
Wide work temperature range 11~32V DC power input with adaptor, stainless steel enclosure.
Price start from: $2,185.00
PCH 7791B:
The 17" 1280 x 1024 touch fanless panel PC comes with resistive-type touch screen, ultra slim IP65 rated.
2.5" SATA2 320GB Industrial HDD, 1GB DDR2 533 MHz memory, Atom N270 processor, full capacitor motherboard.
Wide work temperature range 11~32V DC power input with adaptor, stainless steel enclosure.
Price start from: $2,170.00
Document
Description
Download Link
PCH_7791-data.pdfData Sheet
PCH_7791-dim.pdfDimension
PCH7791-UM.pdfUser Manual
