Fully IP65 rated embedded computer integrated 15 inch touch screen monitor with Atom N525 1.8GHz fan less processor and stainless steel full flat front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.
Loading...
Panel PC PCH3991 Front View

PCH3991

Panel PC PCH7593 Front View

PCH7593

PCH7592

  • 15 inch 1024 x 768 ultra high resolution display
  • Features full flat bezel design
  • Stainless Steel Workmanship, Sturdy and Reliable
  • Eco-Friendly, Low Power Consumption
  • Supports totally IP65, great thermal design
  • Supports ressistive or GFG touch for option
  • Wide working temperature and range DC 11~32V input
In stock
SKU
PCH7592
Email
Panel PC - 15 inch 1024 x 768 projective capacitive type touch screen monitor, Atom D525 1.8GHz fan less embedded computer & fully IP65 rated waterproof stainless steel enclosure & full flat front bezel.
Material
Stainless Steel
LCD Panel
Size: 15”
Backlight: LED
Display Color: 262K
Brightness: 400
Display Resolution: 1024 x 768
Viewing Angle (H/V): 160'(H)/ 140'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-display
Control solution, Protective Glass, TV-PAL or NTSC
OSD Control (On Screen Display)
Auto-adjustment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall
Signal Input
HDMI / DVI-D / VGA / S-VIDEO / RCA
Connectors
1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
1 x RJ-45 GbE LAN
2 x USB ports

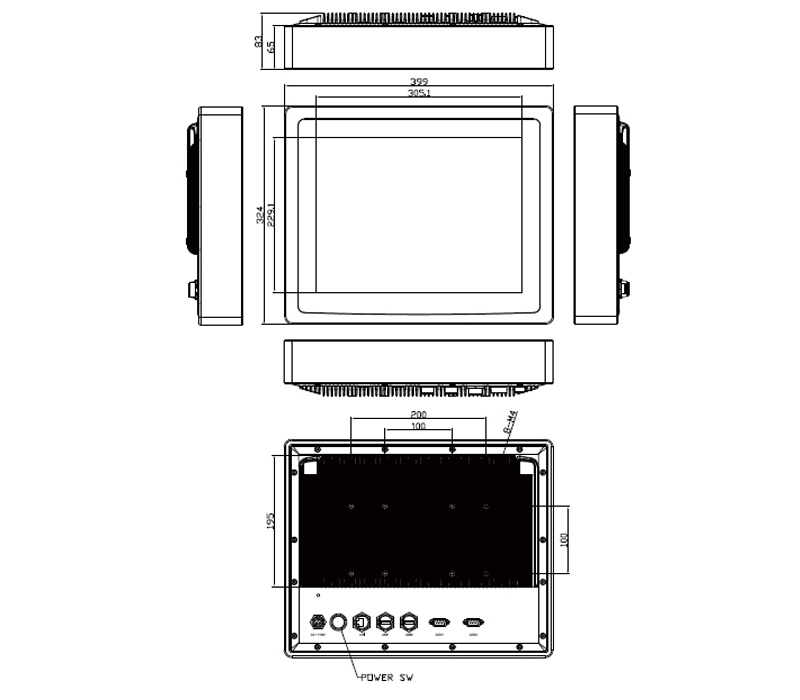

Dimension
399mm x 64.3mm x 324mm
15.71" x 2.53" x 12.76"
(W) x (D) x (H)
Weight
15.22 lbs
Color
Stainless steel
Mounting
VESA 100mm x 100mm
VESA 200mm x 100mm
IP Rating
IP65
Power Supply
DC 11~32V
Touch Screen
Option for capacitive or resistive touch screen
Certificate
CE, FCC
Environmental
Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing

PCH 7592A:15" 1024 x 768 full flat bezel design stainless steel touch panel PC comes with resistive-type touch screen.
2.5" SATA2 320GB Industrial HDD with projective capacitive touch, Intel Atom D525 processor, 2GB DDR3 800MHz memory.
Fanless embedded system, ultra slim IP65 rated enclosure, full flat bezel design and made of great stainless steel workmanship.
11~32V DC power input with adaptor, stainless steel front and aluminum die-casting.

Price start from: $2,765.00

PCH 7592B:
15" 1024 x 768 full flat bezel design stainless steel touch panel PC comes with resistive-type touch screen.
2.5" SATA 16GB SLC SSD, Wi-Fi and blue tooth with projective capacitive touch, Intel Atom D525 processor, 2GB DDR3 800MHz memory.
Fanless embedded system, ultra slim IP65 rated enclosure, full flat bezel design and made of great stainless steel workmanship.
11~32V DC power input with adaptor, stainless steel front and aluminum die-casting.

Price start from: $2,765.00

Document
Description
Download Link
file iconPCH_7592-data.pdf
Data Sheet
file iconPCH_7592-dim.pdf
Dimension
  • PCH7592A
    Panel PC Atom D525 Dual Core 1.8GHz CPU
    2GB DDR3 memory & 320GB 2.5" HD
    15" 1024 x 768 resistive type touch screen
    IP65 rated fully enclosure
    IP65 rated front stainless steel bezel
    VESA mount ready
    Starting at:
    $2,765.00
  • PCH7592B
    Panel PC Atom D525 Dual Core 1.8GHz CPU
    2GB DDR3 memory & 16GB SLC 2.5" SSD
    15" 1024 x 768 projective capacitive type touch screen
    WiFI and blue-tooth
    IP65 rated fully enclosure
    IP65 rated front stainless steel bezel
    VESA mount ready
    Starting at:
    $2,950.00
PCH7592A
PCH7592A
$2,765.00
PCH7592B
PCH7592B
$2,950.00

Loading...Please Wait

LCD Panel and Touch Screen:
  The 15 inch (1024 x 768) is a industrial-grade panel pc with SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire with RS-232 interface flat touch window. The reisitive touch screen provides protection for the LCD panel and a flat glass bezel with touch controller IC is on board. The panel pc comes with IP65 rated front stainless bezel and metal casing.

On Board System Board:
  The embedded fanless system board comes with Intel Atom D525 processor. It comes with the features of the standard mother board and the additional function for industrial application. It supports DDR 3 800MHz moudules for up to 2GB, 2 x serial and 2 x USB ports and one RJ-45 port. The working temperature range is from 0°C to 50 °C.

Input/Output Connectors:
 The system comes with 2 x USB,  1 x power input & 1 x CF internal slot.

Expansion:
  We provide one internal mini PCI expansion slot.

Power Supply:
  The 20W power adapter input is 11~32V DC and it comes with lockable power jack and external 110/220VAC 90W power adapter.

Mounting:x 1
  The casing comes with a standard 100mm x 100mm and 200mm x 100mm VESA mounting holes.

References
What is IP rating?
IP rating refers to the degree of protection against water and dust provided by a computer's enclosure.

What is projected capacitive touch screen?
Projected capacitive touch screen is a multi-touch solution capable to support 10 simultaneous touch points and is extremely durable in most environments.

What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.
