Fully IP65 rated embedded computer integrated 15 inch touch screen monitor with Atom N270 1.6GHz fan less processor and stainless steel front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.
PCH7591
- 15 inch 1024 x 768 Ultra High Resolution display
- Slim size, no external heatsink
- Eco-Friendly, Low Power Consumption
- All solid capacitor motherboard
- Supports Ressistive or GFG touch for Option
- Wide Working Temperature and Range DC 11~32V Input
In stock
SKU
PCH7591
Panel PC- 15 inch 1024 x 768 touch screen monitor, Atom N270 fan less embedded computer, Fully IP65 rated stainless front bezel and aluminum metal die-casing, 1GB DDR2 533MHz memory, stainless steel enclosure.
- Material
- Stainless Steel
- LCD Panel
- Size: 15”
Backlight: LED
Display Color: 262K
Brightness: 350
Display Resolution: 1024 x 768
Viewing Angle (H/V): 120'(H)/ 100'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-Display
Control Solution, Protective Glass, TC-PAL or NTSC
- OSD Control (On Screen Display)
- Auto-adjustment for brightness, contrast, phase & clock, color, horizontal-position, vertical - position, auto-tune & recall
- Signal Input
- HDMI / DVI-D / VGA / S-VIDEO / RCA
- Connectors
- 1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x RJ-45 GbE LAN
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB ports

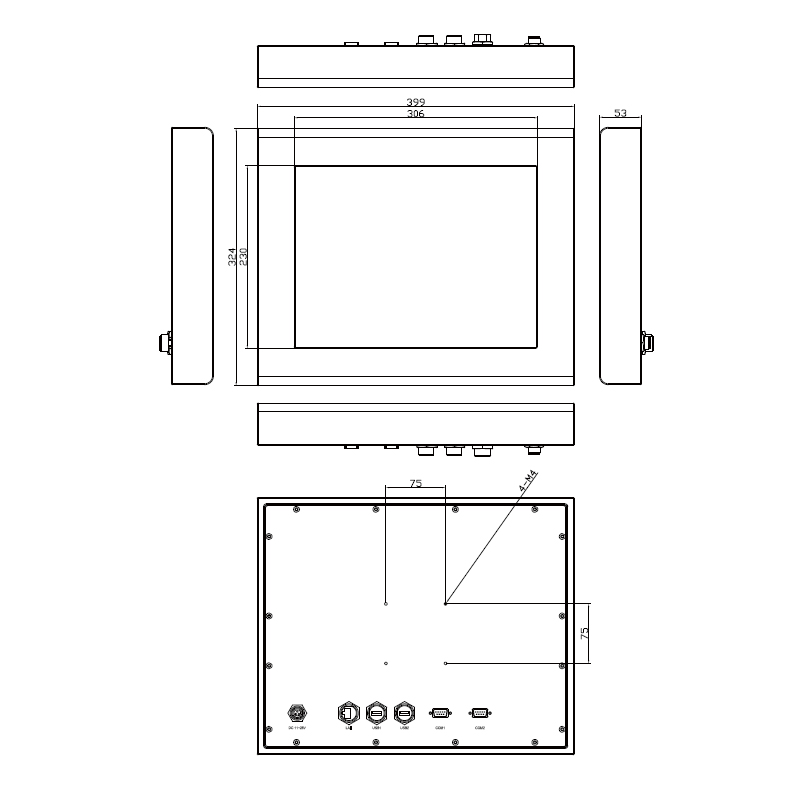

- Dimension
- 399mm x 53mm x 324mm
15.71" x 2."08 x 12.76"
(W) x (D) x (H)
- Weight
- 15.22 lbs
- Color
- Stainless steel
- Mounting
- VESA 75mm x 75mm
- IP rating
- IP65
- Power supply
- DC 11~32V
- Touch screen
- Option for capacitive or resistive touch screen
- Certificate
- CE, FCC
- Environmental
- Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing
PCH 7591A:
The 15" 1024 x 768 touch panel PC comes with resistive-type touch screen, Intel Atom N270 processor.
2.5" SATA 8GB SLC SSD, 1GB DDR2 533 MHz memory, fanless embedded system, ultra slim IP65 rated.
Full solid capacitor motherboard, 11~32V DC power input with adaptor, stainless steel enclosure.
Price start from: $2,025.00
PCH 7591B:
The 15" 1024 x 768 touch panel PC comes with resistive-type touch screen, Intel Atom N270 processor.
2.5" SATA2 320GB Industrial HDD, 1GB DDR2 533 MHz memory, fanless embedded system, ultra slim IP65 rated.
Full solid capacitor motherboard, 11~32V DC power input with adaptor, stainless steel enclosure.
Price start from: $2,010.00
Document
Description
Download Link
PCH_7591-data.pdfData Sheet
PCH_7591-dim.pdfDimension
PCH7591-UM.pdfUser Manual
