Panel PC comes with 15-inch 1024x768 250-nit LCD, 5-wire resistive type touch screen, Atom N270 1.6 GHz fan less embedded system, fully IP65 rated rugged metal enclosure & stainless steel bezel for industrial HMI computer applications.
Loading...
Panel PC PCH5121 Front View

PCH5121

Panel PC PCH6517 Front View

PCH6517

PCH6515

  • 15-inch 1024 x 768 industrial LCD panel
  • Resistive type touch screen monitor
  • Atom N270 1.6GHz fan less embedded computer
  • Single Realtek RTL8111B Gigabit Ethernet
  • Integrated VGA, LVDS/CRT and chrontel chipset
  • IP65 rated stainless steel front bezel and metal casing
$2,415.00
Availability: In stock
SKU
PCH6515
Email
Panel PC - 15-inch 1024 x 768 touch screen, Atom N270 1.6GHz fan less industrial embedded computer, fully IP65 rated stainless steel enclosure & front bezel.
Material
Stainless steel
LCD Panel
Size: 15 ”
Max. Resolution: 1024 x 768
Brightness: 250
Contrast Ratio: 500:1 (typ.)
Viewing Angle (H/V): 70'(H)/ 60'(V)
Pixel Pitch (mm): 0.297(H) x 0.297(V)
Backlight MTBF: 50000 hrs
Colors: 16.2M
Main System
CPU: AMD Geode LX 800 (500Mhz)
Chipset: AMD LX800 + AMD CS5536
RAM: 1 x 200-pin SO-DIMM socket, supporting DDR 333/400MHz modules for up to 1GB
SSD: CF Type ll
HDD Driver Bay SSD: 1 x 2.5” IDE HDD Bay
Touch screen
Resistive type 5-wire with RS-232 interface
Connectors
1 x RS-232
2 x RF-45 for 10/100Mbps LAN
2 X USB port
1 X VGA Port
Line-out
1 X PS/2 mouse and keyboard interface
1 x 12VDC input Power jack
1 x Power Switch
Power supply
60W Adapter
AC Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Consumption: 14W
Mounting
Panel, Wall, Rack, and Arm & Stand VESA 100mm x 100mm
Color
Silver
Environmental
Temperature Operating:
-10 to 50 degree C
Storage: -20 to 60 degrees C
Vibration: 5-17Hz, 0.1 double amplitude displacement 17-640Hz 1.5G acceleration peak to peak
Shock: 10G acceleration part to part (11ms)
Net Weight
1.5 Kg
Dimension
183mm(W) x 62.6mm(D) x 143mm(H)

PCH 6515:
15" 1024x768 touch Panel PC comes with resistive-type touch screen, Atom N270 1.6GHz fanless embedded system, 80GB HD, IP65rated enclosure and 110/220 VAC adapter


Price start from: $2,415.00
Document
Description
Download Link
file iconPCH_6515-data.pdf
Data Sheet
file iconPCH_6515-dim.pdf

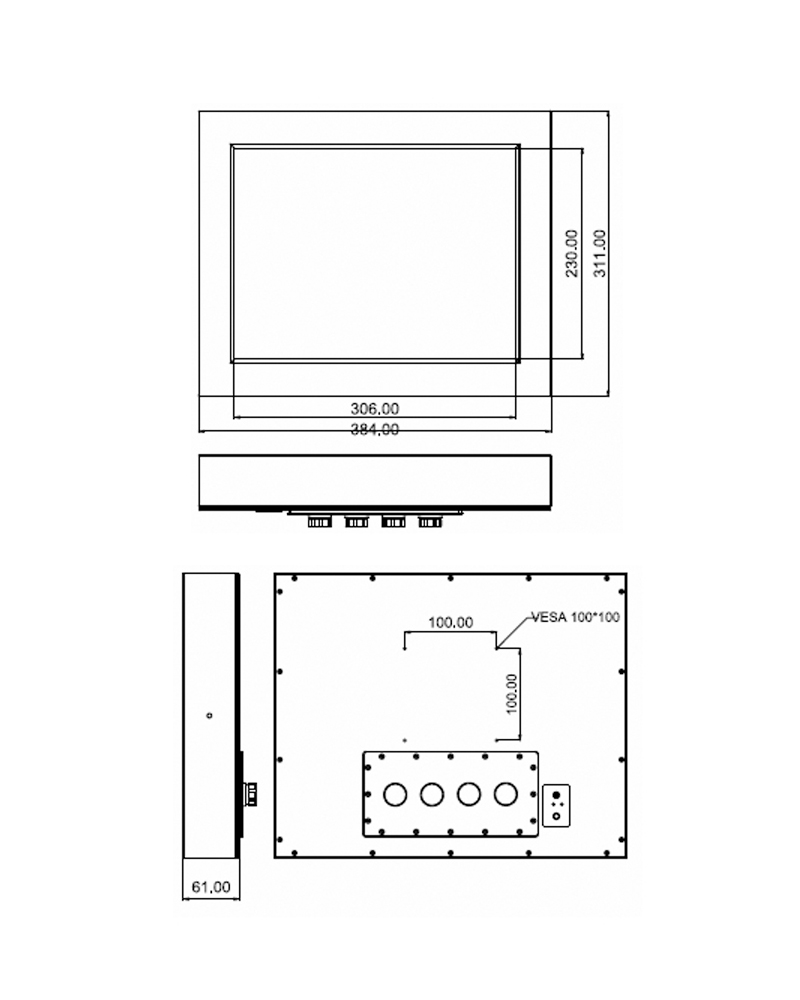

Dimension
file iconPCH_6515-um.pdf
User Manual
  • PCH6515
    Panel PC Atom N270 1.6GHz CPU
    Fanless embedded computer
    15" 1024 x 768 touch screen
    IP65 rated fully enclosure
    IP65 rated front stainless steel bezel
    VESA mount readyÿ
    Starting at:
    $2,415.00
PCH6515
$2,415.00

LCD Panel and Touch Screen:
  The 15 inch (1024 x 768) is a industrial-grade panel pc with SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire with RS-232 interface flat touch window. The reisitive touch screen provides protection for the LCD panel and a flat glass bezel with touch controller IC is on board. the panel pc comes with IP65 rated front stainless bezel and metal casing.

On Board System Board:
  The embedded fanless system board comes with Intel Atom N270 1.6GHz processor, it comes with the features of the standard mother board and the additional function for industrial application. It supports DDR 2 400/533MHz moudules for up to 1GB, 2 x serial and 6 x USB ports and one RJ-45 port. The working temperature range is from 0°C to 45 °C.

Input/Output Connectors:
The system comes with 2 x USB, 1 x RS232, 1 x power input & 1 x PS/2 mouse and keyboard interface.

Expansion:
We provide one internal mini PCI expansion slot.

Power Supply:
The 20W power adapter input is 12V DC and it comes with lockable power jack and external 110/220VAC 90W power adapter.

Mounting:x 1
The casing comes with a standard 100mm VESA mounting holes.
