Panel PC integrated 12-inch 1024 x 768 500-nit LCD monitor, resistive type touch screen, Atom N270 1.6 GHz fan less embedded computer, fully IP67 rated rugged aluminum die casting enclosure & IP67 waterproof lockable I/O for industrial HMI computer applications.
Loading...
Panel PC PC6415 Front View

PC6415

Panel PC PCH5121 Front View

PCH5121

PCH5120

  • 12.1-inch SXGA LCD with LED back light
  • 500 nits LCD with resistive-type touch screen
  • Atom N270 1.6GHz fan less embedded computer
  • IP67 fully enclosed aluminum casting enclosure
  • Ip67 waterproof loackable I/O
  • Built-in internal Wifi antenna
  • 2.5” SATA HD or Compact-flash socket
$1,830.00
Availability: In stock
SKU
PCH5120
Email
Panel PC - 12-inch 1024 x 768 resistive type touch screen, Atom N270 1.6 GHz fan less embedded industrial computer & fully IP67 rated rugged metal enclosure & front bezel.
Material
Aluminum front panel with heavy duty steel chassis
LCD Panel
Size: 12.1”
Max. Resolution: 1024 x 768
Brightness: 500
Contrast Ratio: 700:1
Viewing Angle (H/V): 160'(H)/ 160'(V)
Pixel Pitch (mm): 0.3075(H) x 0.3075(V)
Backlight MTBF: 50000 hours
Colors: 16.2 M
Main System
CPU: Intel Atom N270 1.6GHz (533Mhz)
Chipset: Intel 945GSE+ICH7M
Memory Slot: one 400/533MHz DDR2 SO-DIMM(Max. 2GB)
HDD Driver Bay SSD: 1 x 2.5-inch SATA HDD bay
SSD Inerface: 1 x CF Type II
Connectors
1 x Power adapter
1 x two USB
1 x Audio lineout
1 x RS-232/422/485
1 x RS-232
1 x GbE LAN
Touch Screen
Resistive type 5-wire with RS-232 interface
Expansion Slot
1 x Wireless LAN Module
(Internal PCIe mini card interface)
Power supply
9~28VDC, 33W power adapter
(Optional power supply 60W power adapter,
Input: 90VAC ~264VAC, 50/60Hz
Output:12VDC)
Mounting
Panel, Rack, Stand and Arm VESA 100mm x 100mm
Certificate
CE, FCC, CB, CCC, DNV
Color
Silver
Environmental
Temperature
Operating:
-10 to 50 degree C Storage: -20 to 70 degrees C
Humidity: 30% to 90% non condensing
Vibration:
5~17Hz, 0.1" double amplitude displacement
17~640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration part to part, 11ms duration
Net Weight
4.2Kg

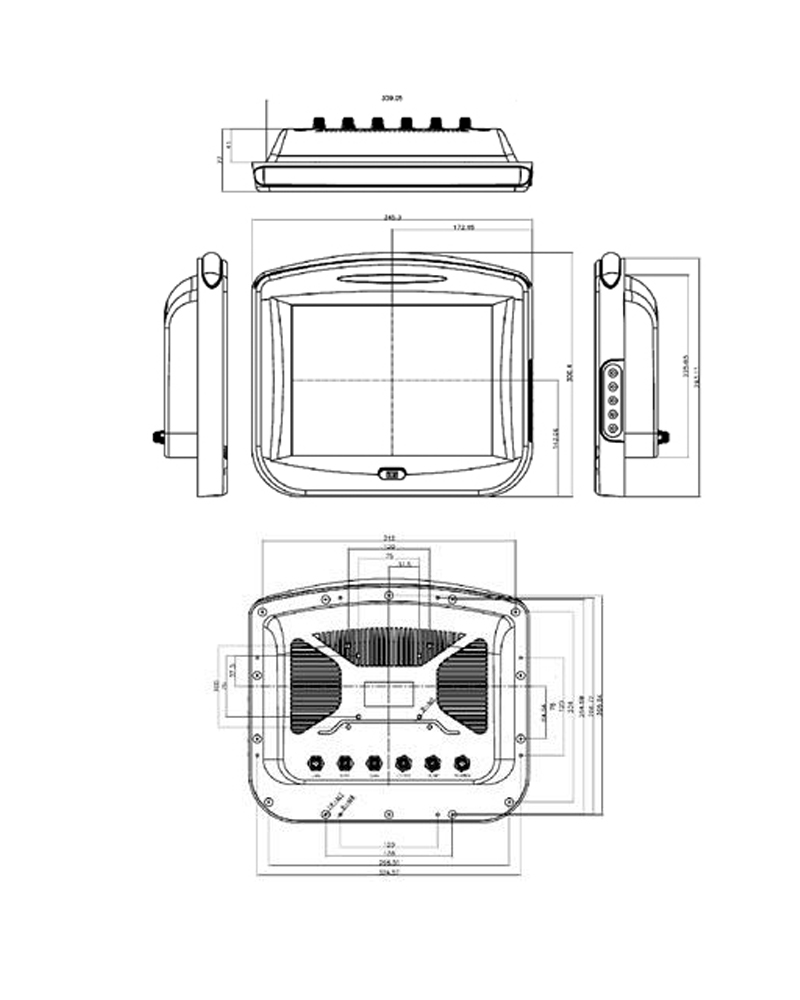

Dimension
345.3mm(W) x 77mm(D) x 300.4mm(H)

PCH 5120:
12" 1024x768 touch Panel PC comes with resistive-type touch screen, Atom N270 1.6GHz fanless embedded system, CF card, IP67 rated enclosure and 12VDC power input


Price start from: $1,830.00
Document
Description
Download Link
file iconPCH_5120-DATA.pdf
Data Sheet
file iconPCH_5120-dim.pdf
Dimension
file iconPCH_5120-um.pdf
User Manual
  • PCH5120
    Panel PC Atom N270 1.6 GHz CPU
    Fanless embedded computer
    12" 1024x768 touch screen
    IP67 rated fully rugged metal casing
    IP67 rated front bezelÿ
    Starting at:
    $1,830.00
PCH5120
$1,830.00

LCD Panel and Touch Screen:
  The 12.1 inch 500-nits 1024x768 is an industrial panel PC with an SXGA. The resistive-type touch screen is mounted on the front of the LCD panel with a 5-wire and an RS-232 interface. The resistive touch screen provides protection for the LCD panel and a flat glass bezel; touch controller IC is onboard. It comes with an IP67 compliant front bezel and an IP67 fully-enclosured aluminum die casting enclosure.

Motherboard:
  The industrial LCD panel PC comes with an Atom N270 1.6GHz processor, it comes with the features of a standard motherboard and the additional functions for industrial applications. It supports DDR2 400/533MHz SO-DIMM moudules (Max. 2GB), 2 x USB ports, 1 x RS-232, 1 X rs-232/422/485 and one VGA port. The working temperature range is from -10°C to 50°C.

Input/Output Connectors:
 The system comes with 1 x 2 USB, 1 x RS232, 1 x power input & 1 x CAN bus and Audio line out. All the I/O port comes with IP67 waterproof lockable I/O connector.

Expansion:
 We provide one Wireless LAN Module (Internal PCIe mini card interface).

Power Supply:
 The 60W power adapter input is a 9~28V DC and it comes with a 5-pin lockable power jack. The system power consumption is 33W.

Mounting:
 Pc can be panel, rack, stand and arm VESA mounted (100mm x 100mm).
