Water-proofed, Fully IP65 rated embedded computer integrated 15 inch touch screen monitor with Atom Z510P 1.1GHz fan less processor and stainless steel front bezel and enclosure. Excellent for a wide range of industrial automation control application.
Loading...
Panel PC PCH7991 Front View

PCH7991

Rackmount Computer RMC8408 Front View

RMC8408

PCH3598

  • 15 inch 1024 x 768 350-nit LCD display
  • Resistive type touch screen monitor
  • Z510P 1.10GHz fan less industrial embedded computer
  • 1GB memory & 2.5" SATA HD storage device
  • Fully IP65 rtaed stainless steel enclosure & front bezel
  • 9~32V DC power input with adapter
$2,050.00
Availability: In stock
SKU
PCH3598
Email
Panel PC - 15 inch 1024 x 768 resistive type touch screen monitor, Atom Z510P 1.1GHz fan less industrial embedded computer, fully IP65 rated waterproof stainless steel enclosure & front bezel.
Material
Stainless Steel enclosure and front bezel
LCD Panel
Size: 15”
Backlight: LED
Display Color: 16.2M
Brightness: 350
Display Resolution: 1024 x 768
Viewing Angle (H/V): 125'(H)/ 140'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen type (resistive) MCS Multi-Display
Control Solution, Protective Glass, TC-PAL or NTSC
Embedded computer
Z510P 1.10GHz single core 32-bit fan less embedded board
US15WP system chip-set
1GB DDR2 memory
2.5" SATA HD
Signal Input
VGA
Connectors
1 x 2.5" SATA HDD
1 x DC Power Input
1 x RJ-45 LAN ports
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB port mSATA support

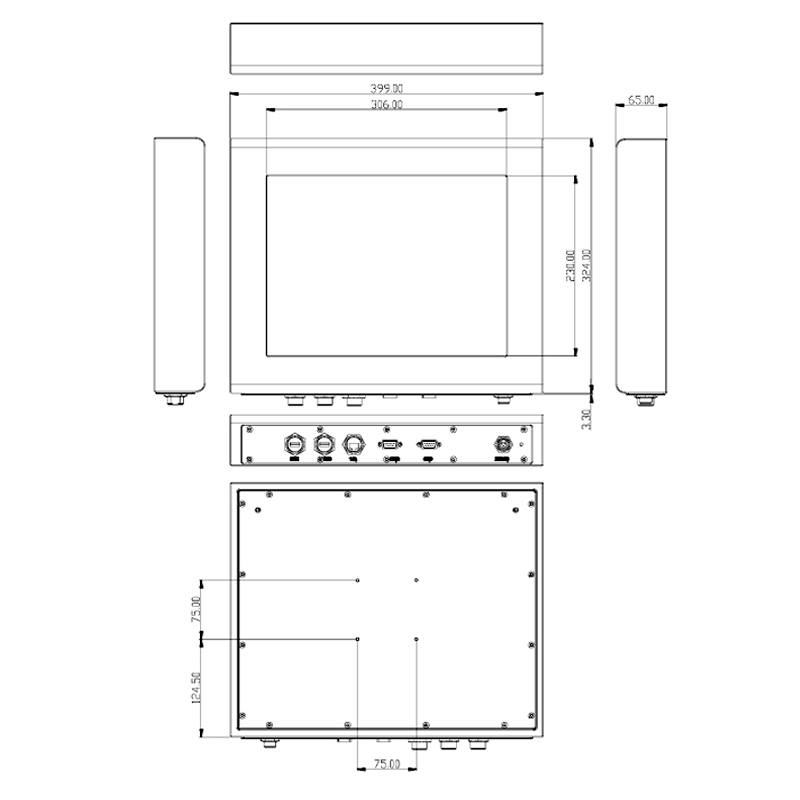

Dimension
399mm(W)x 65mm(D)x 328mm(H)
15.70"(W)x 2.56"(D)x 12.91"(H)
Weight
15.22 lbs
Color
Stainless steel
Mounting
VESA 75mm x 75mm
IP Rating
Fully IP65 rated enclosure and front bezel
Power Supply
DC 9~32V
Touch Screen
Option for capacitive or resistive touch screen
Certificate
CE, FCC
Environmental
Operating Temperature: 0 to 50 degree C
Storage Temperature: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing

PCH 3598:
The 15" 1024 x 768 touch fanless panel PC comes with resistive-type touch screen, Atom Z510P processor.
2.5" SATA2 320GB Industrial HDD, resistive touch, I/O at bottom side, 1GB DDR2 400MHz memory, ultra slim IP65 rated.
Full solid capacitor motherboard, ultra low power consumption, fanless embedded system, and stainless steel enclosure.

Price start from: $2,050.00

Document
Description
Download Link
file iconPCH_3598-data.pdf
Data Sheet
file iconPCH_3598-dim.pdf
Dimension
file iconPCH3598-UM.pdf
User Manual
  • PCH3598
    Panel PC Atom Z510P 1.10 GHz CPU
    Fanless embedded computer
    15" 1024 x 768 resistive type touch screen
    320GB HD
    IP65 rated fully rugged metal casing
    IP65 rated front bezel
    Starting at:
    $2,050.00
PCH3598
$2,050.00

LCD Panel and Touch Screen:
  The 15 inch (1024 x 768) is an industrial-grade panel pc with an SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel is a 5-wire with an RS-232 interface flat touch window. The resitive touch screen provides protection for the LCD panel and a flat glass bezel with a touch controller IC onboard. The panel PC comes with an IP65 rated front stainless bezel and metal casing.

Onboard System Board:
  The embedded fanless system board comes with an Intel Atom Z510P fanless panel PC processor. It comes with the features of the standard motherboard and the additional function for industrial application. It supports DDR 2 533MHz moudules with up to 1GB, 2 x serial and 2 x USB ports and one RJ-45 port. The working temperature range is from 0°C to 50°C.

Input/Output Connectors:
 The system comes with 2 x USB, 1 x power input, 1 x RJ-45 LAN ports.

Expansion:
  We provide one internal mini PCI expansion slot.

Power Supply:
  The 20W power adapter input is a 9~32V DC and it comes with a lockable power jack and an external 110/220VAC 90W power adapter.

Mounting:
  The casing comes with a standard 75mm x 75mm VESA mounting holes.

References
What is IP rating?
IP rating refers to the degree of protection against water and dust provided by a computer's enclosure.

What is projected capacitive touch screen?
Projected capacitive touch screen is a multi-touch solution capable to support 10 simultaneous touch points and is extremely durable in most environments.

What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.
