Water splash proofed, all-in-one embedded computer integrated 15 inch touch screen monitor with Atom D525 1.8GHz ultra low power processor and IP65 rated stainless steel front bezel and IP42 rated back enclosure. It designed to be working under harsh environment.
Loading...
Monitor keyboard drawer KDW81712 Front View

KDW81712

Panel PC PCH3782 Front View

PCH3782

PCH3582

  • 15 inch 1024 x 768 industrial monitor
  • Resistive type touch screen monitor
  • Atom D525 1.8Ghz Dual-Core fan less embedded computer
  • 2GB memory & 2.5" SATA HD storage device
  • Stainless steel front bezel and aluminum heat sink back cover
  • IP65 rated front bezel and IP42 rated back enclosure
  • 11~32V DC power input with adapter
$2,235.00
Availability: In stock
SKU
PCH3582
Email
Panel PC - 15 inch 1024 x 768 resistive type touch screen monitor, Atom D525 1.8GHz fan less industrial embedded computer, IP65 rated stainless steel front bezel & IP42 rated back enclosure.
Material
Stainless steel
LCD Panel
Size: 15 inch
Max. Resolution: 1024 x 768
Brightness: 400
Viewing Angle (H/V): 160'(H)/ 145'(V)
Backlight MTBF: 50000 hrs
Colors: 262K
Main System
CPU: Intel Atom D525 1.8GHz
Chipset: Intel ICH8M
Memory: 1 x 204 Pin DDR3 800MHz SODIMM slot, default 2GB
Ethernet: 2 x RJ45 LAN
USB: 4 x USB 2.0
SATA: 1 x 2.5” SATA HDD space
HDD drive bay: 1 x 2.5-inch 80GB
SSD Inrerface: 1 x CF slot (Internal), 1 x CF slot external (option)
Touch Screen
Resistive type touch screen USB interface
Power supply DC 11~32V adapter with external AC power adapter
Connectors
1 x DB-9 RS-232
1 x DB-9 RS-422/485 (default PS-485)
2 x RJ-45 LAN
4 X USB 2.0
1 x 7 Pin terminal block 2n/2out/1ground/switch
1 x 3 Pin DC power input connector
Operating System
Window XP Professional, XP Embedded, Windows Embedded Standard 7
Mounting
100 x 100 (mm) VESA mount
Color
Silver

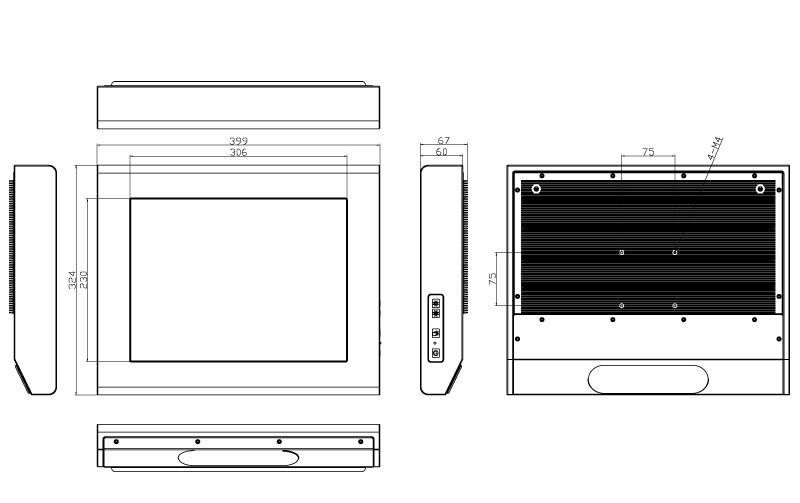

Dimension
399mm(W) x 67mm(D) x 324mm(H)
Environmental
Temperature Operating:
0 to 50 degree C
Storage: -30 to 80 degrees C
Humidity: 10% to 90% non condensing
Certification
CE, FCC Class A

PCH 3598:
The 15" 1024 x 768 fanless panel PC comes with 1 2.5-inch 320GB drive bay, silver color.

Price start from: $2,235.00

Document
Description
Download Link
file iconPCH3582-DATA.pdf
Data Sheet
file iconPCH3582-DIM.pdf
Dimension
file iconPCH3582-UM.pdf
User Manual
  • PCH3582
    Panel PC Atom D525 1.8GHz Dual Core CPU
    2GB DDR3 memory & 320GB HD
    15" 1024 x 768 resistive type touch screen
    IP65 rated front bezel
    IP42 rated back enclosure
    stainless steel bezel
    VESA mount ready
    Starting at:
    $2,235.00
PCH3582
$2,235.00

LCD panel and touch screen:
 The 15 inch (1024 x 768) is an industrial panel PC comes with an industrial LCD monitor and touchscreen panel. The resistive-type touch screen panel is mounted on the front of the LCD panel. The interal is connected with a USB interface flat cable to internal Atom fanless embedded computer.  The resistive type touchscreen panel provides additional protection for the LCD panel itself.
On board system board:
 The embedded fanless board comes with an Atom D525 1.8GHz Dual-Core processor, 1x SODIM DDR3 memory sokcet, Dual LAN ports & 4 x USB ports. The working temperature range is from 0°C to 50°C.

Construction:
 The panel PC comes with an IP65 rated stainless stell front bezel. IP42 rated back enclosure with an aluminum heat sink and IP65 rated except for the I/O port side.

Storage device:
 We provide one 2.5" SATA HDD bay or SSD with a CF socket for internal storage device.

Power Supply:
 The panel PC comes with an 11~32VDC power input with a external VAC power adapter.

Mounting:
 The back enclosure comes with a 100mm VESA mounting holes for a standard VESA mount.
